Description

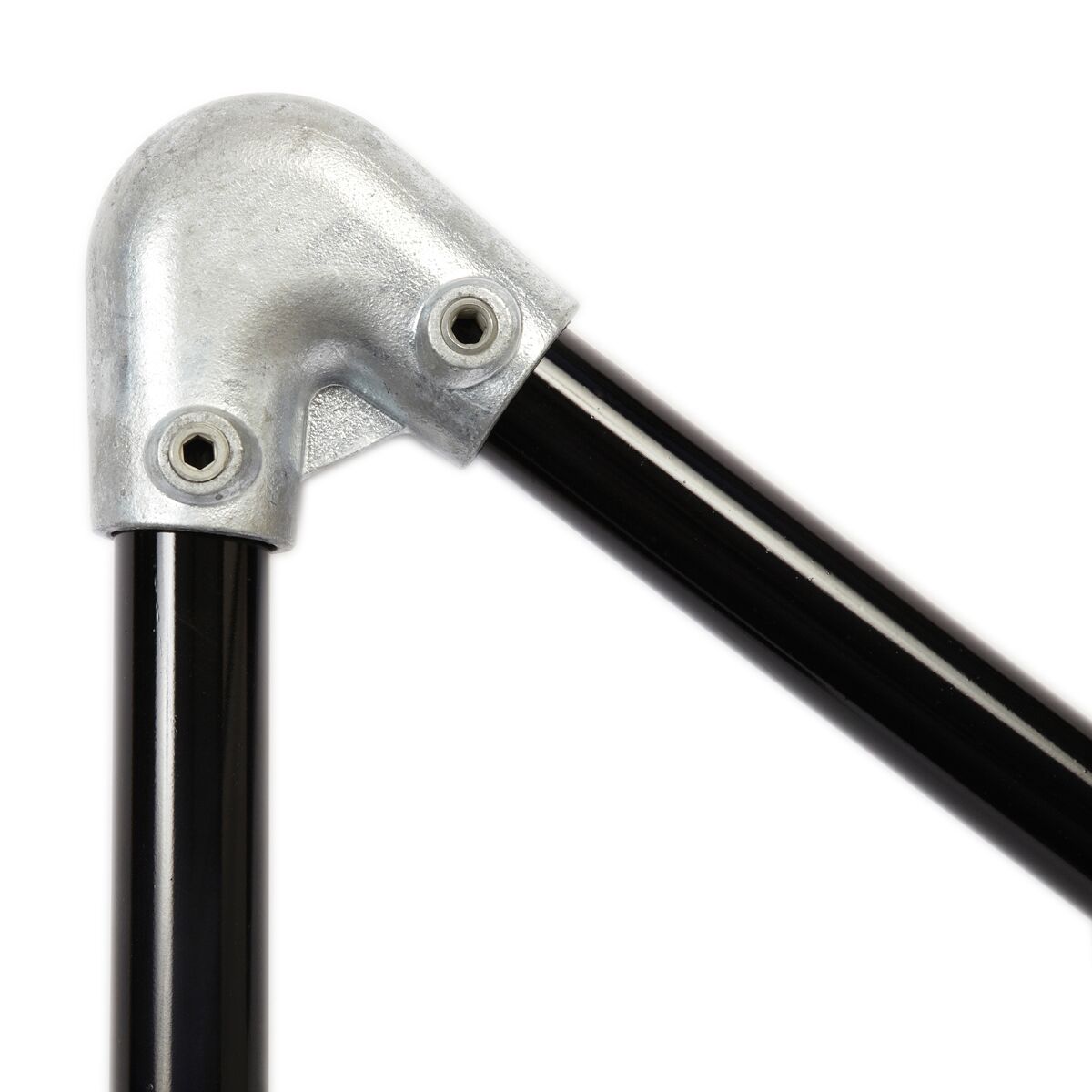

The C72 Acute Angle Elbow joins a sloping rail to an end post on a staircase of 30° to 45°. The rail comes down the slope, the post stands vertical, and the fitting makes the acute joint between them.
Use it with the C29 at intermediate posts. For 11° to 30° stairs use the C72A.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting

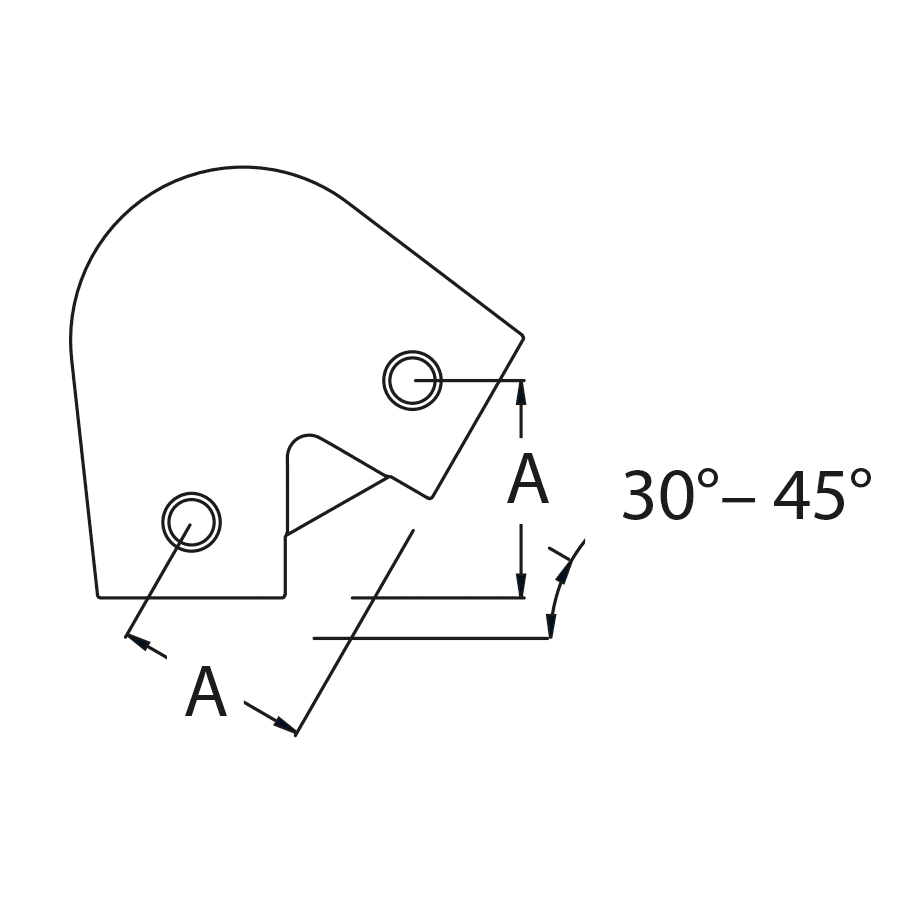

- Dimensions and weight: available on request from our technical team
Use with
C72A Acute Angle Elbow (11° to 30°), C29 Adjustable Short Tee (30° to 60°), C245 Three Socket Tee (30° to 45°)
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
