Description

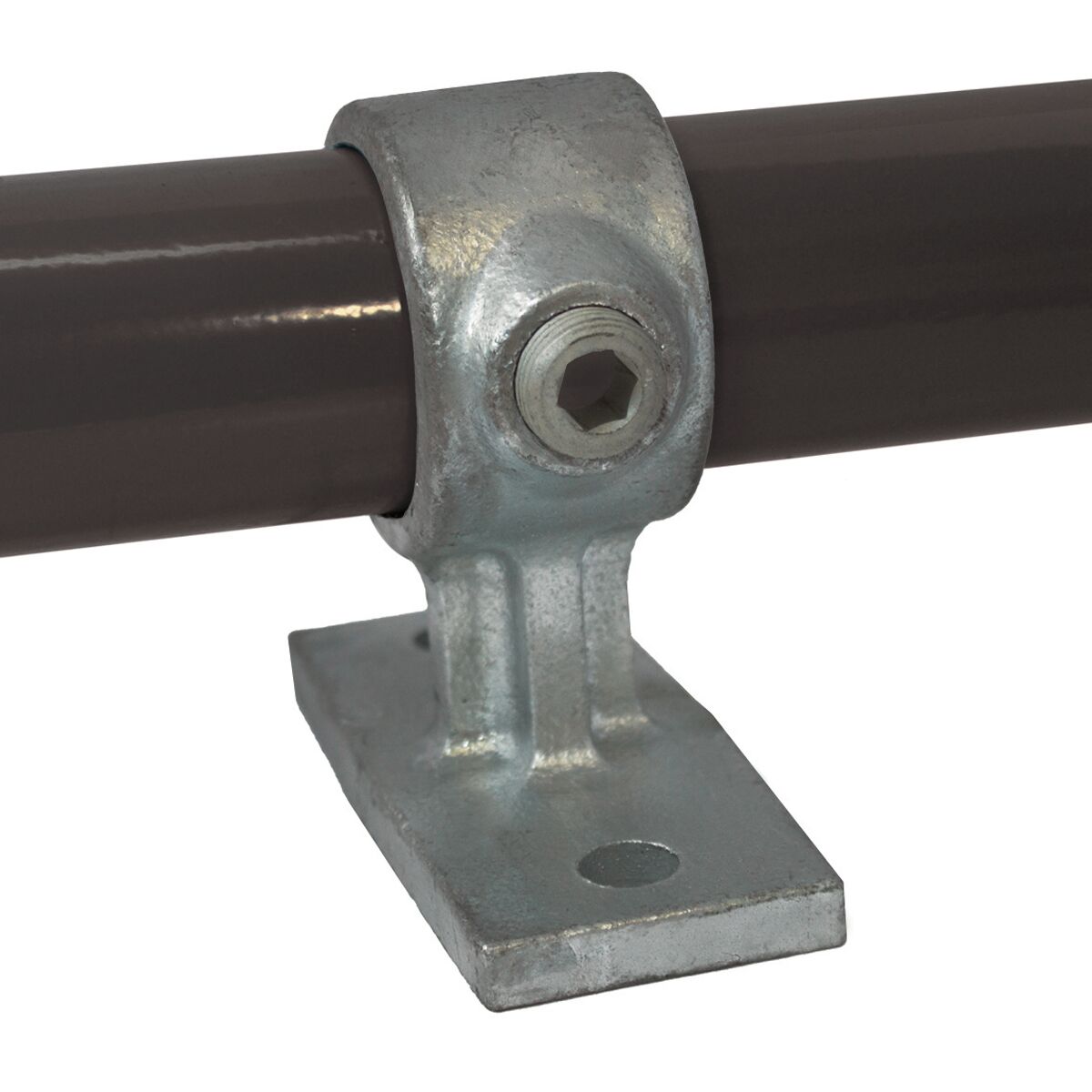

The C16 Handrail Bracket fixes a handrail tube to a wall. The tube rests in the bracket saddle and is held by a grub screw, with the bracket plate screwed to the wall. It is also used on top of walls and parapets as the fixing for a single low rail.
Space brackets to suit the tube size and use. For a full flush end return against the wall, see the DDA range.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting

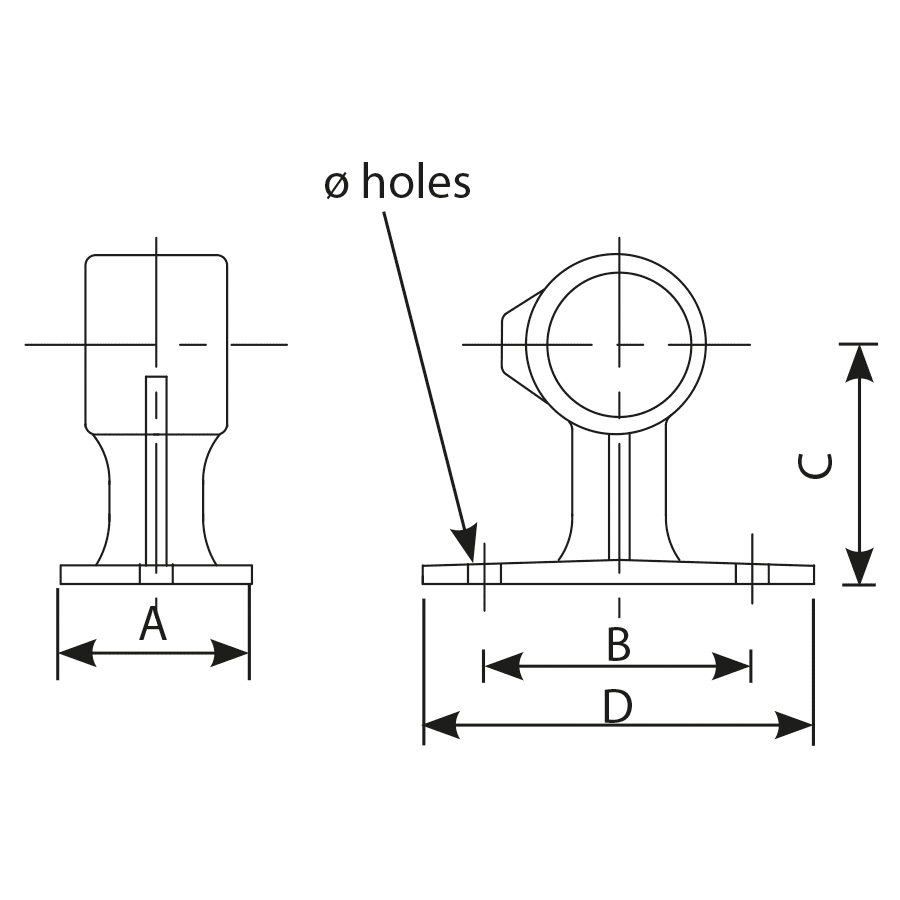

- Dimensions and weight: available on request from our technical team
Use with
C11 Wall Flange, C02 90° Elbow, C65P Plastic End Cap
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
