Description

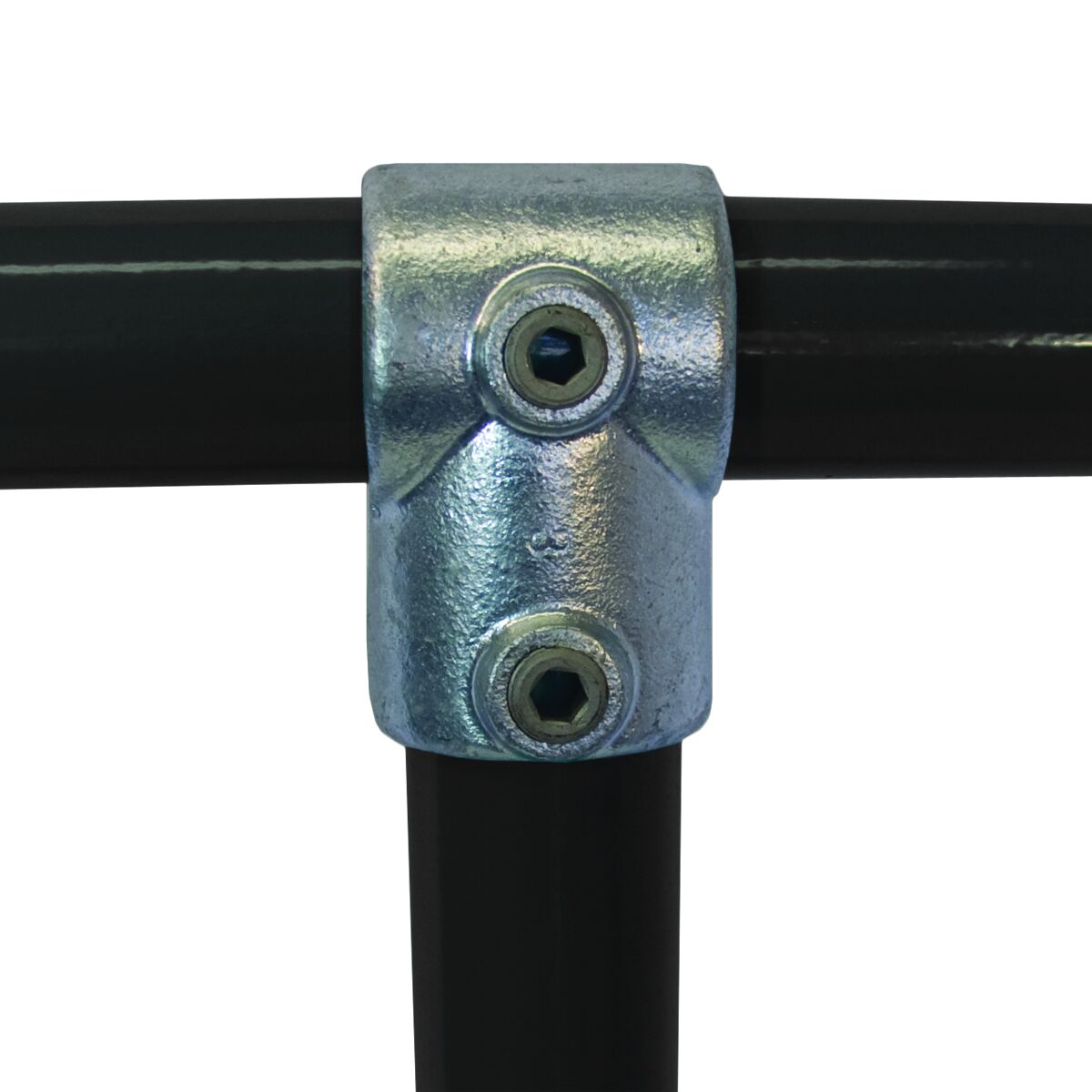

The C03 Short Tee makes a butt joint between two tubes at right angles: the through tube passes the fitting, the branch tube stops inside it. It is the workhorse of the range, used at every intermediate post where a top rail meets an upright, and on railing ends and tops.
Because the through tube runs uninterrupted, do not join tubes inside a C03. Where a joint has to fall at the post, use the C04 Long Tee, which is deep enough to take two tube ends.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting

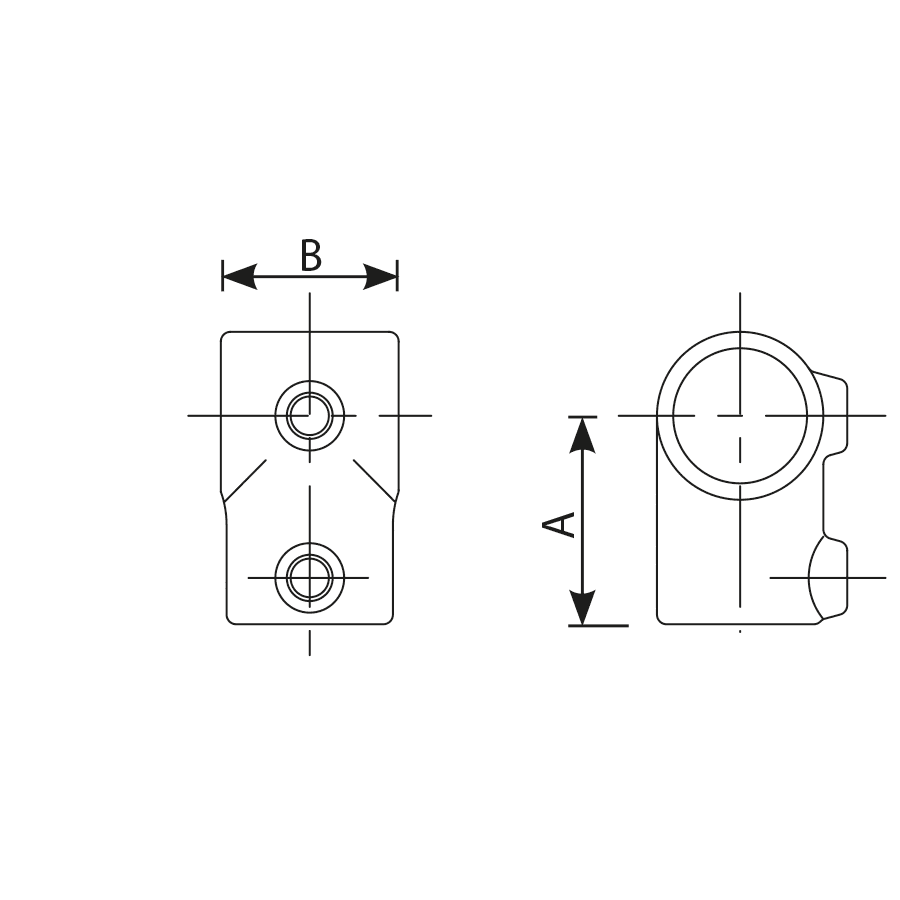

- Dimensions and weight: available on request from our technical team
Use with
C04 Long Tee, C02 90° Elbow, C22 Two Socket Cross, C30 Collar
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
