Description

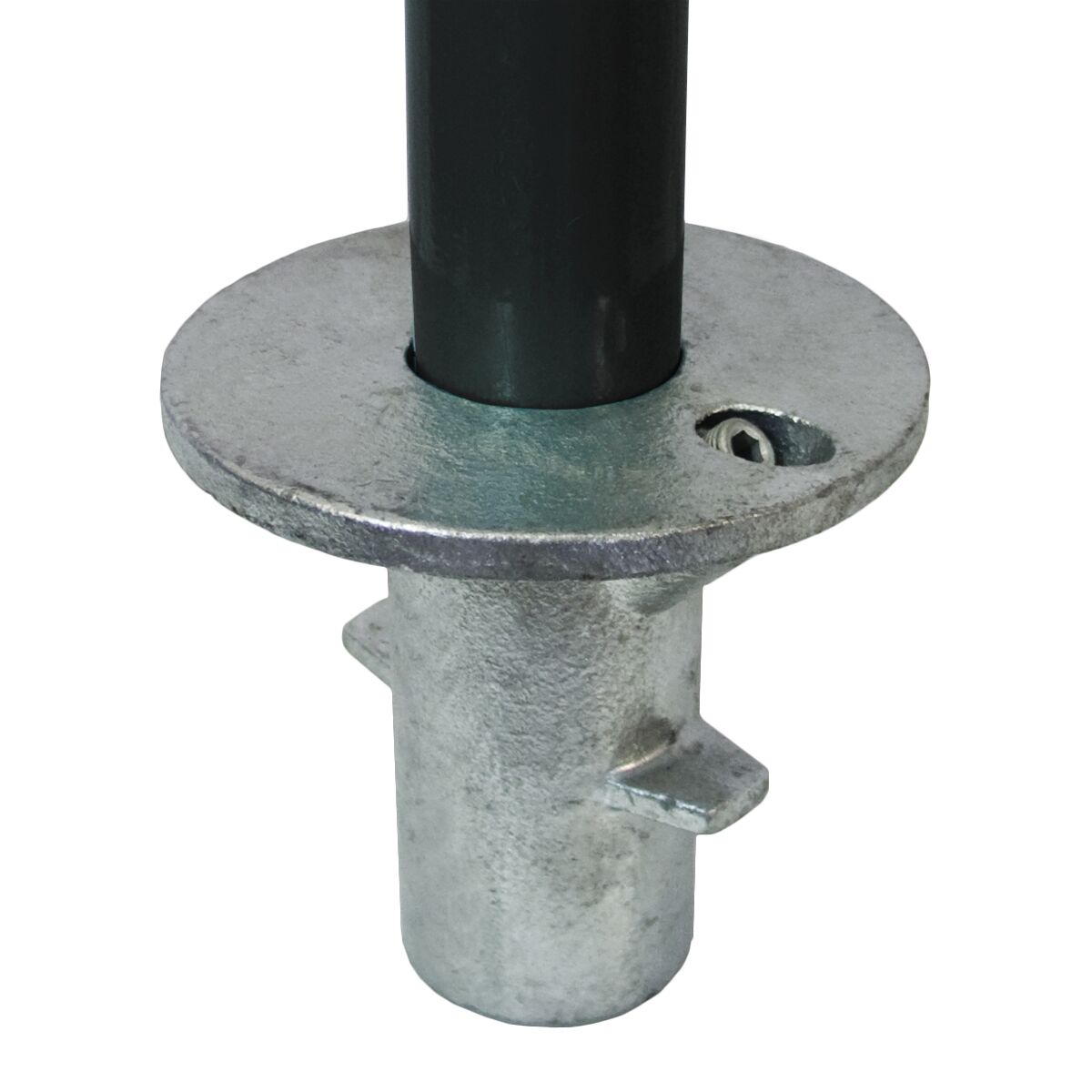

The C17 Ground Support is a socket cast into the ground so that a post can be dropped in and removed again. It is the fitting for demountable barriers, event fencing, cricket nets and sports posts that come down out of season.
The socket takes the standard tube size for the range; the post is held with grub screws and lifts out when the screws are slackened. Use post centres from the FastClamp technical data page.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting

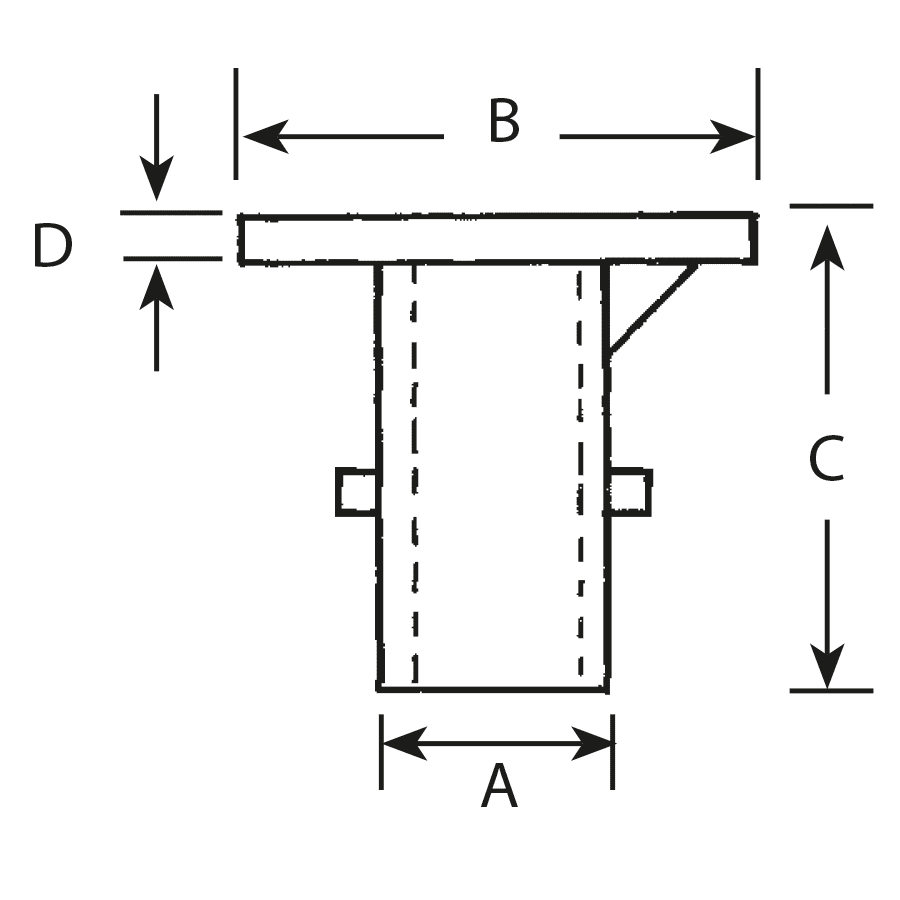

- Dimensions and weight: available on request from our technical team
Use with
C12 Railing Base Flange, C65P Plastic End Cap
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
