Description

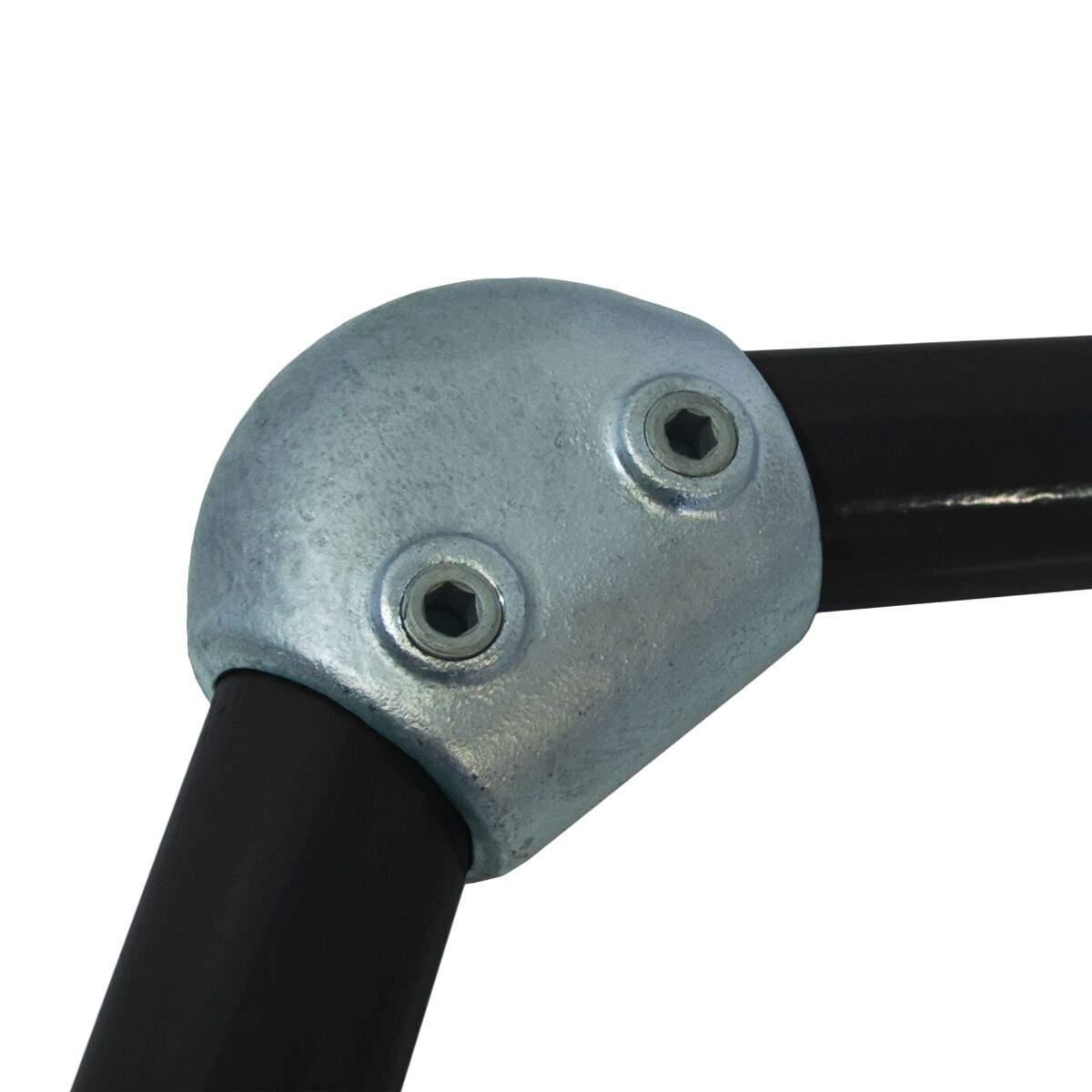

The C05 Variable Elbow makes a joint between two tubes at any angle from 15° to 60°. Both tubes stop inside the fitting. It is the fitting for stair handrail that changes direction, for bracing struts, and for canopy and roof frames where the pitch is not a standard angle.
Set the angle on site, tighten, done. For shallower angles between 11° and 30°, the C05A gives a neater result.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting

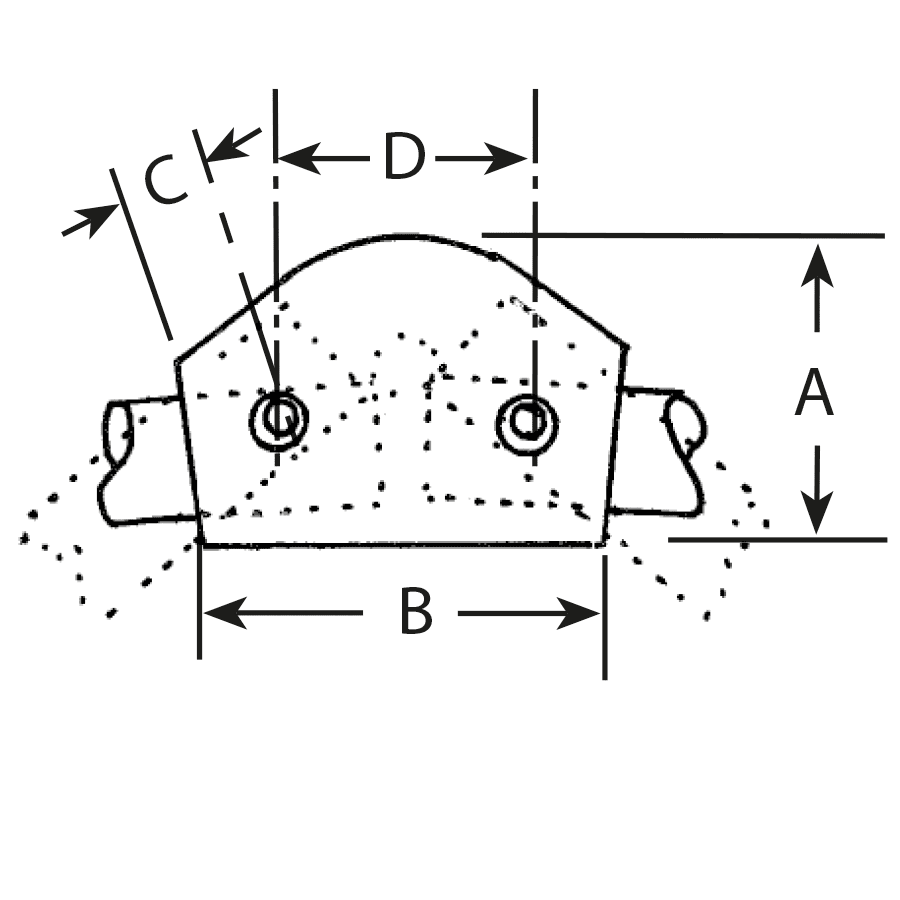

- Dimensions and weight: available on request from our technical team
Use with
C05A Variable Elbow (11° to 30°), C29 Adjustable Short Tee (30° to 60°), C72 Acute Angle Elbow (30° to 45°)
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
