Description

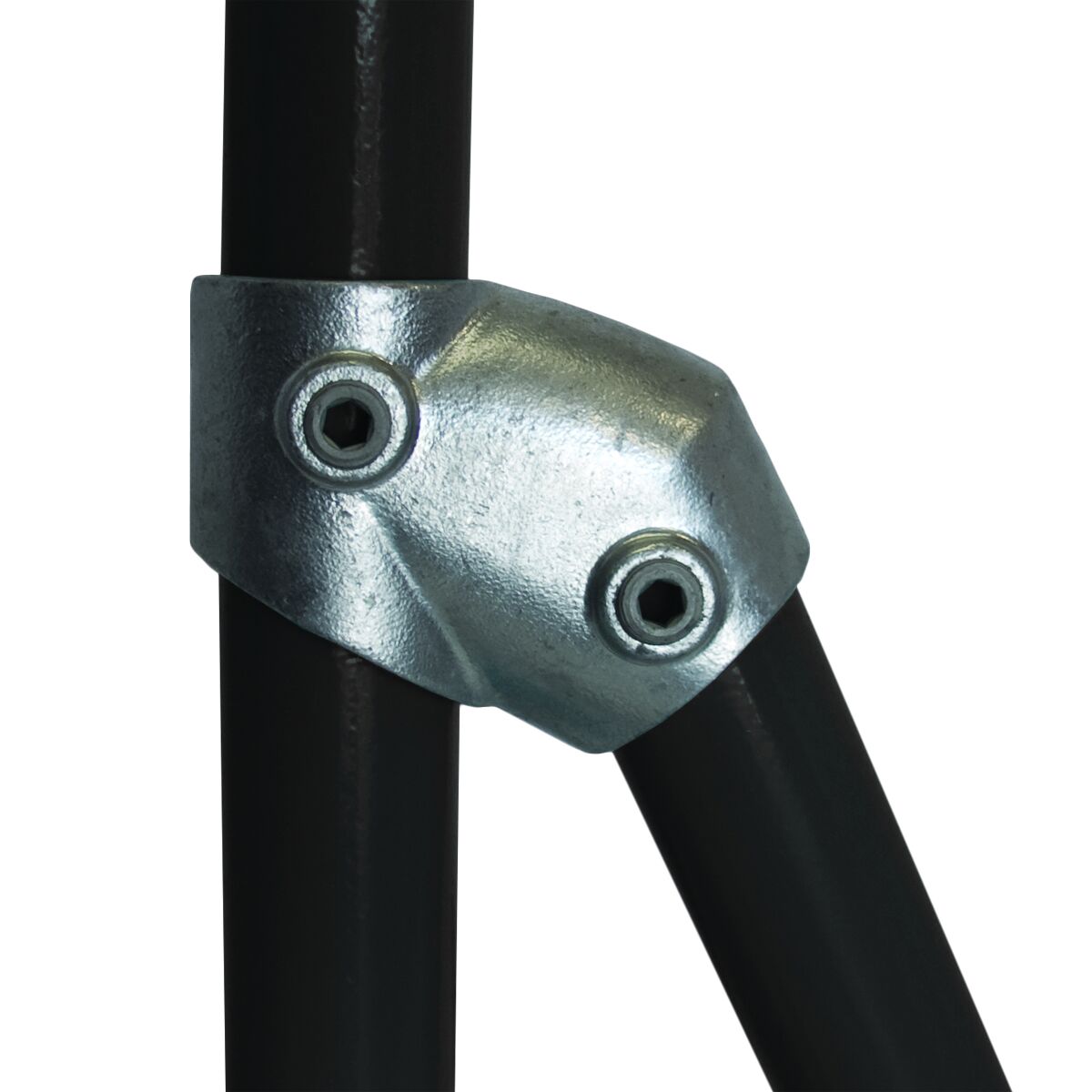

The C29 Adjustable Short Tee takes a top rail down a slope at any rake angle from 30° to 60°. The upright stops inside the fitting and the rail socket pivots. It is the standard top rail fitting on staircases and the steeper ramps.
It can be used for any tee joint between 30° and 60° on light structures. Pair it with the C28 at mid rail and the C72 at the end post.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting

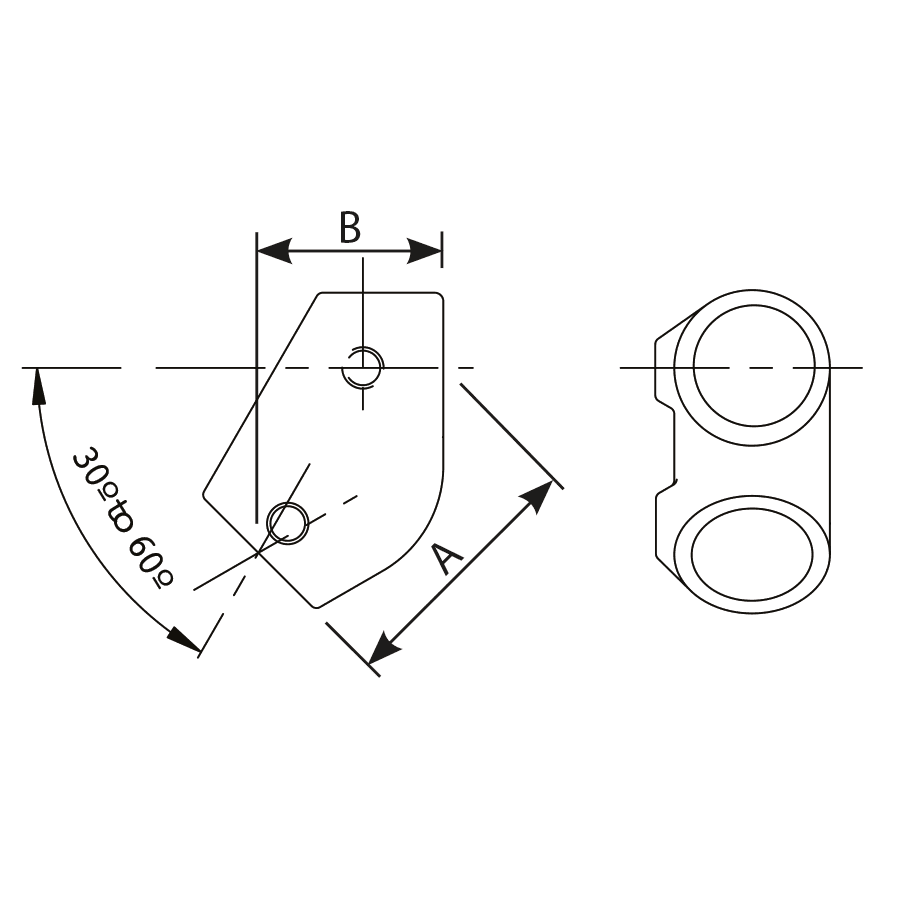

- Dimensions and weight: available on request from our technical team
Use with
C28 Adjustable 2 Socket Cross (30° to 45°), C72 Acute Angle Elbow (30° to 45°), C05 Variable Elbow (15° to 60°)
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
