Description

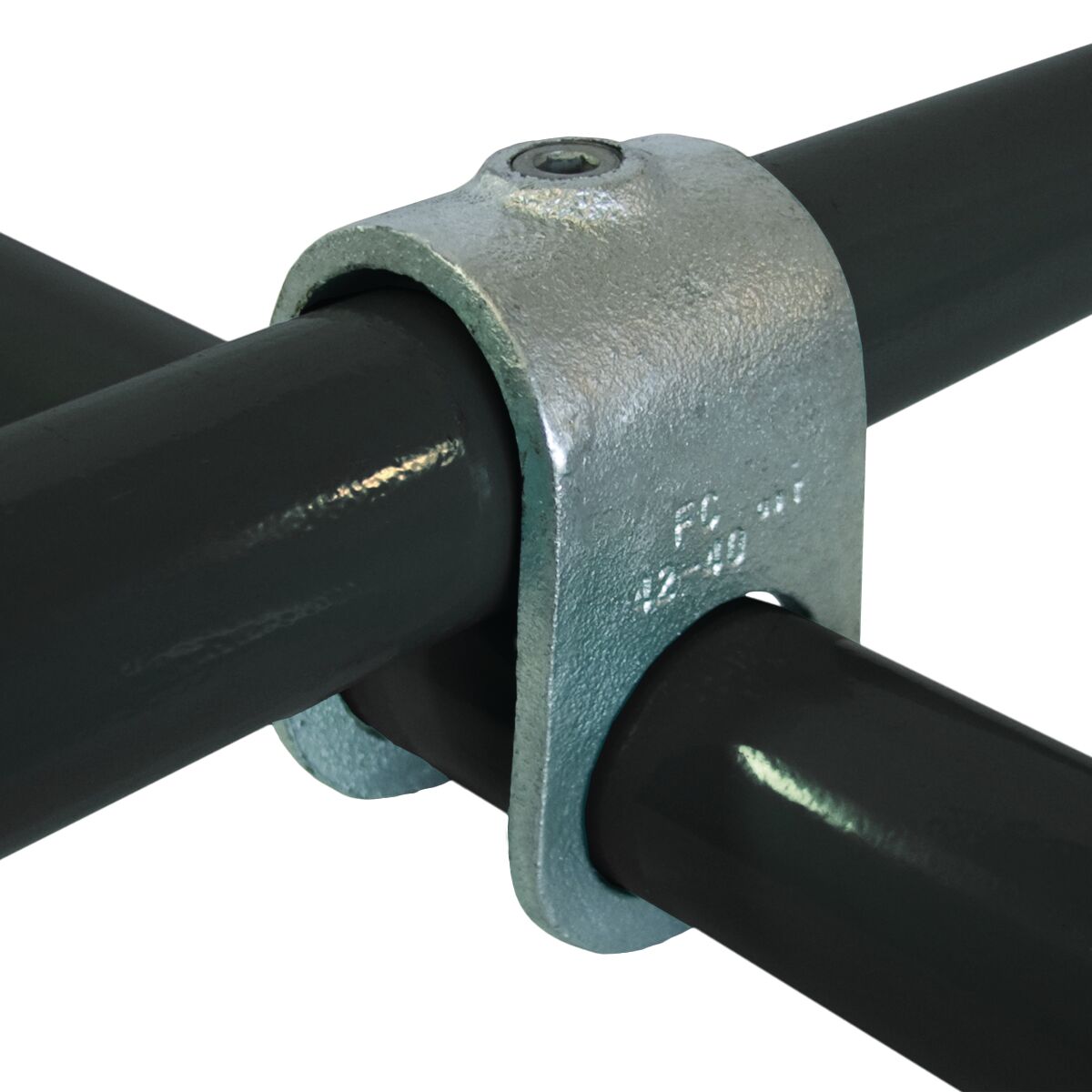

The C42 Clamp on Crossover joins a new tube across an existing one at 90° without dismantling the structure. The clamp closes around the existing tube; the new tube runs through the socket.
Use it to add a rail, brace or shelf to a frame that is already built. For a tee joint use the C41.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting

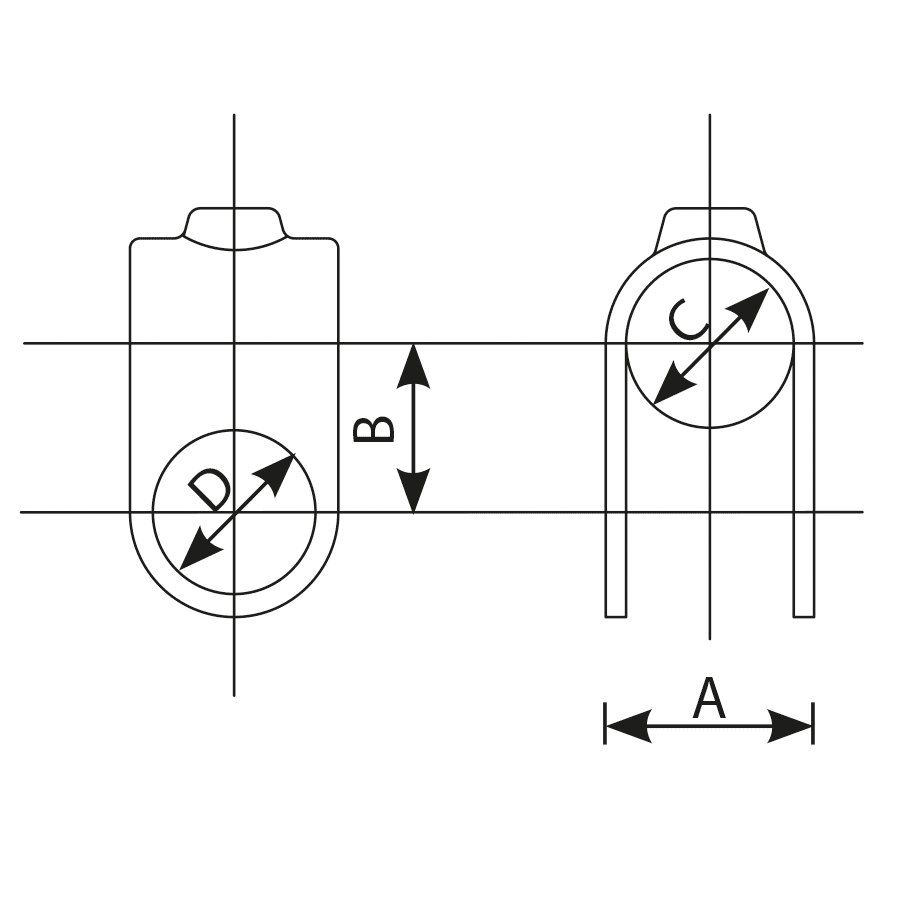

- Dimensions and weight: available on request from our technical team
Use with
C41 Clamp on Tee, C40 90° Crossover, CA40 Add On 90° Crossover
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
