Description

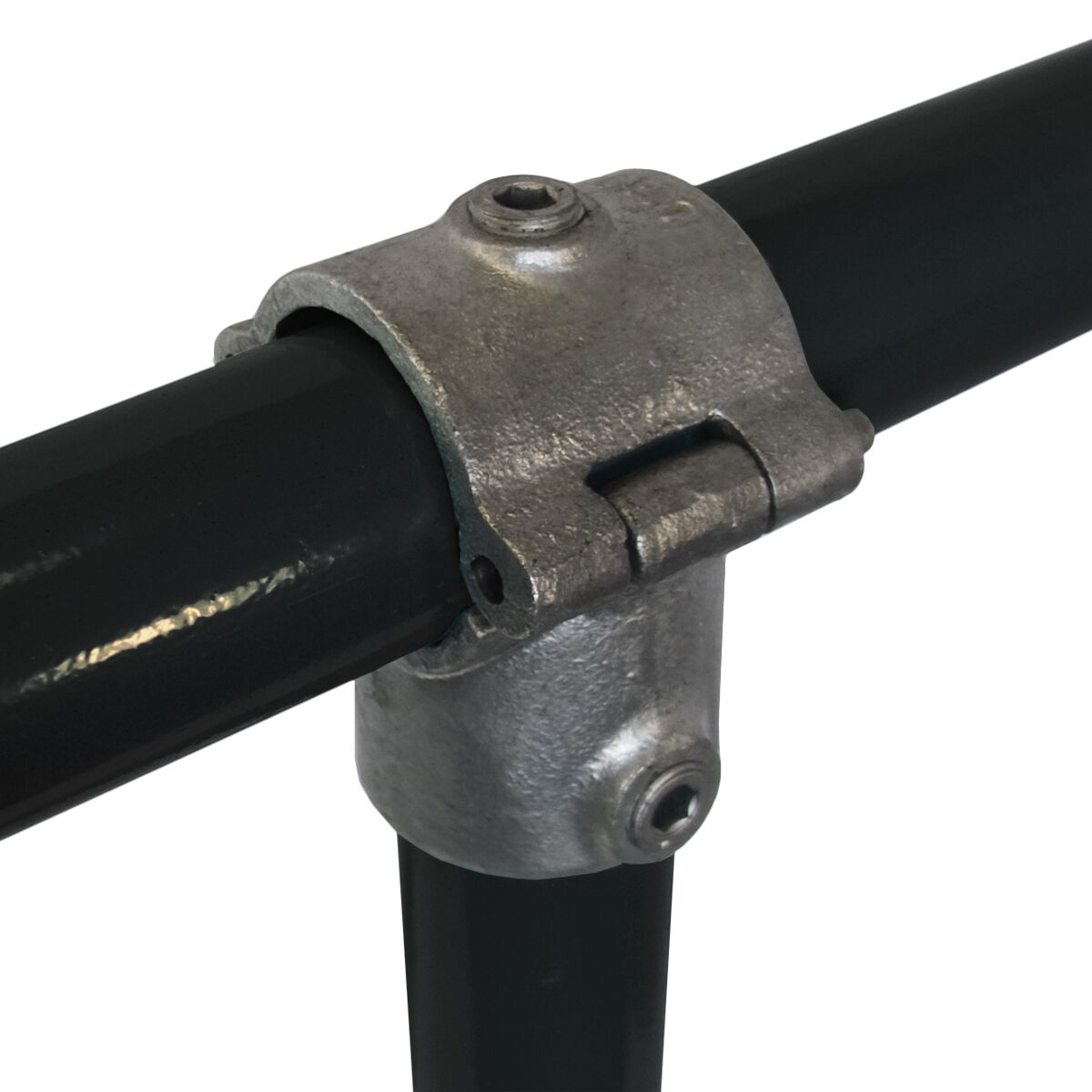

The CA03 Add On Short Tee lets you add a tee joint to an existing structure without dismantling it. The fitting splits, closes around the existing tube and is bolted up; the new tube goes into the socket.
Tubes must not be joined within this fitting. For a crossover use the CA40.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting

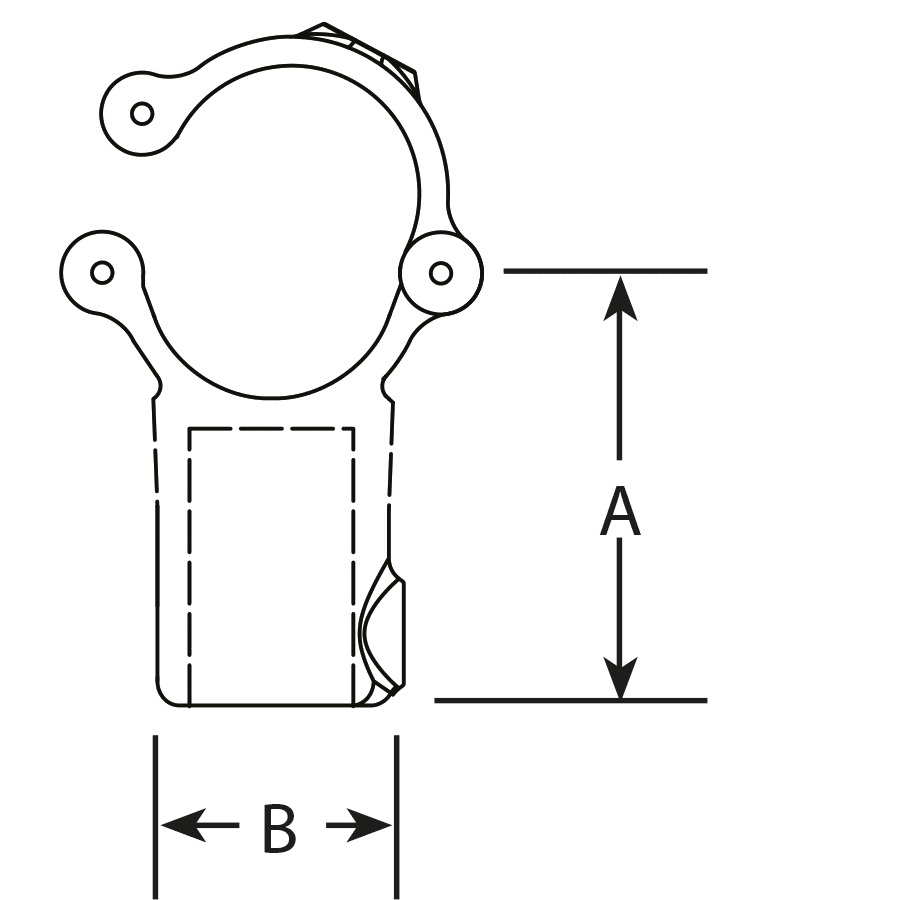

- Dimensions and weight: available on request from our technical team
Note: Tubes must not be joined within this fitting.
Use with
CA40 Add On 90° Crossover, C41 Clamp on Tee, C03 Short Tee
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
