Description

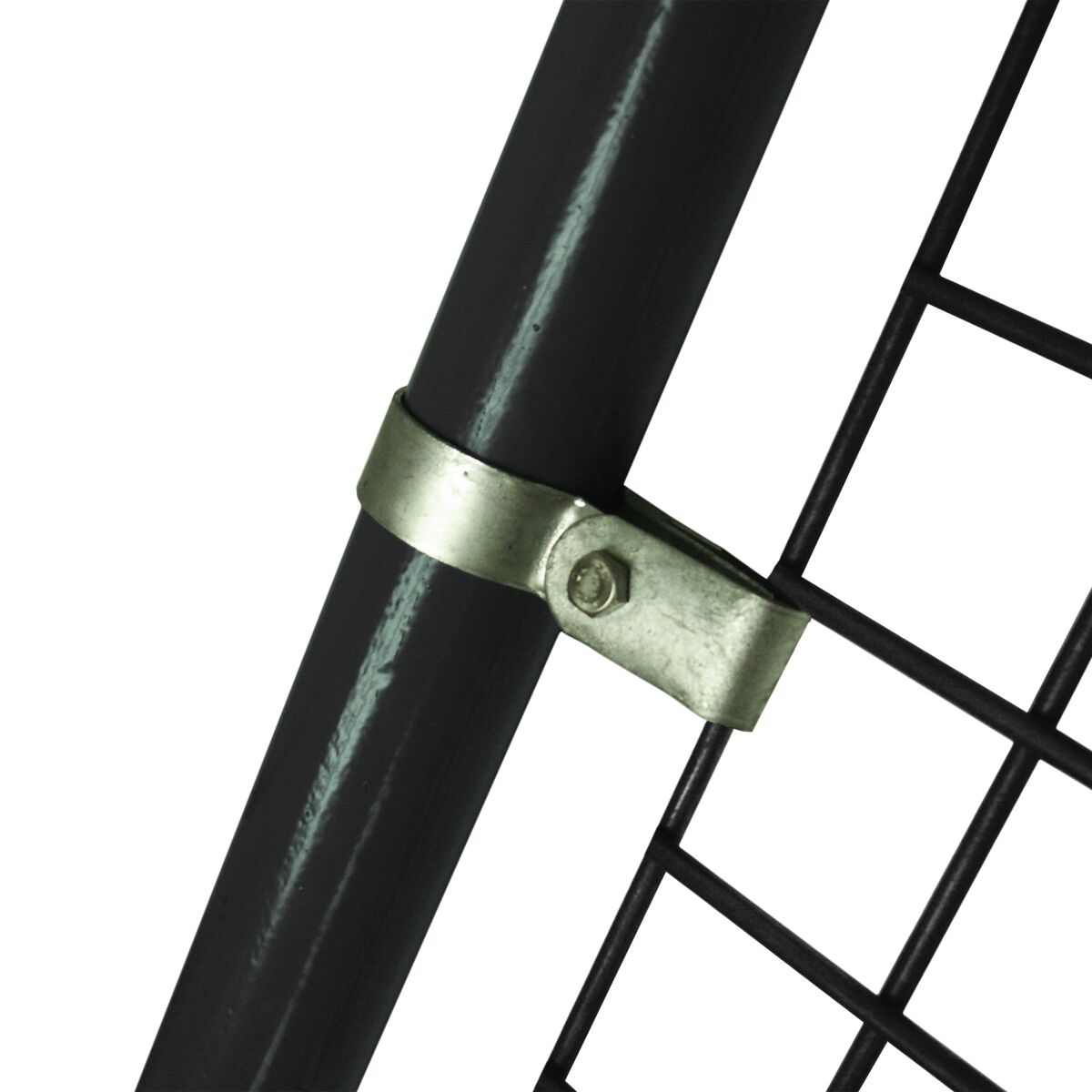

The C66 Single Mesh Clip fixes standard mesh panels to a FastClamp tube frame. It clamps to the tube and holds the mesh wire in a single jaw. Space clips at a maximum of 450mm.
Sold in packs of 10. For panels meeting at a shared tube use the C67 Double Mesh Clip.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Pack: 10 clips
- Spacing: maximum 450mm between clips

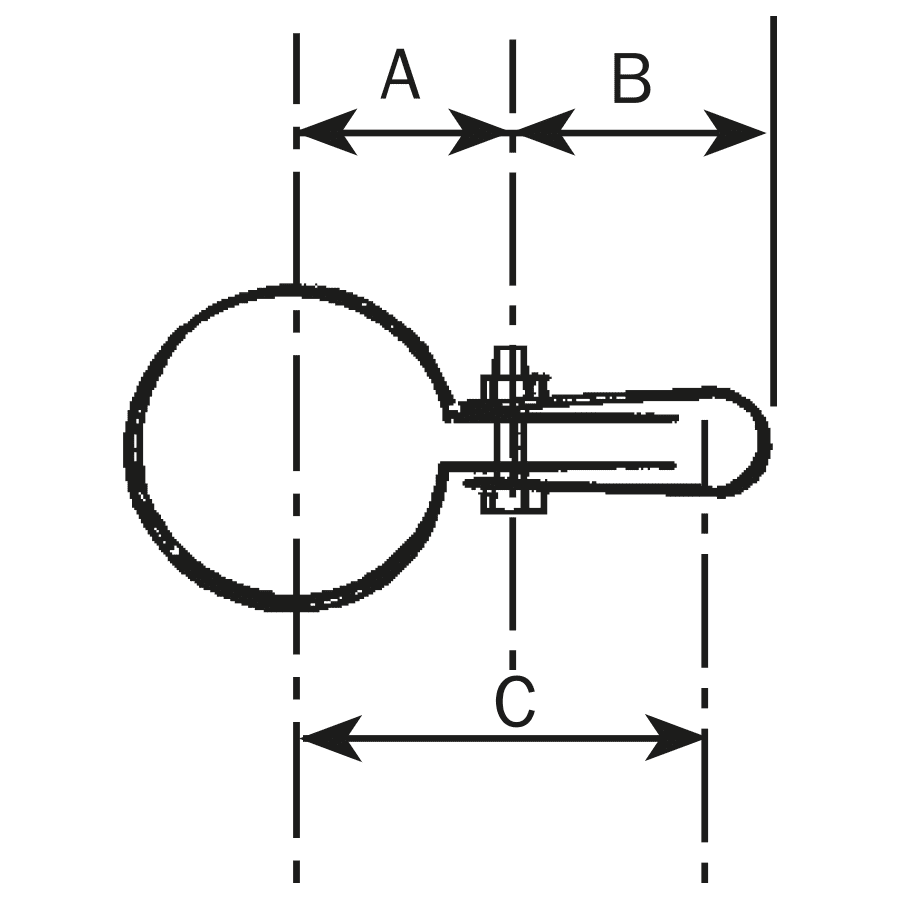

- Dimensions and weight: available on request from our technical team
Use with
C67 Double Mesh Clip, C34 Fixing Pad
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
