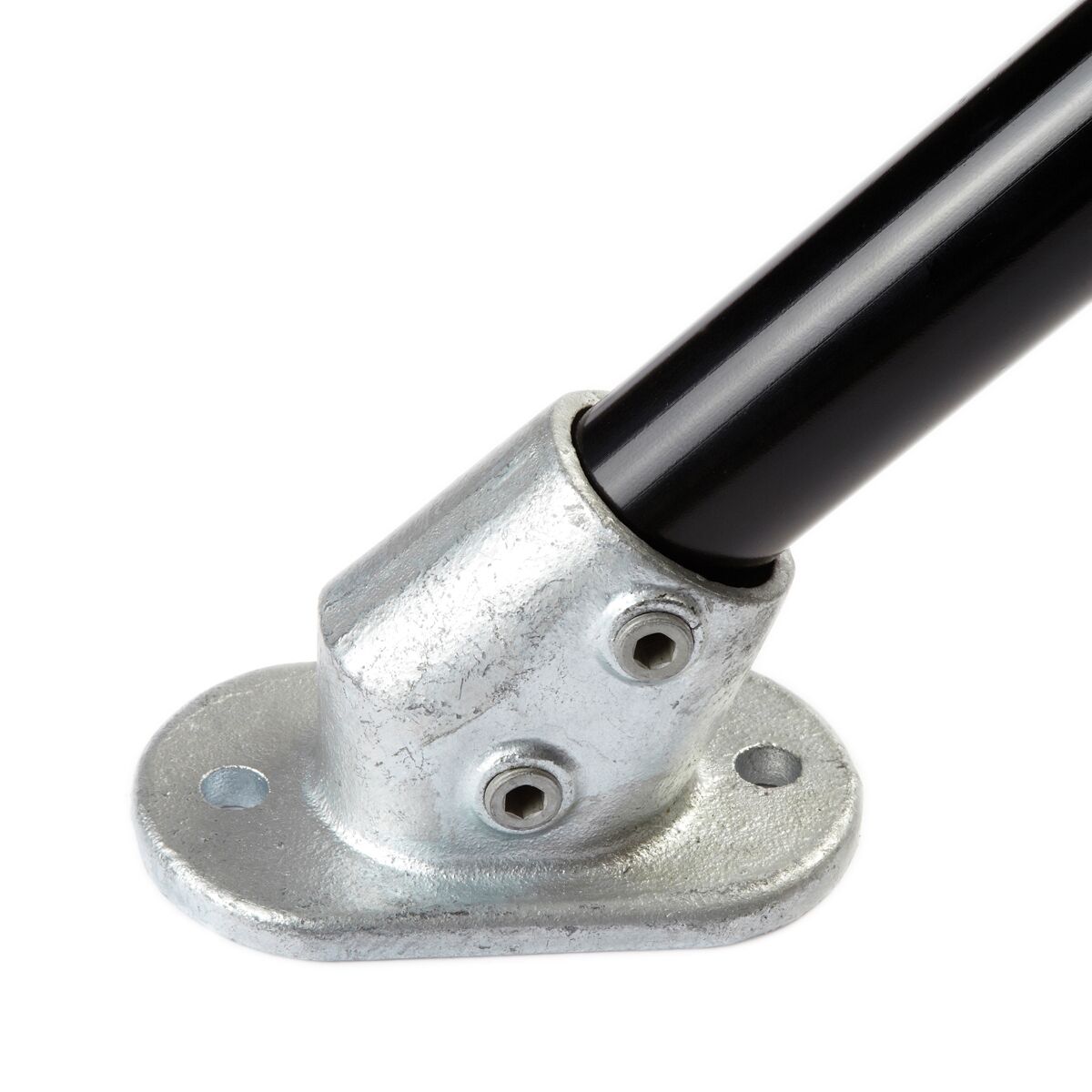

C59A Angle Base Flange (30° to 45°)

POA

Similar to a type C59, it is used to set the upright at an angle between 30° & 45°. This fitting should only be subjected to light loads which cannot be positioned at 90° to the applied load. For greater load use a type C12

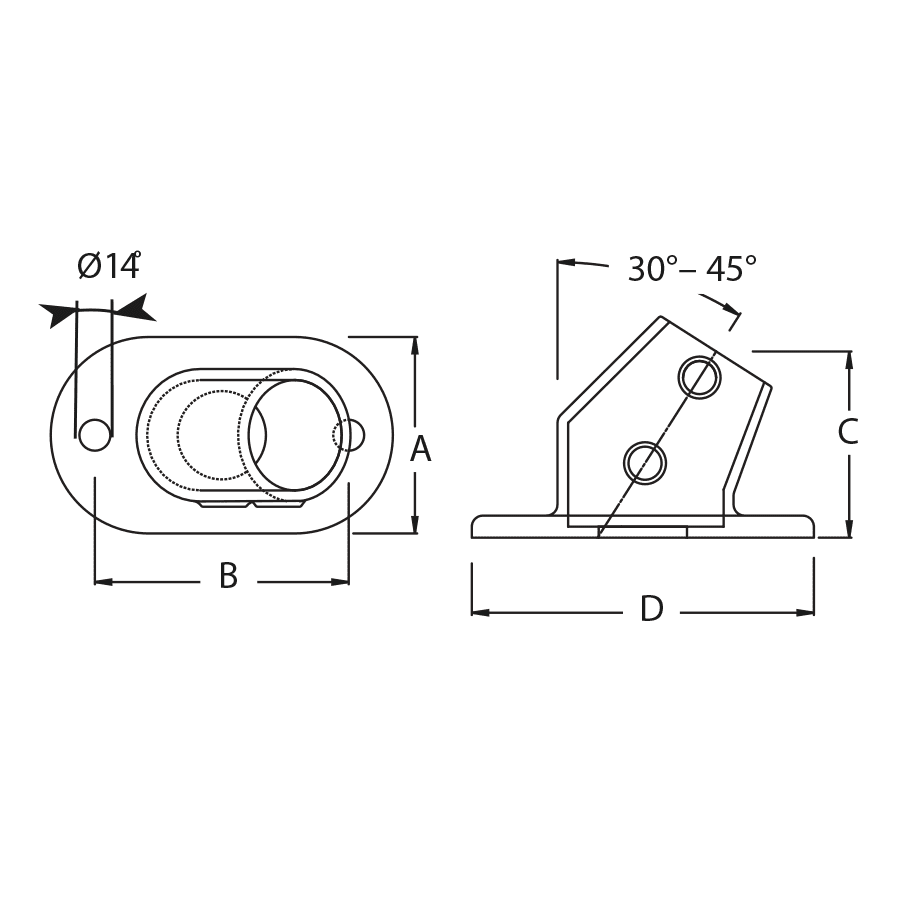

# Tube Size A B C D kg
G3242.4 76 106 81 138 1.17
G4048.3 89 115 85 155 1.53
View Size Chart...
Clear selection
SKU: C59A Categories: ,

Description

Similar to a type C59, it is used to set the upright at an angle between 30° & 45°. This fitting should only be subjected to light loads which cannot be positioned at 90° to the applied load. For greater load use a type C12

Additional information

Size

G32, G40
