C59 Angle Base Flange (11° to 30°)

POA

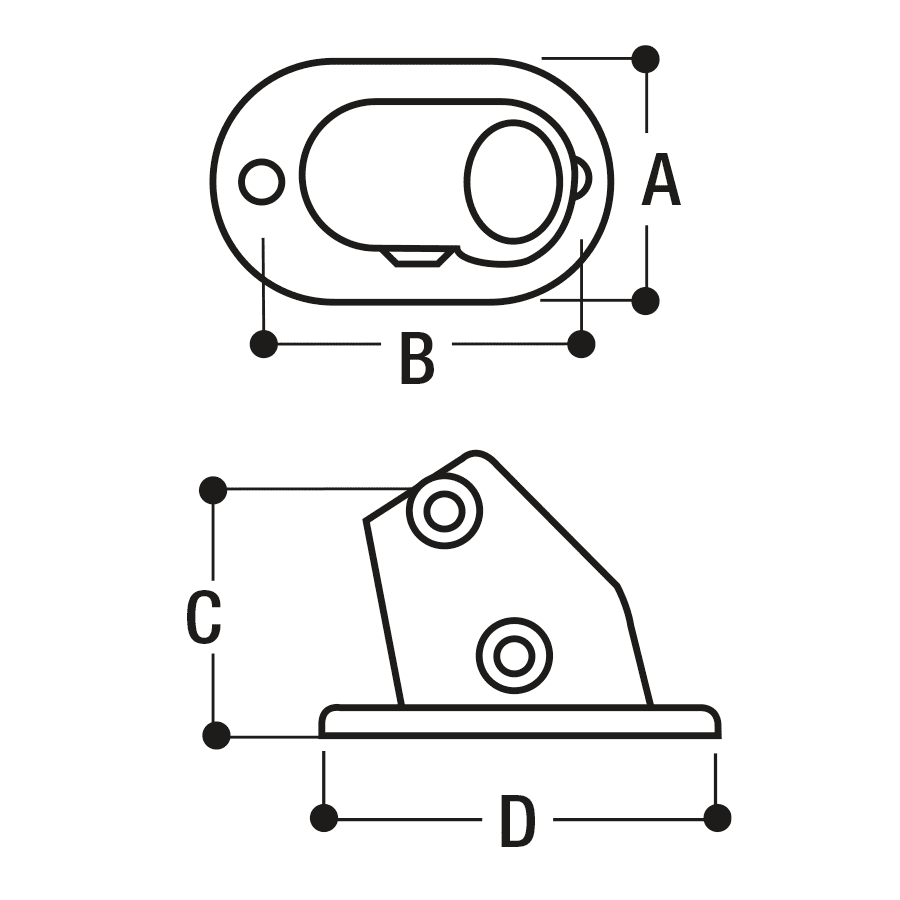

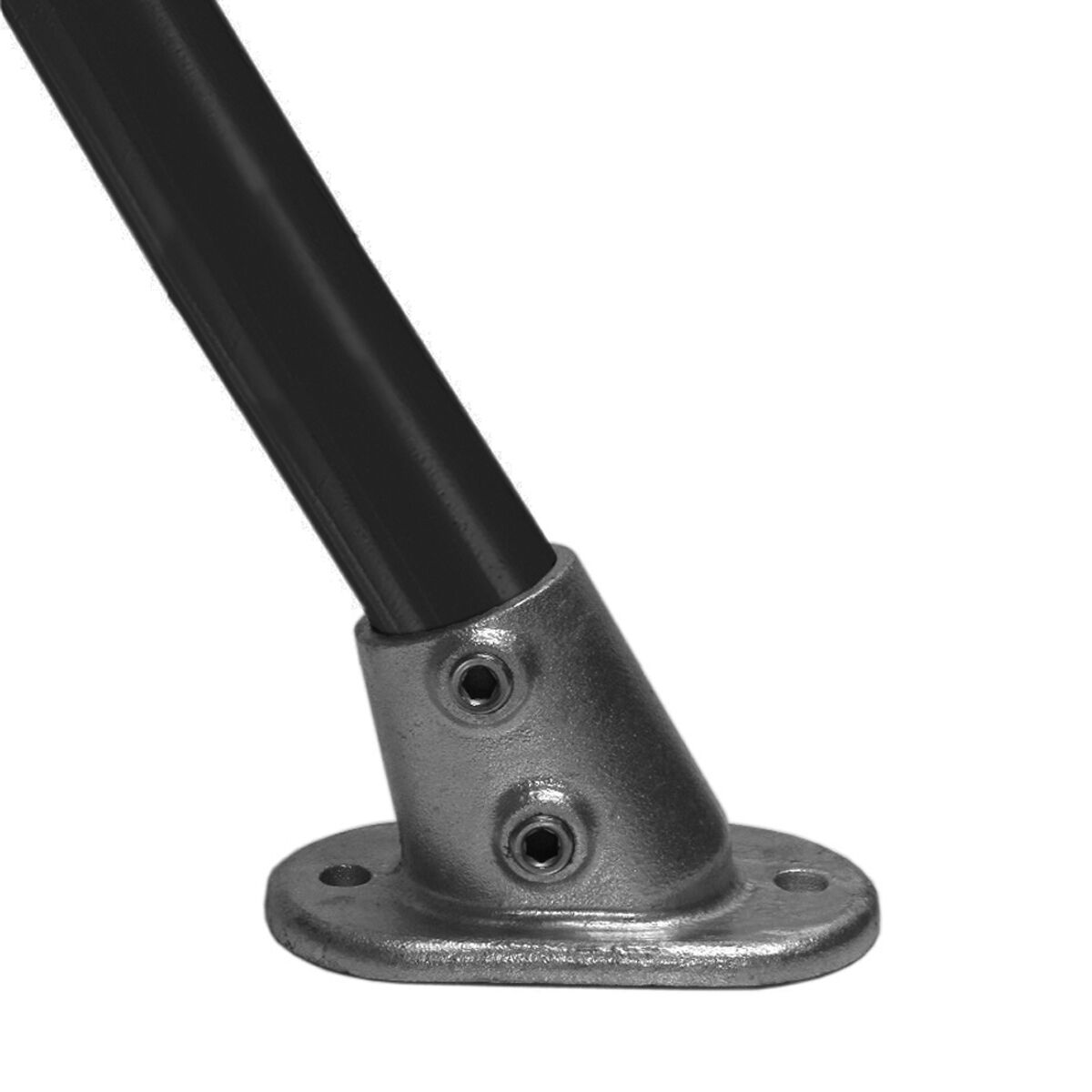

Similar to a type C53, it is used to set the upright at an angle between 11º– 30º. This fitting should only be subjected to light loads which cannot be positioned at 90º to the applied load. For greater loads or other tube sizes a type C12 flange should be used with the upright bent to the required angle Ø indicates the diameter of the fixing hole.

# Tube Size A B C D Ø kg
G3242.4 76 114 79 146 14 1.27
G4048.3 89 124 90 164 14 1.42
View Size Chart...
Clear selection
SKU: C59 Categories: ,

Description

Similar to a type C53, it is used to set the upright at an angle between 11º– 30º. This fitting should only be subjected to light loads which cannot be positioned at 90º to the applied load. For greater loads or other tube sizes a type C12 flange should be used with the upright bent to the required angle Ø indicates the diameter of the fixing hole.

Additional information

Size

G32, G40
