Description

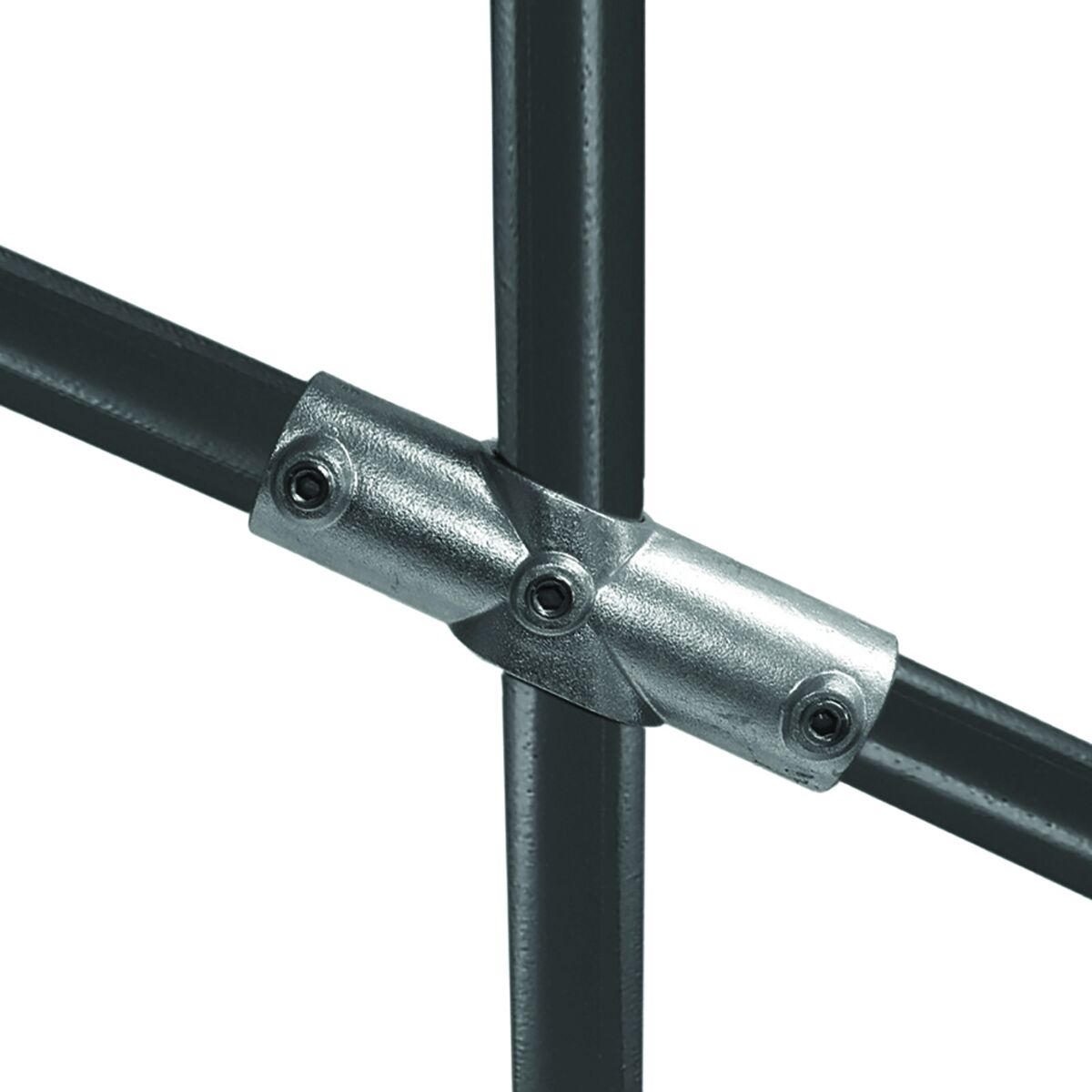

The C58 Two Socket Cross fixes a mid rail to a vertical intermediate upright on safety railing with a slope of 11° to 30°. The upright passes through. It is an ex-stock alternative to the machined C26.
Use it with the C57 at top rail.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting

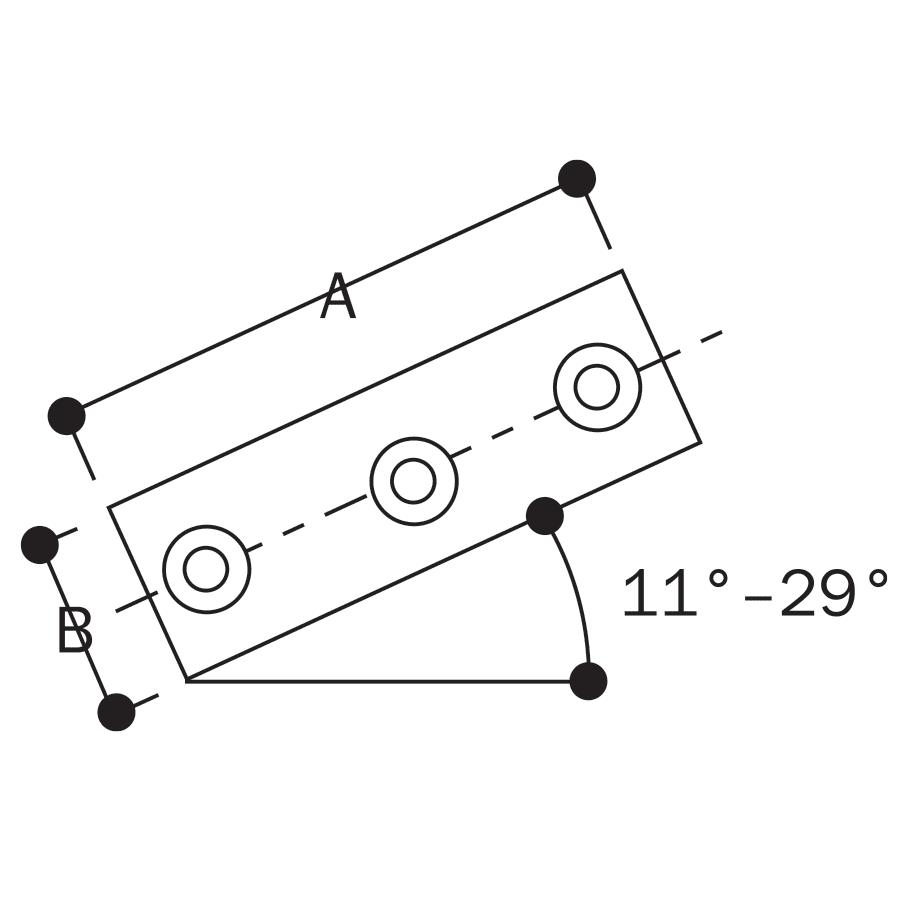

- Dimensions and weight: available on request from our technical team
Use with
C57 Three Socket Tee (11° to 30°), C229 Single Socket Tee (11° to 30°), C59 Angle Base Flange (11° to 30°)
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
