Description

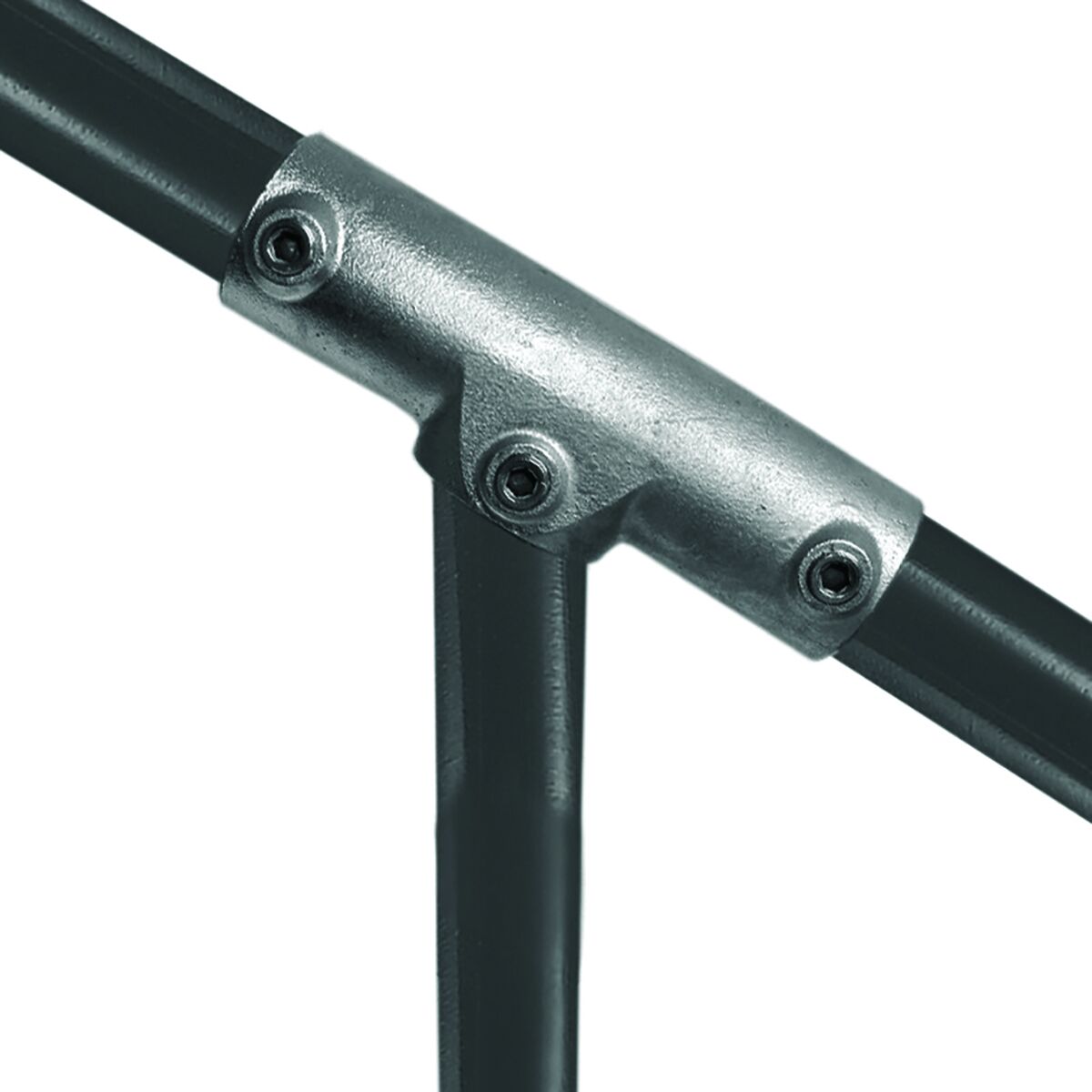

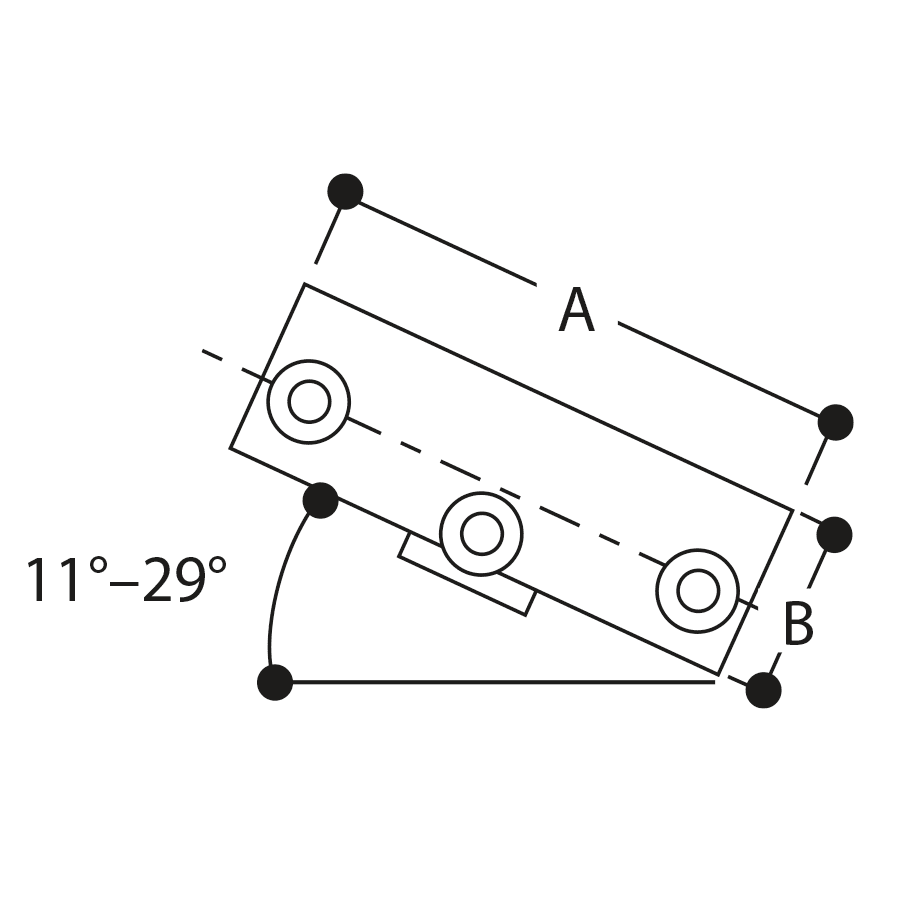

The C57 Three Socket Tee fixes a top rail to a vertical intermediate upright on safety railing with a slope of 11° to 30°. It is an ex-stock alternative to the machined C27 and needs no machining.
Use it with the C58 at mid rail. For 30° to 45° slopes use the C245.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting
- Dimensions and weight: available on request from our technical team
Use with
C58 Two Socket Cross (11° to 30°), C245 Three Socket Tee (30° to 45°), C59 Angle Base Flange (11° to 30°)
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
