Description

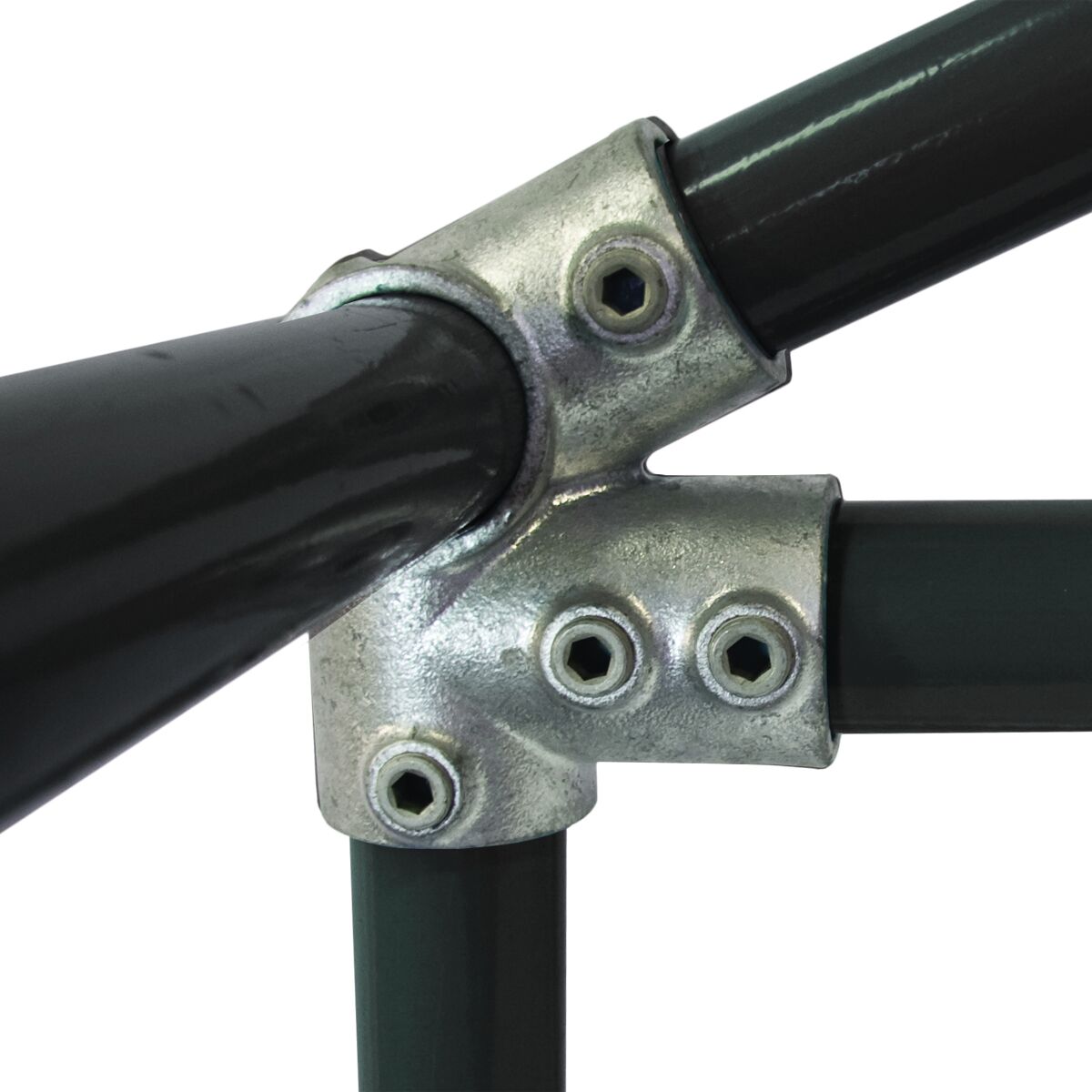

The C56 27½° Eaves Fitting is a four-way socket fitting that forms the eaves of a tubular roof structure: the rafter comes in at the pitched angle, the post drops vertically, the eaves tube runs through.
Pair it with the C55 Ridge Fitting.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting

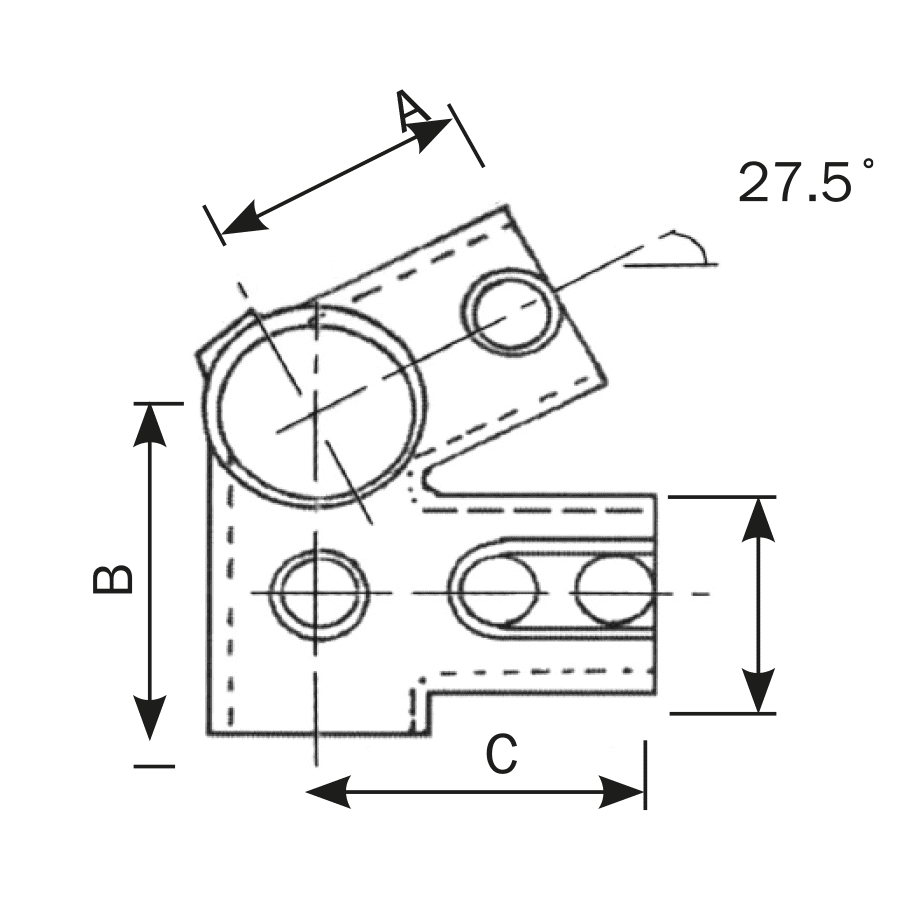

- Dimensions and weight: available on request from our technical team
Use with
C55 27½° Ridge Fitting, C12 Railing Base Flange, C22 Two Socket Cross
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
