Description

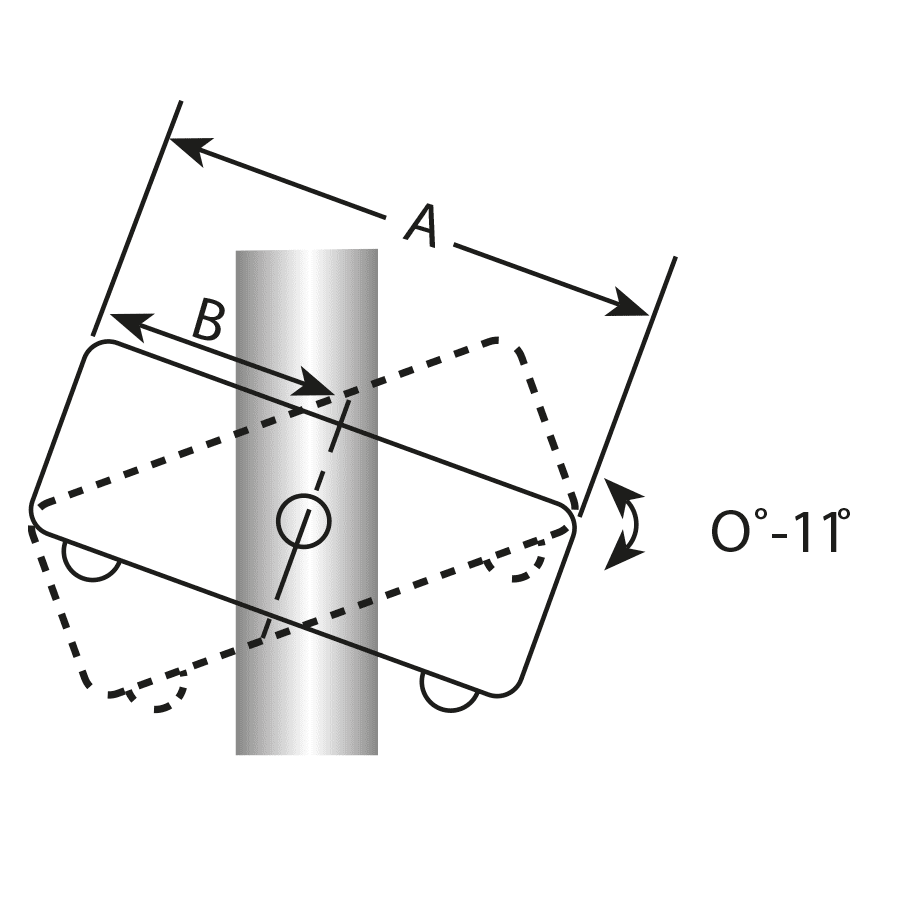

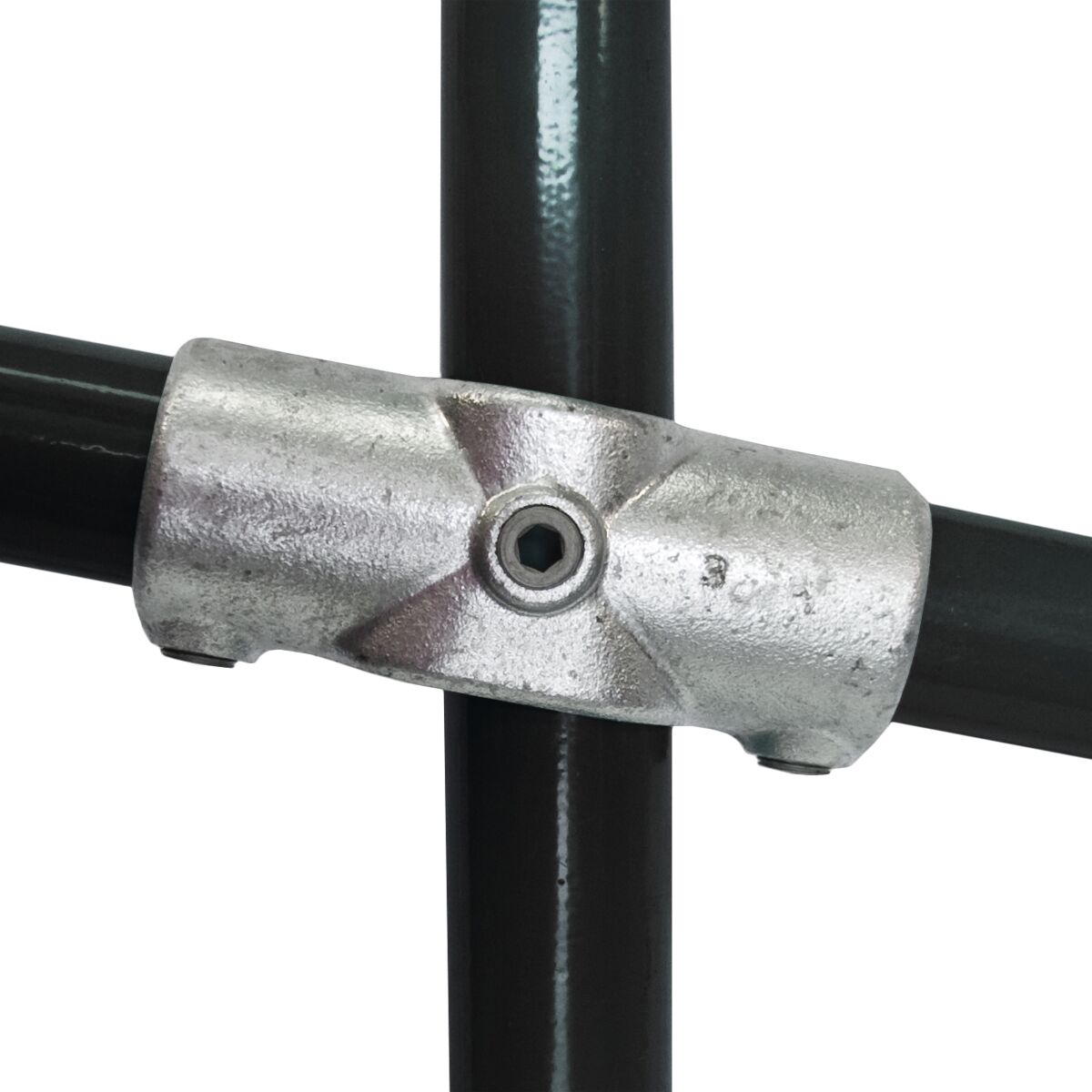

The C54 Slope 2 Socket Cross is the mid rail fitting for ramps, adjustable from 0° to 11°. The upright passes through and the two rail sockets pivot to the ramp angle.
It completes the ramp set with the C50 elbow, C51 and C52 tees and C53 base.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting
- Dimensions and weight: available on request from our technical team
Use with
C51 Short Slope Tee (0° to 11°), C52 Long Slope Tee (0° to 11°), C53 Slope Base (0° to 11°)
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
