Description

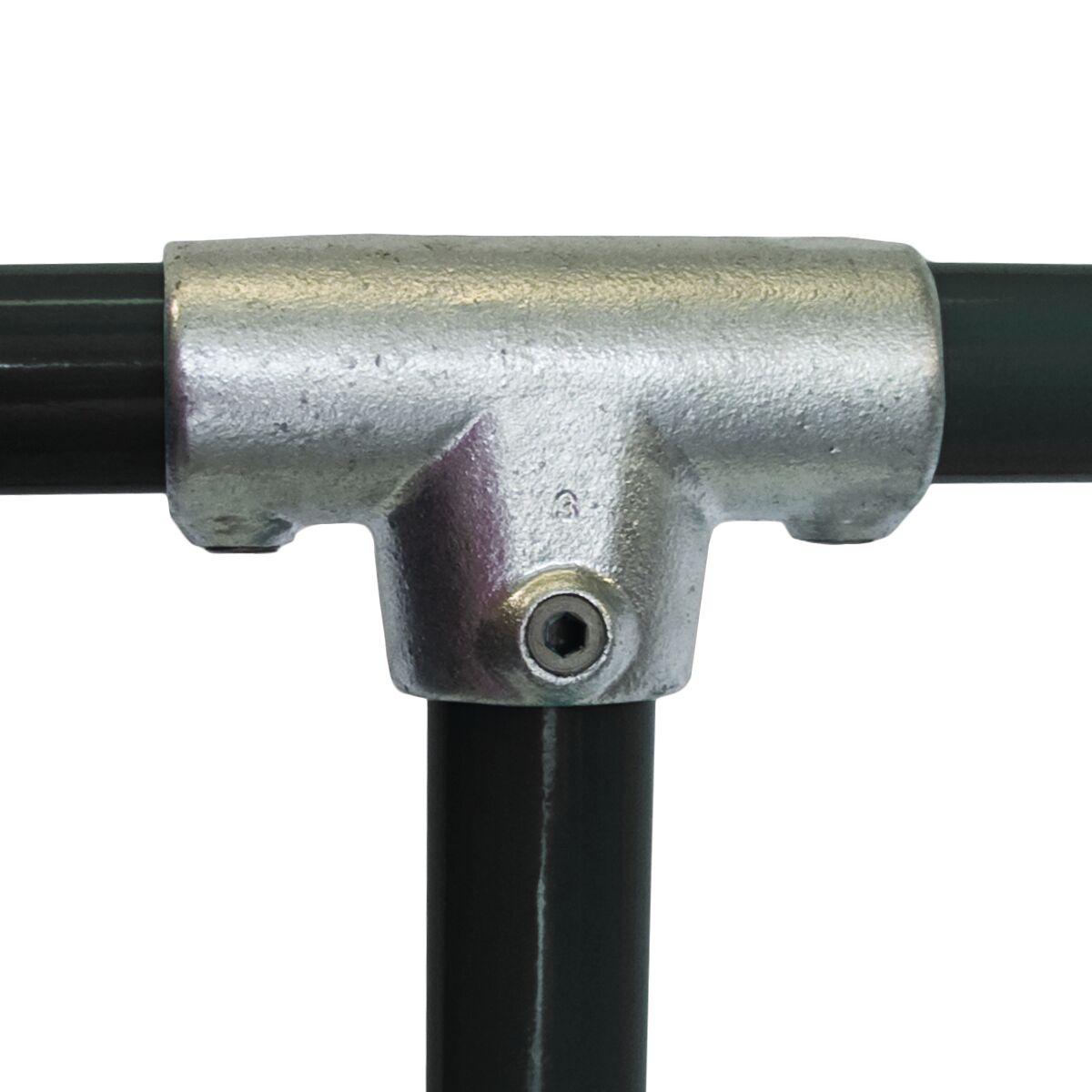

The C52 Long Slope Tee is the ramp version of the C04 Long Tee: a tee joint between top rail and upright at 0° to 11°, with a socket long enough for two rail ends to meet inside the fitting.
Use the C51 where no joint falls at the post.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting

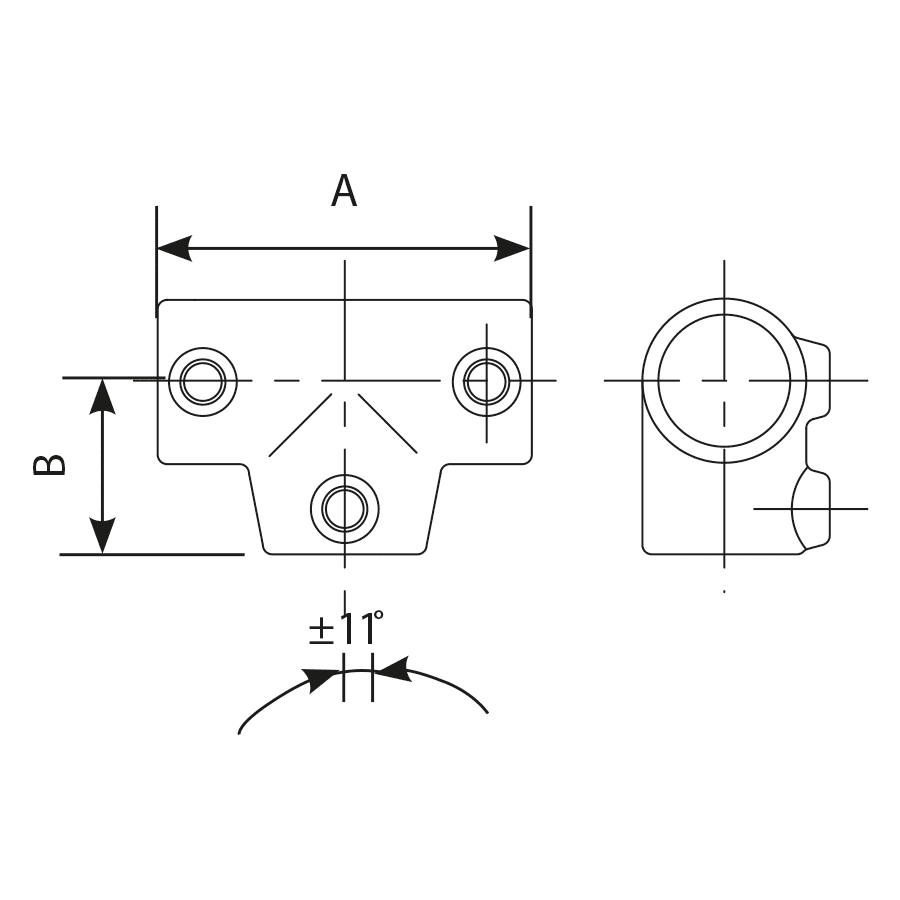

- Dimensions and weight: available on request from our technical team
Use with
C51 Short Slope Tee (0° to 11°), C53 Slope Base (0° to 11°), C54 Slope 2 Socket Cross (0° to 11°)
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
