Description

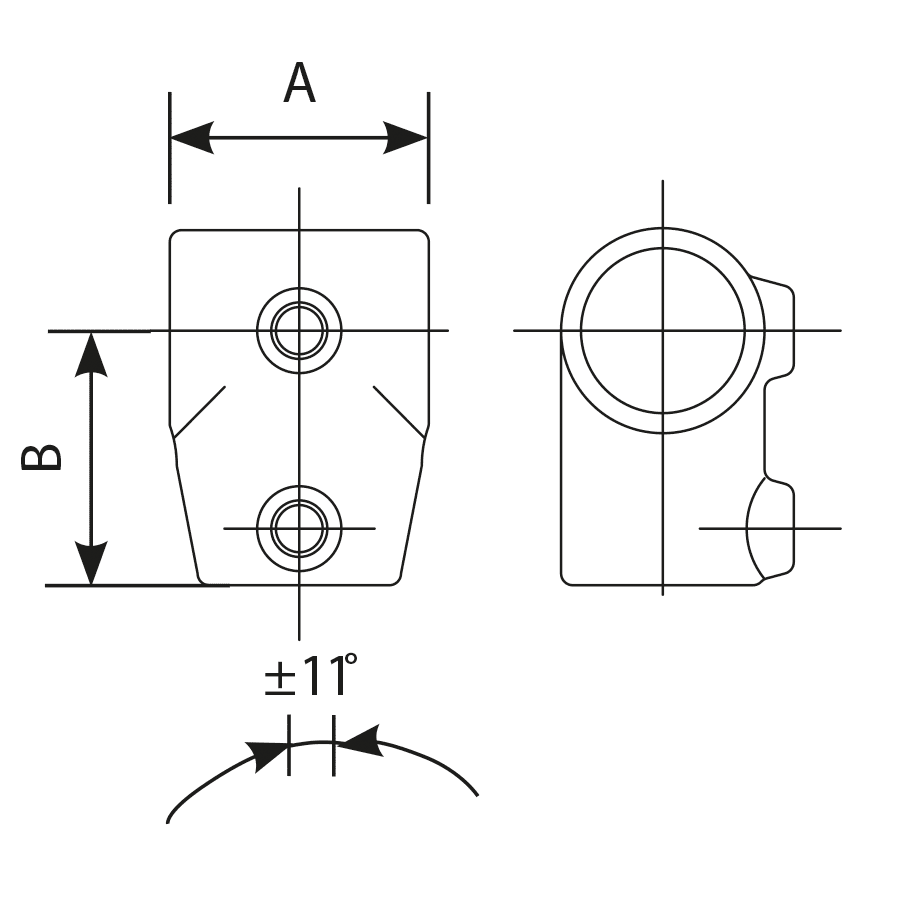

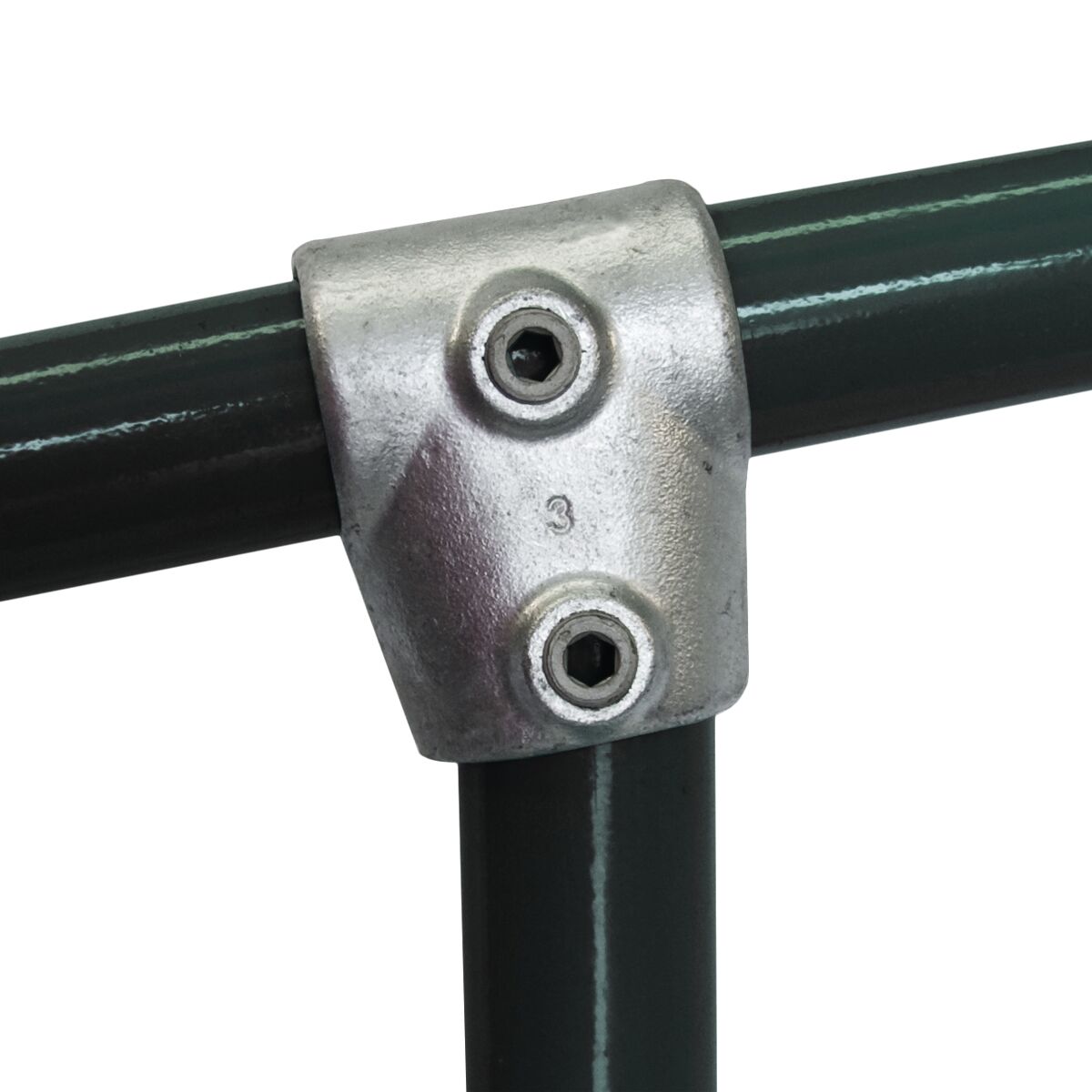

The C51 Short Slope Tee gives a tee joint between a top rail and an upright on a ramp, adjustable from 0° to 11°. The upright stops inside the fitting, the rail passes through at the ramp angle.
For a joint that has to take two rail ends, use the C52 Long Slope Tee.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting
- Dimensions and weight: available on request from our technical team
Use with
C52 Long Slope Tee (0° to 11°), C53 Slope Base (0° to 11°), C54 Slope 2 Socket Cross (0° to 11°)
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
