Description

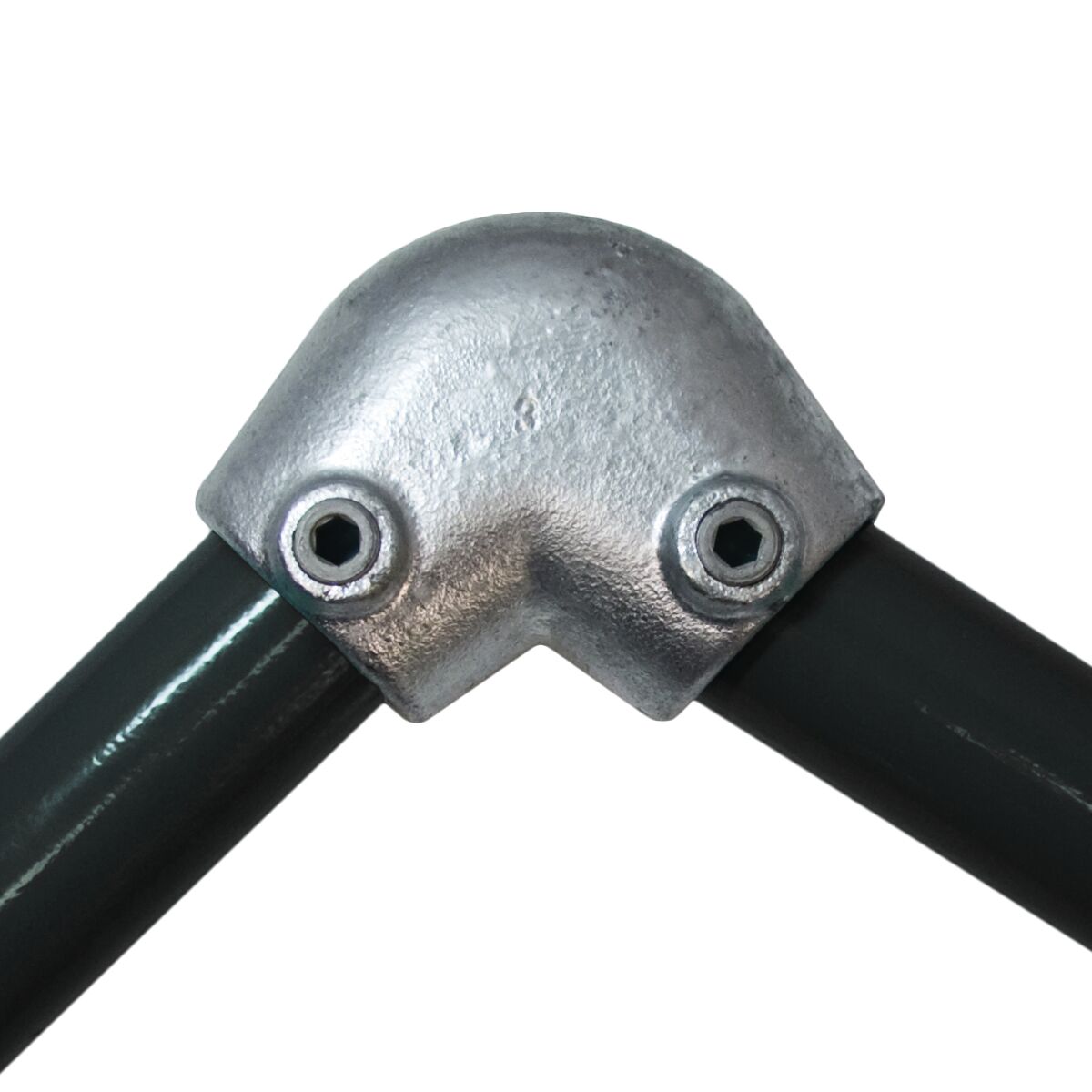

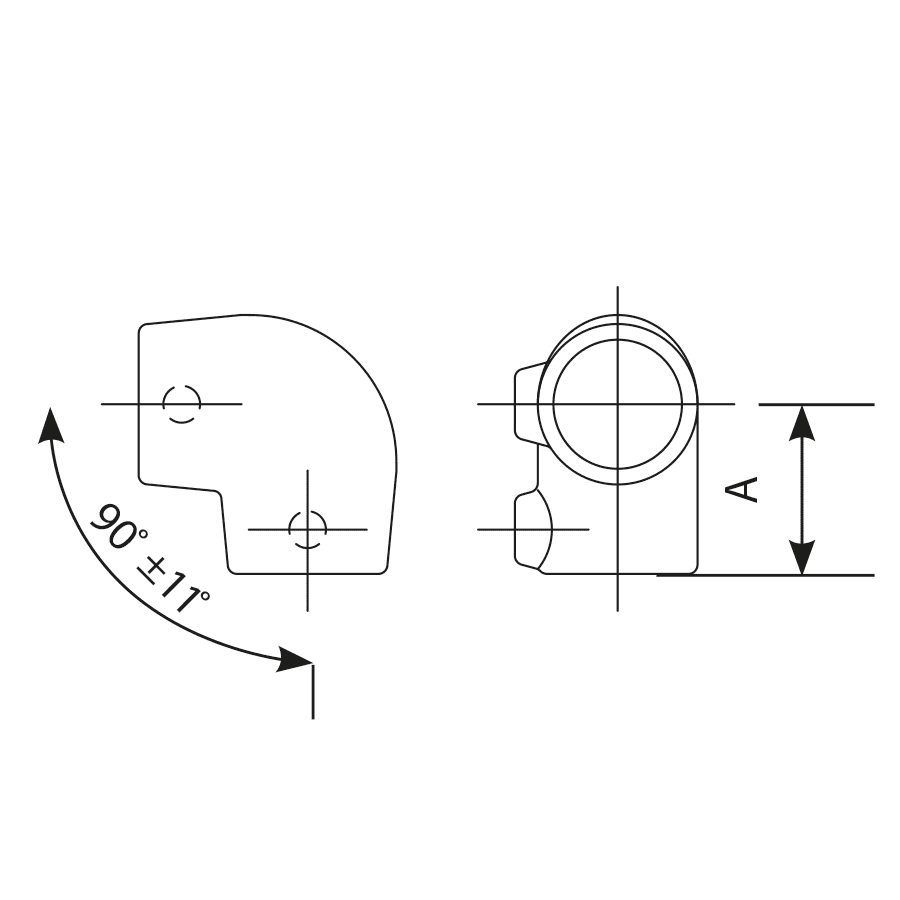

The C50 Slope Elbow is an elbow for ramps, adjustable from 0° to 11°. Both tubes stop inside the fitting. Use it at the ends of a ramp handrail where the rail turns to run level.
It is one of five matched ramp fittings: C50 elbow, C51 and C52 tees, C53 base and C54 cross.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting
- Dimensions and weight: available on request from our technical team
Use with
C51 Short Slope Tee (0° to 11°), C52 Long Slope Tee (0° to 11°), C53 Slope Base (0° to 11°), C54 Slope 2 Socket Cross (0° to 11°)
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
