Description

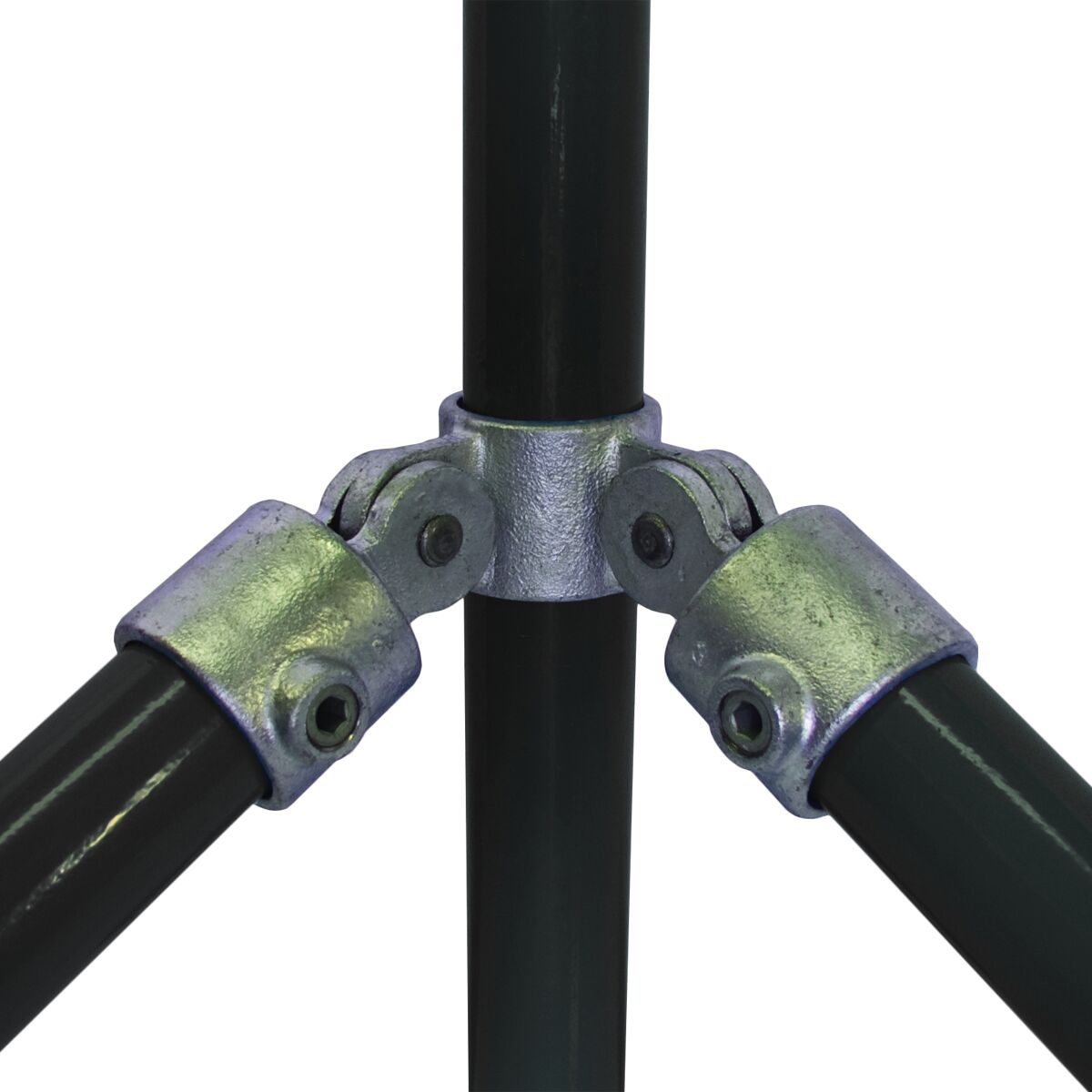

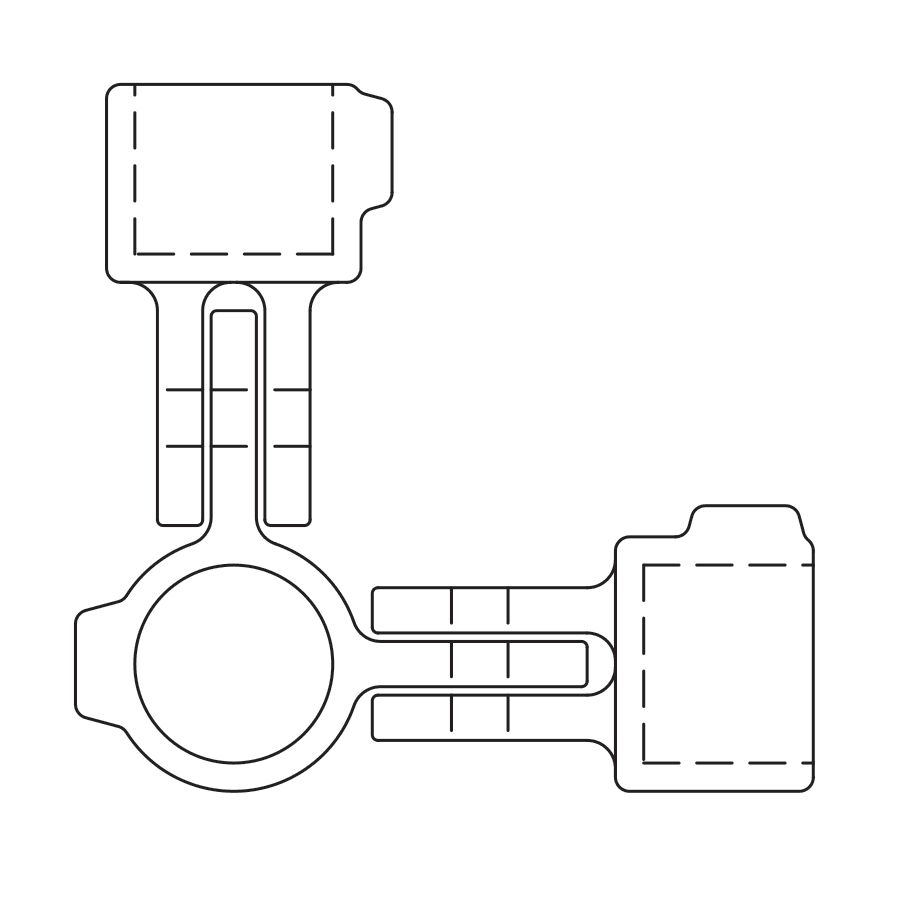

The C48 90° Corner Swivel Combination is a C38 corner male swivel with two C36 female swivels, assembled, giving an angled corner joint at a post. Use it for the mid rail of a sloping handrail that turns a corner, or to brace a structure.
Set both rail angles independently.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting
- Dimensions and weight: available on request from our technical team
Use with
C38 90° Corner Male Swivel, C36F Female Swivel, C47 Double Swivel Combination
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
