Description
The C47 Double Swivel Combination is a C37 double male swivel with two C36 female swivels, assembled, giving an in-line adjustable joint through a post. Use it for the mid rail of a sloping handrail at an intermediate post, or for bracing.

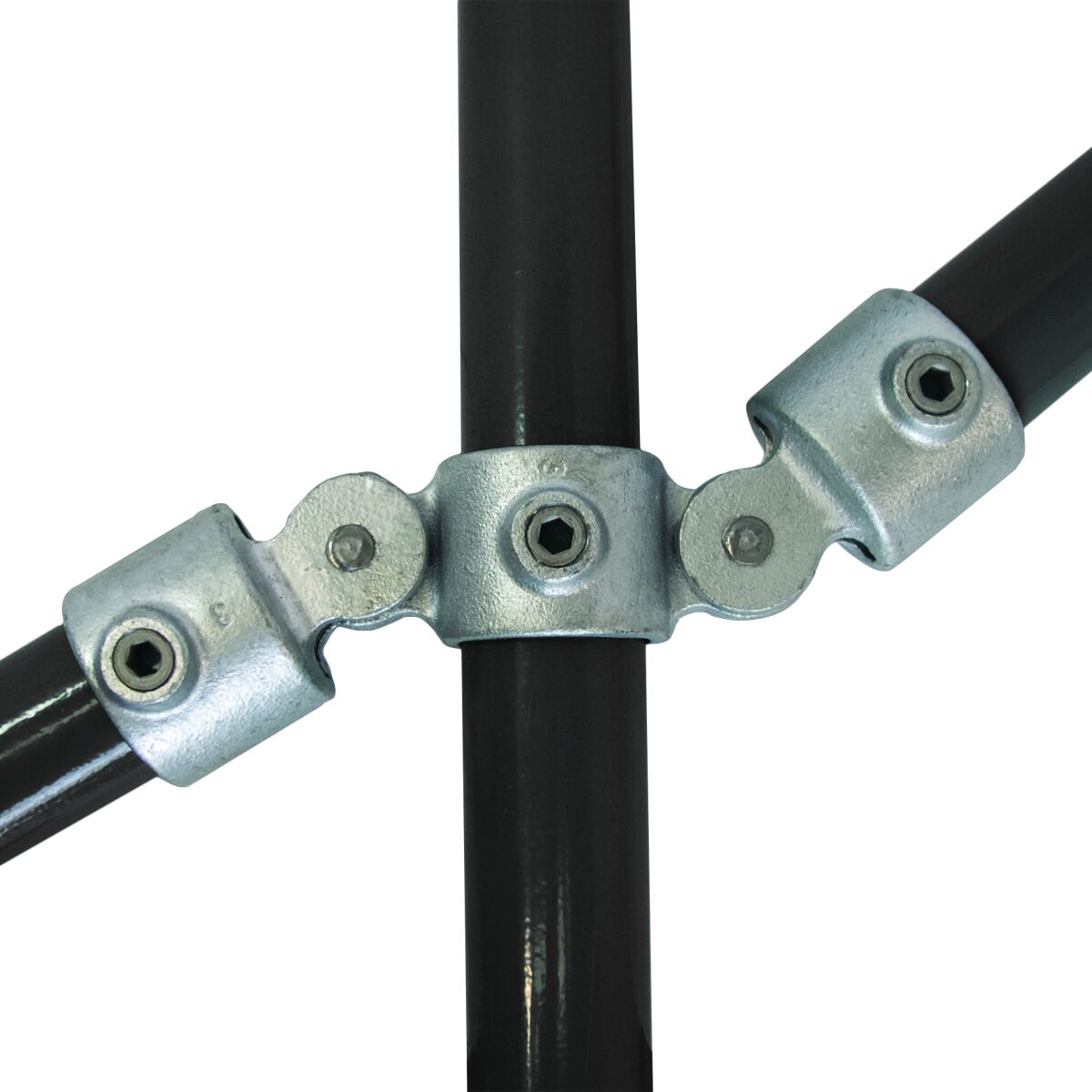

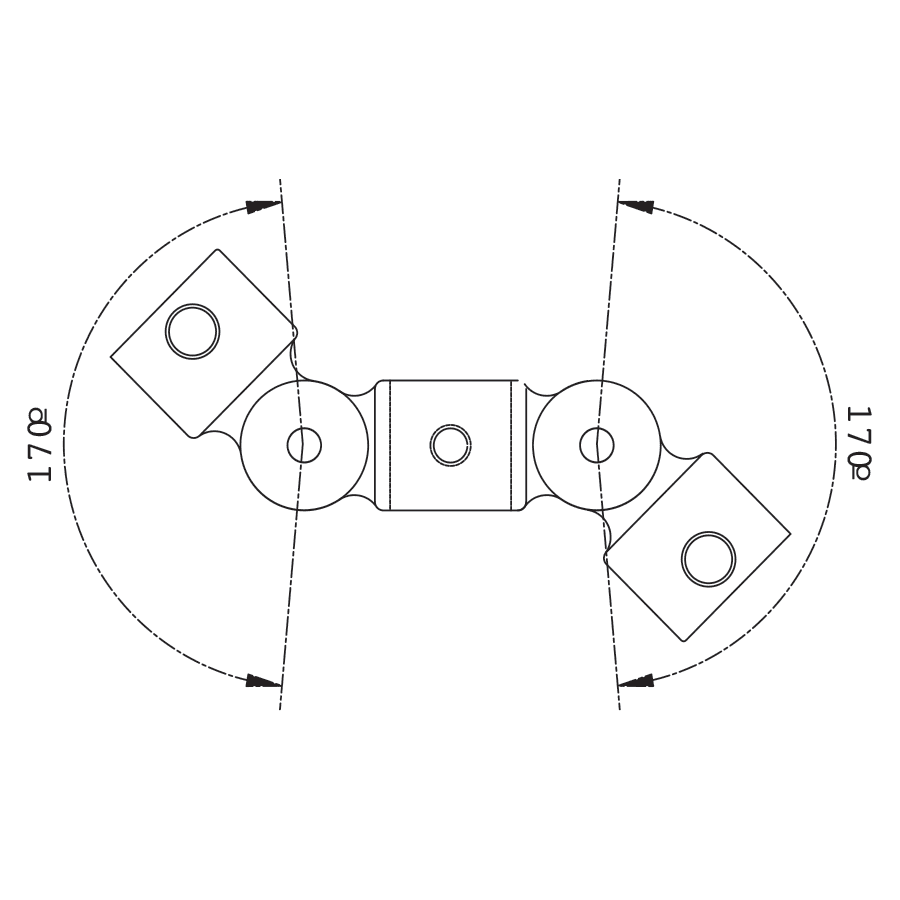

The upright passes through the centre; the two rails pivot to the slope.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting
- Dimensions and weight: available on request from our technical team
Use with
C37 Double Male Swivel, C36F Female Swivel, C45 Single Swivel Combination
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
