Description

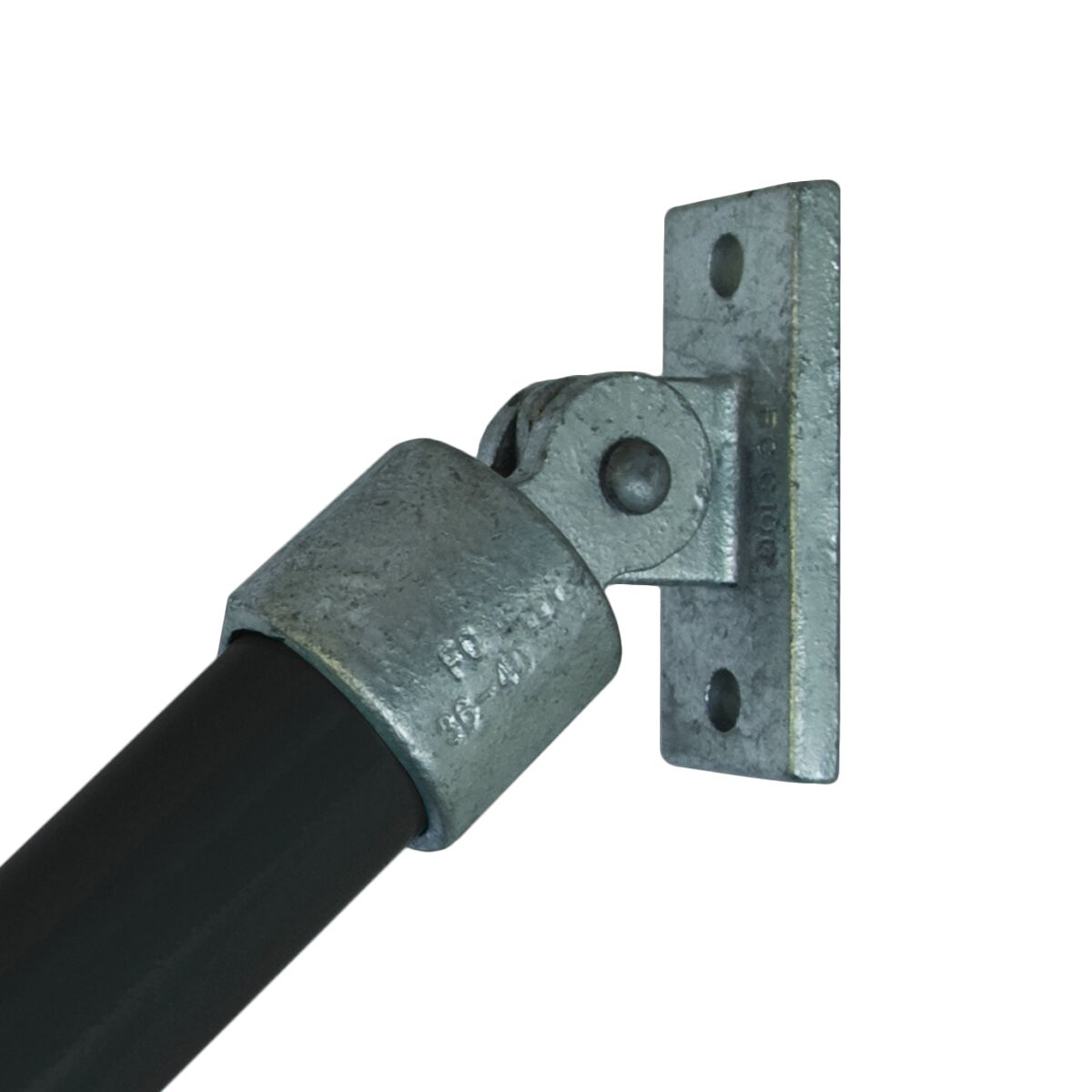

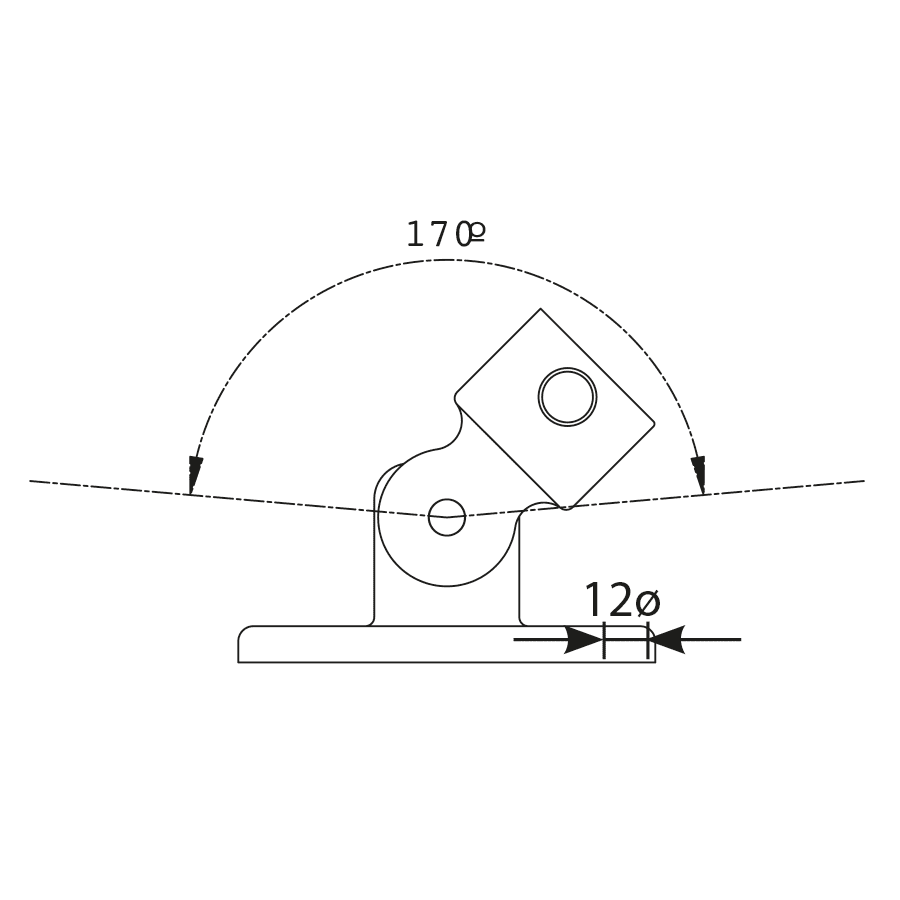

The C46 Base Swivel Combination is a C10 swivel base and C36 female swivel supplied assembled, giving an angled floor or wall mounting for a raked post or brace.
It is not a railing base on its own; it needs other support. For a post that carries guardrail load use the C12.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting
- Dimensions and weight: available on request from our technical team
Note: Not to be used as a railing base without suitable support.
Use with
C10G Swivel Base, C36F Female Swivel, C12 Railing Base Flange
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
