Description

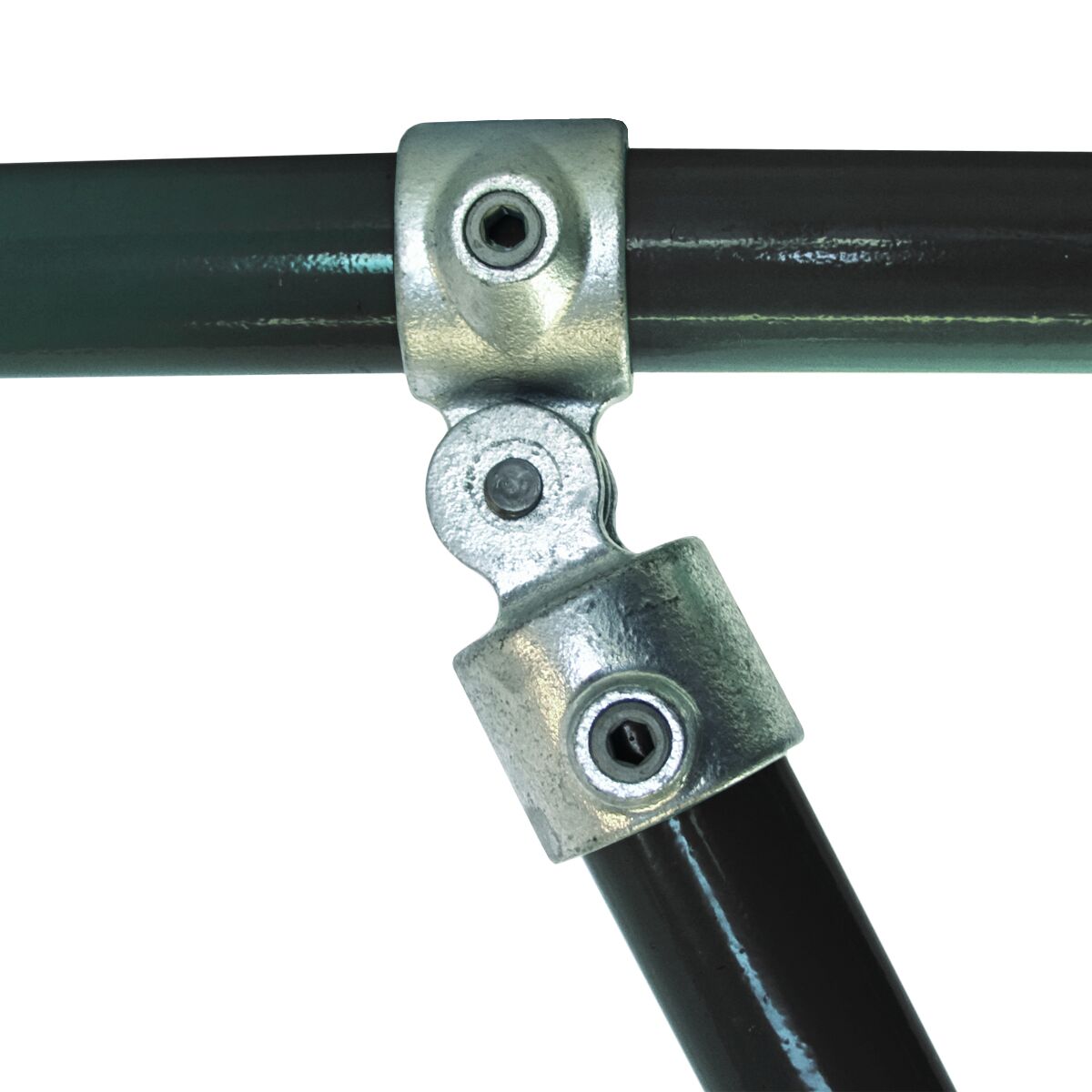

The C45 Single Swivel Combination is a C35 male and C36 female swivel supplied assembled, giving an angled tee between two tubes. Use it to carry a handrail down a slope, or to add a bracing strut to a frame at whatever angle the geometry needs.

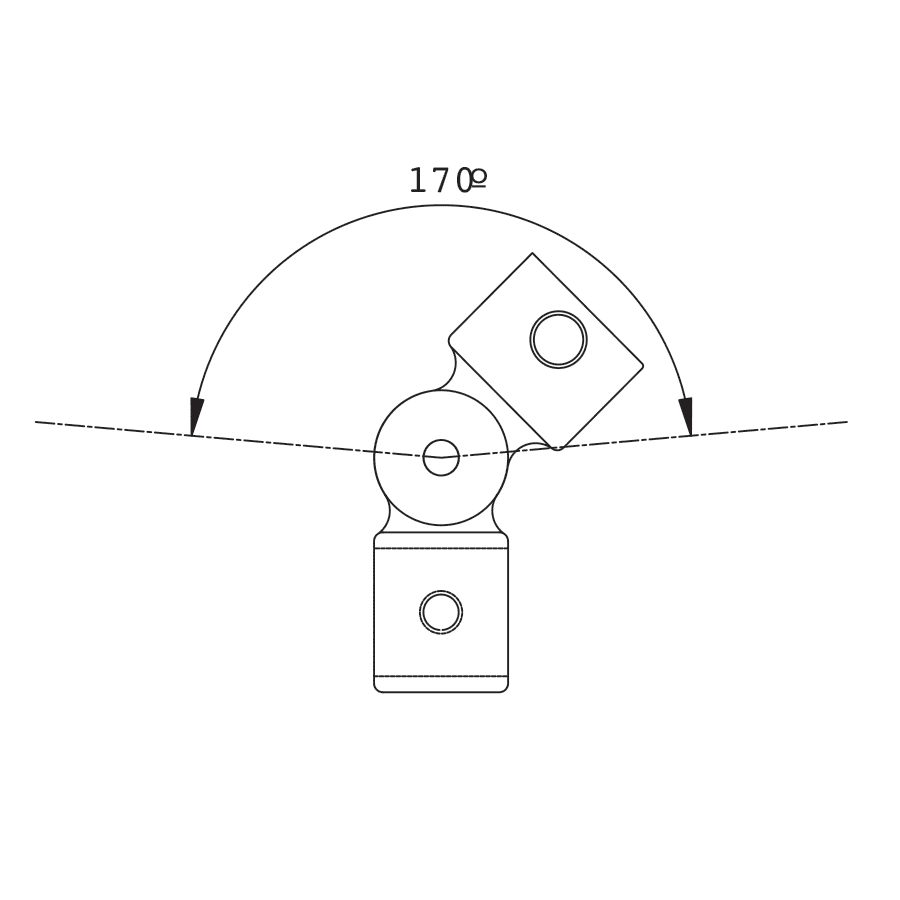

Set the angle, tighten the grub screws, then tighten the pivot.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting
- Dimensions and weight: available on request from our technical team
Use with
C35 Male Swivel, C36F Female Swivel, C47 Double Swivel Combination
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
