Description

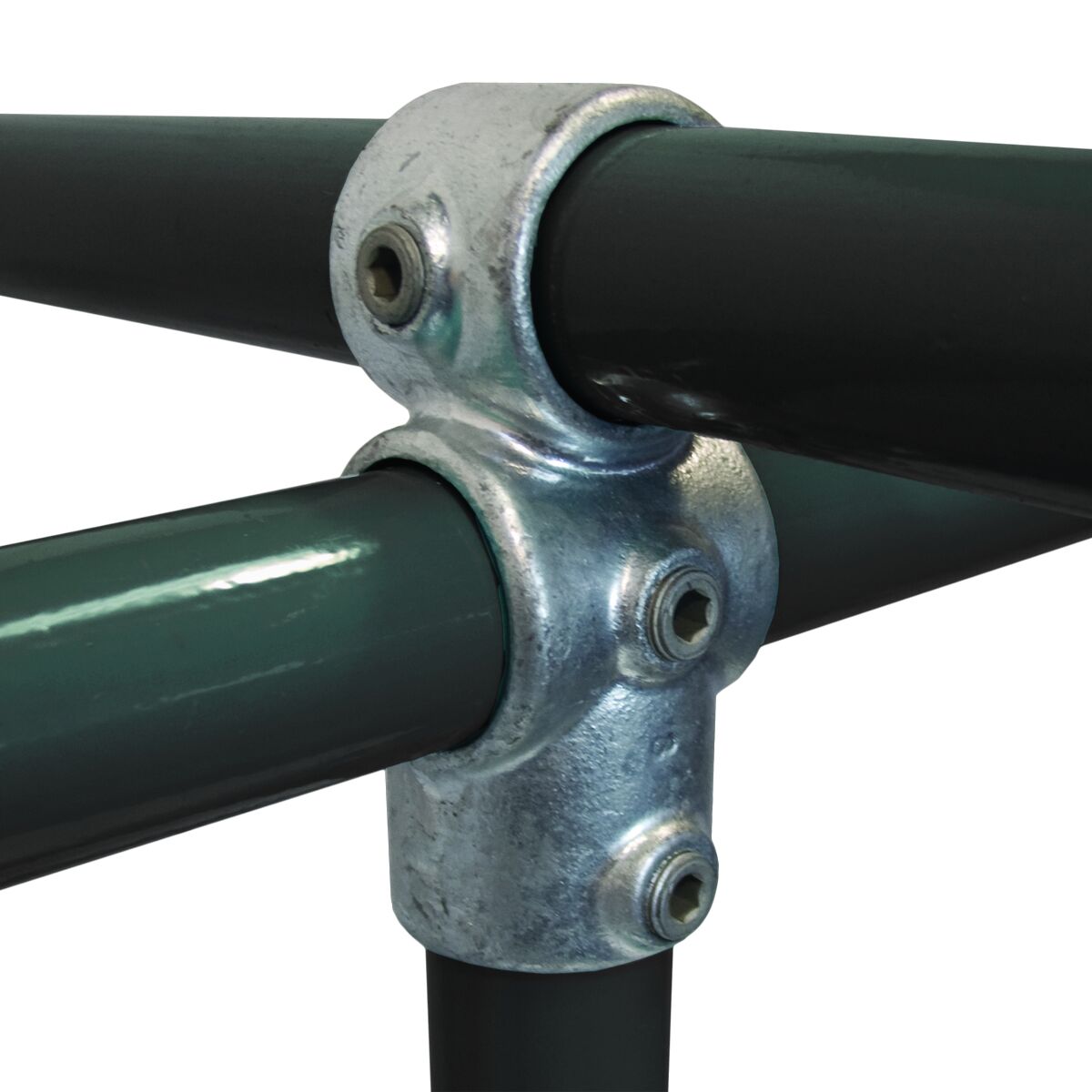

The C43 Combination Socket is for racking and shelving frames. It lets a crossover be combined with a cross tie at the same point, so a horizontal member and a diagonal tie can meet the upright in one fitting.
Use it with the C40 crossover and C07 45° tee.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting

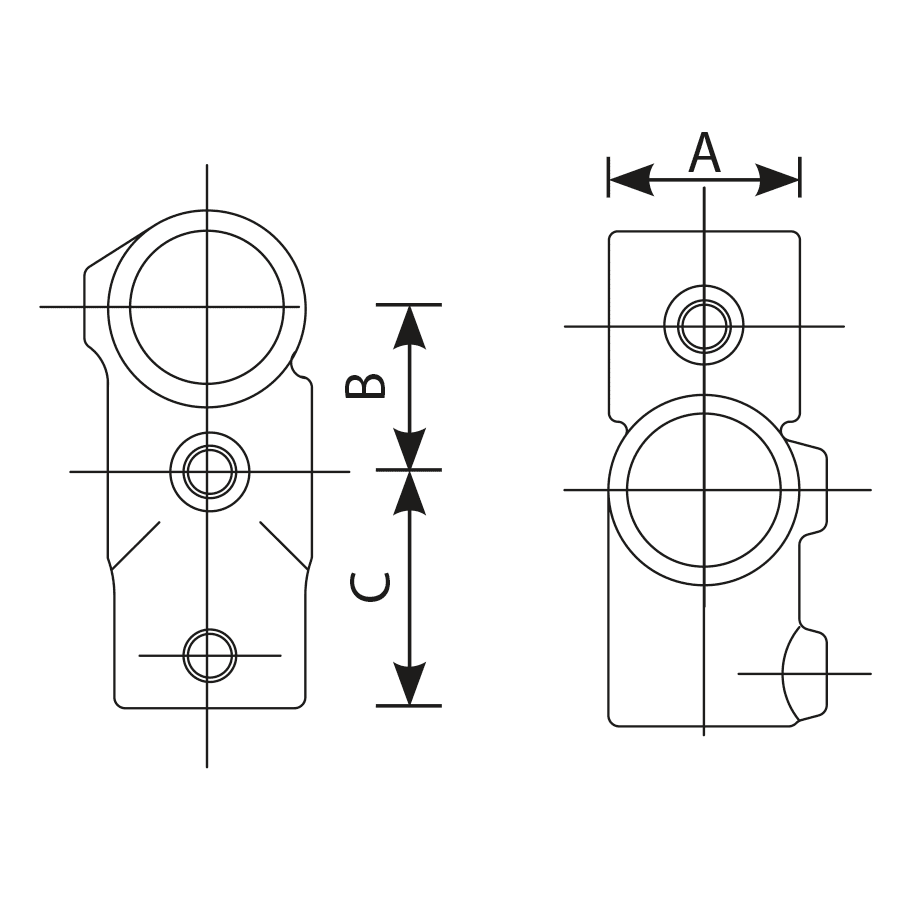

- Dimensions and weight: available on request from our technical team
Use with
C40 90° Crossover, C07 45° Tee, C22 Two Socket Cross
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
