Description

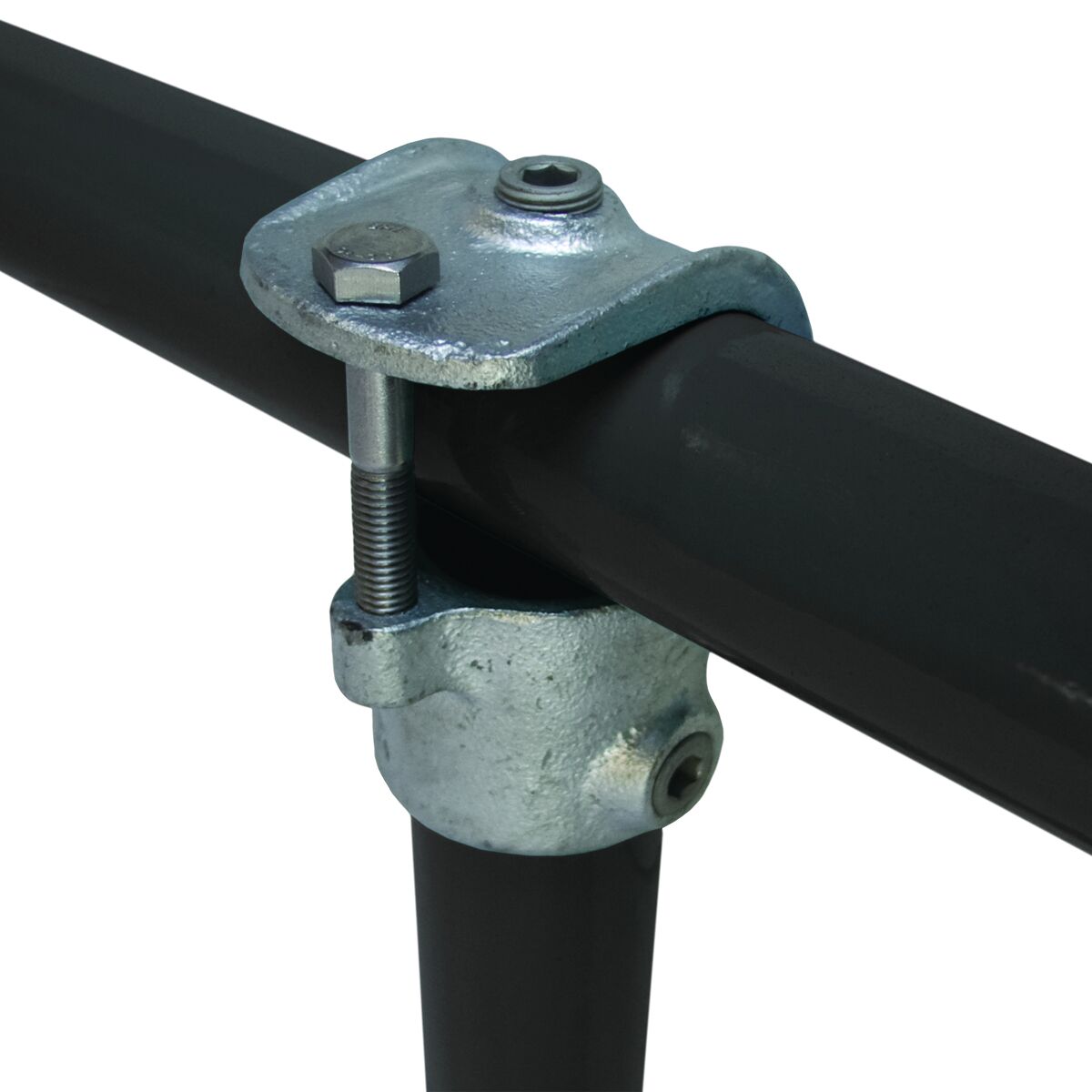

The C41 Clamp on Tee lets you add a new tube to an existing structure without dismantling anything. The clamp half bolts around the existing tube with an M10 stainless steel bolt; the socket takes the new tube.
Maximum torque on the bolt is 15Nm. For a crossover rather than a tee, use the C42.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting

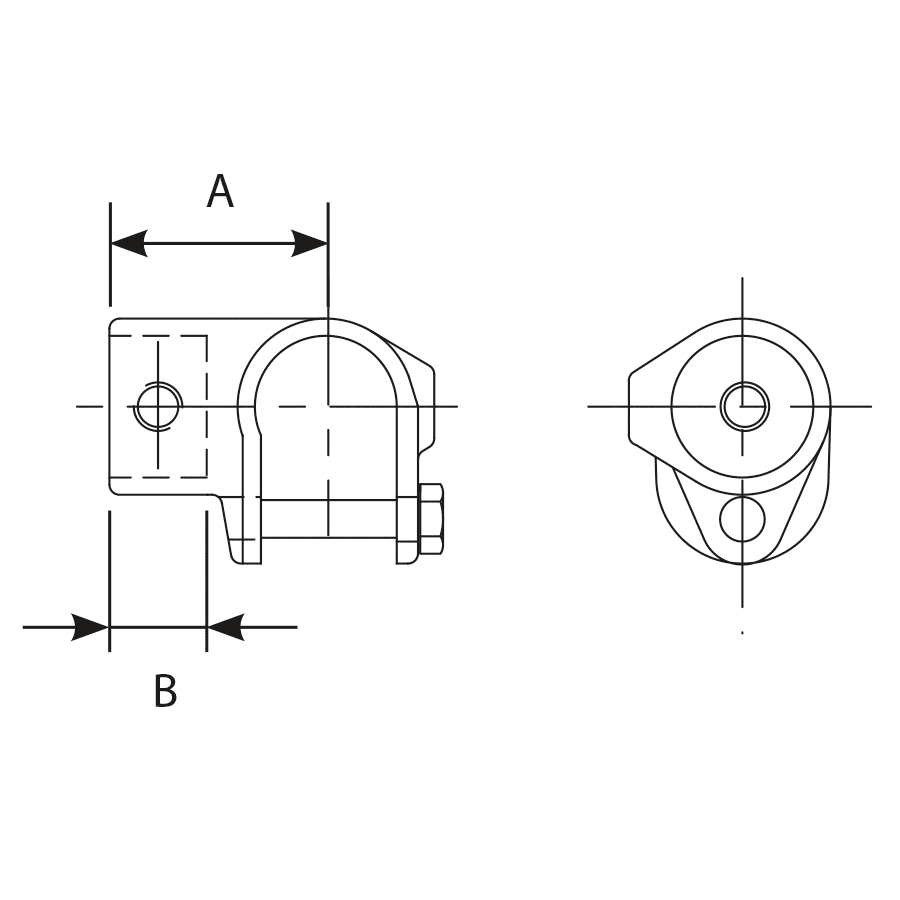

- Dimensions and weight: available on request from our technical team
Note: Maximum bolt torque 15Nm.
Use with
C42 Clamp on Crossover, CA03 Add On Short Tee, CA40 Add On 90° Crossover
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
