Description

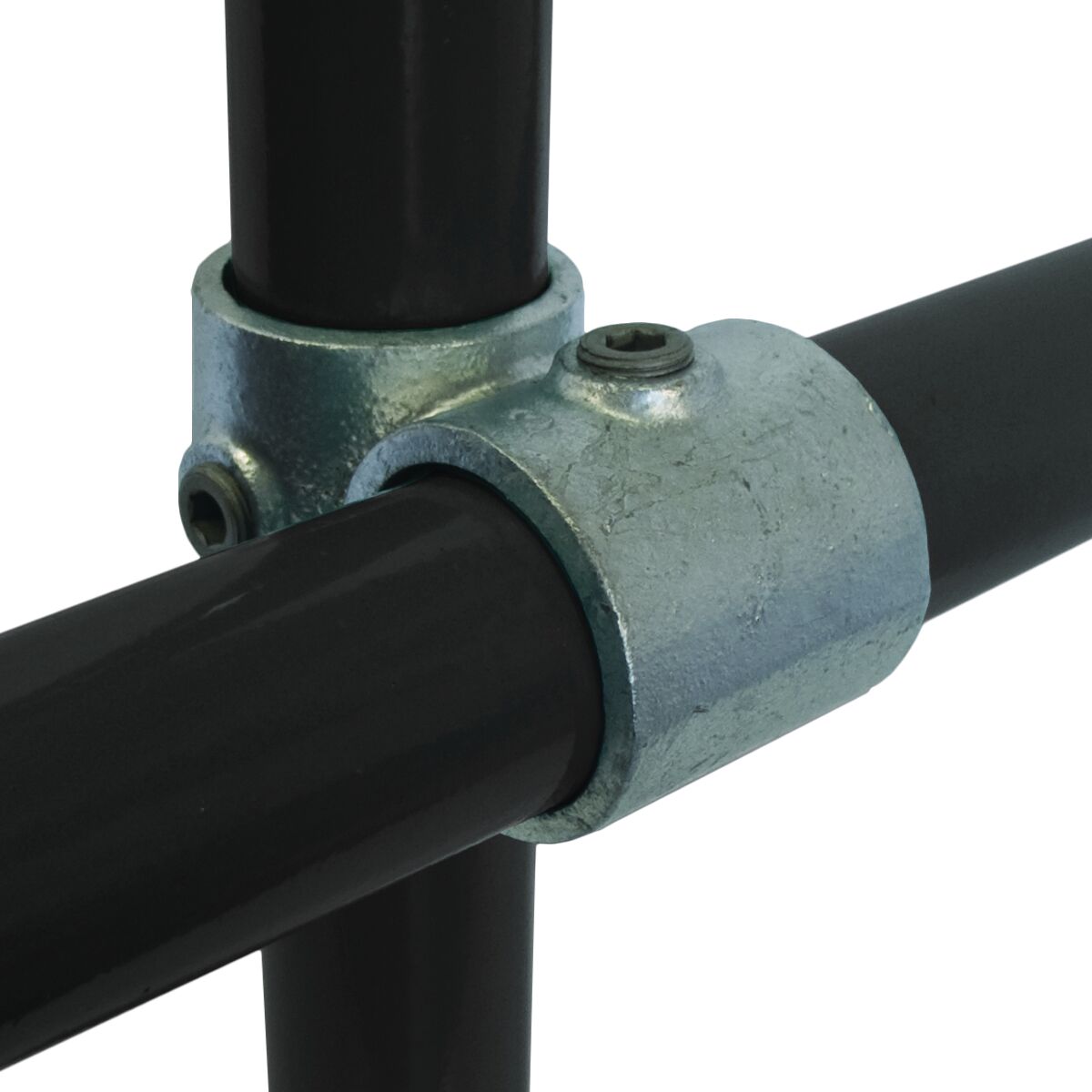

The C40 90° Crossover joins two tubes that cross at 90° without either tube stopping. It is used where continuous standard lengths of tube run past each other, in handrail, racking, fencing and net frames.
Do not join tubes inside a C40. Tube joints should use the C00 or C01.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting

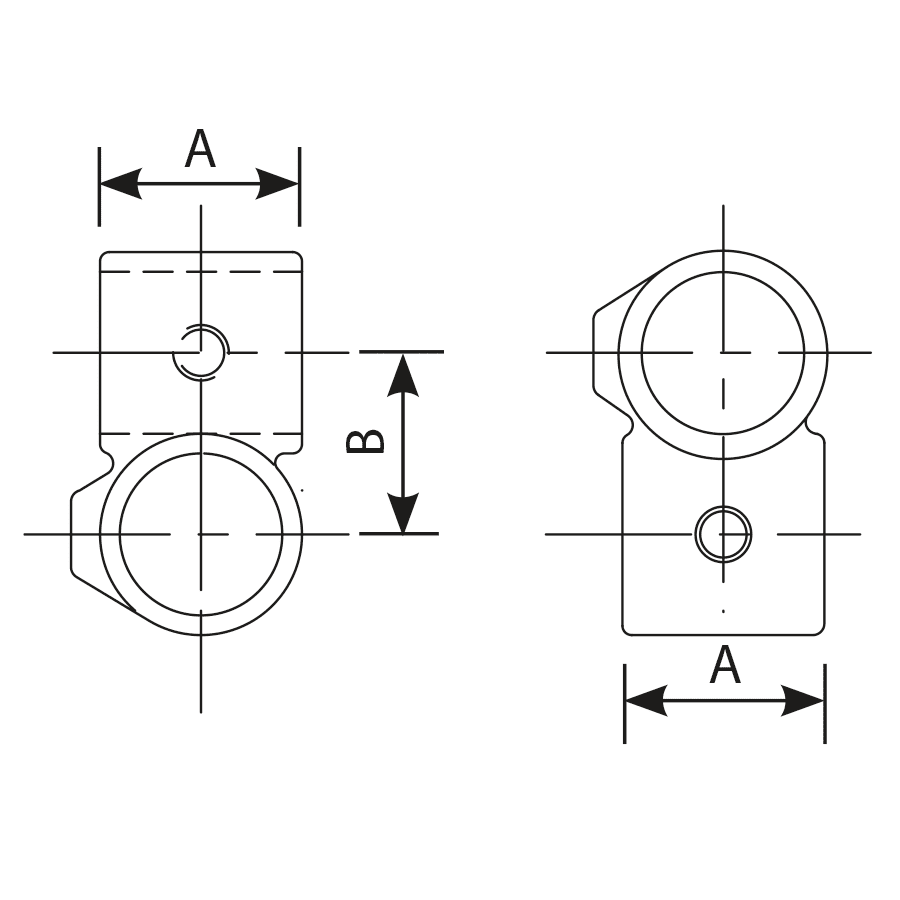

- Dimensions and weight: available on request from our technical team
Use with
C00 Sleeve Joint, C43 Combination Socket, CA40 Add On 90° Crossover
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
