Description
The Double Male Swivel is designed as part of the swivel combination group of fittings. It can be used with two C36 female swivel fittings. The double swivel combination is also available assembled as a type C47 fitting
C37 Double Male Swivel
Part code: C37
The Double Male Swivel is designed as part of the swivel combination group of fittings. It can be used with two C36 female swivel fittings. The double swivel combination is also available assembled as a type C47 fitting

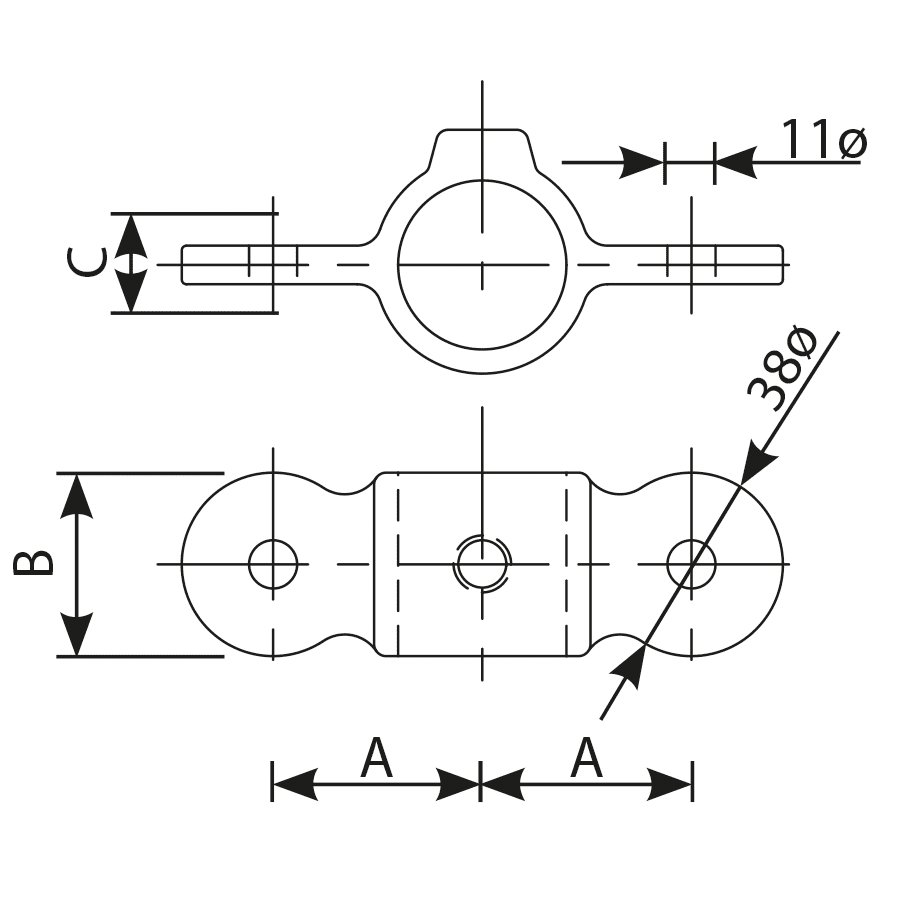

| # Tube Size A B C Ø kg |
| G2026.9 40 32 8 11 0.21 |
| G2533.7 44 32 8 11 0.28 |
| G3242.4 49 32 8 11 0.32 |
| G4048.3 52 32 8 11 0.46 |
| G5060.3 63 50 8 11 0.51 |
