Description
The Female Swivel is designed as part of the swivel combination group of fittings. It can be used with the C10, C35, C37, C38 or C36M male swivel fittings.

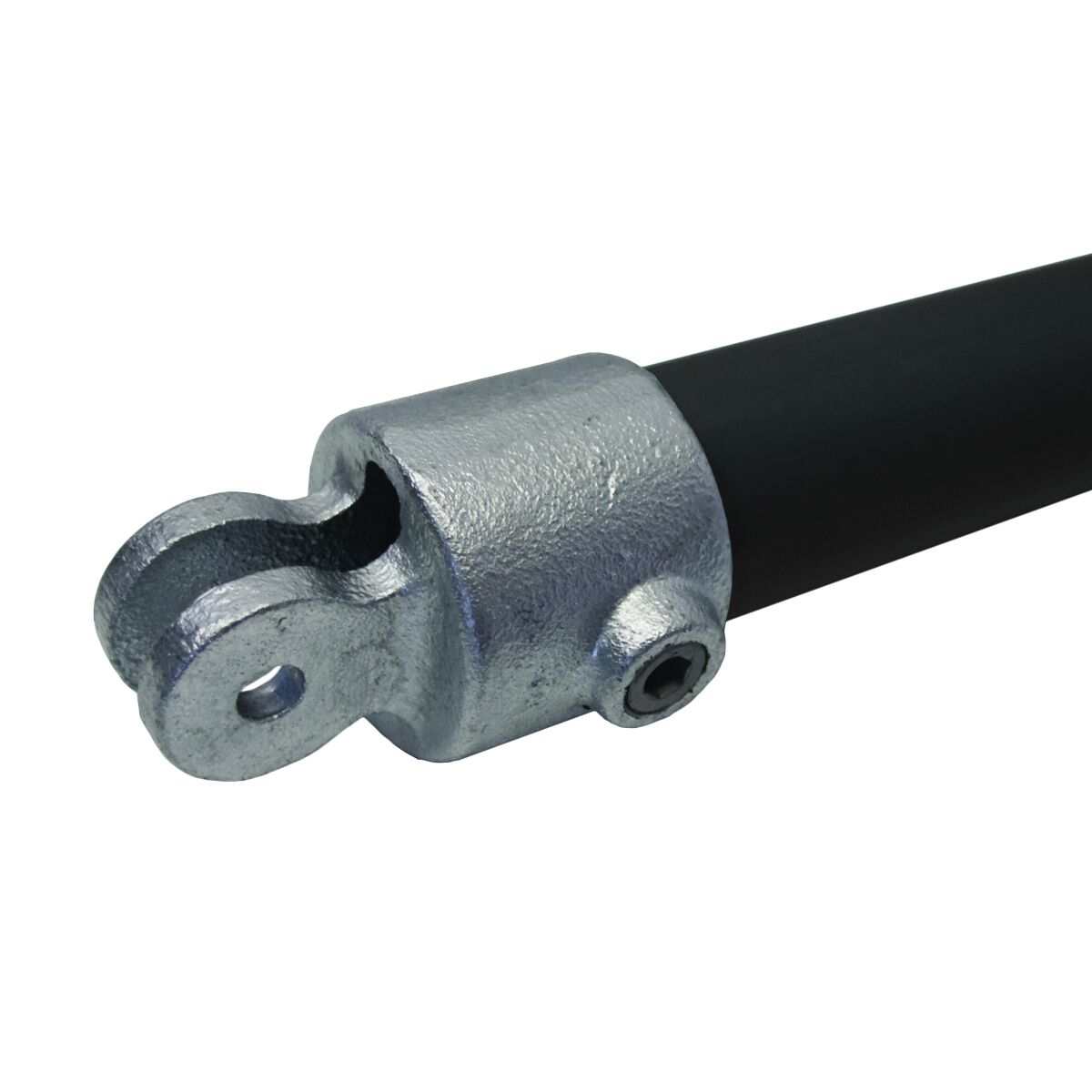

C36F Female Swivel
Part code: C36F
The Female Swivel is designed as part of the swivel combination group of fittings. It can be used with the C10, C35, C37, C38 or C36M male swivel fittings.

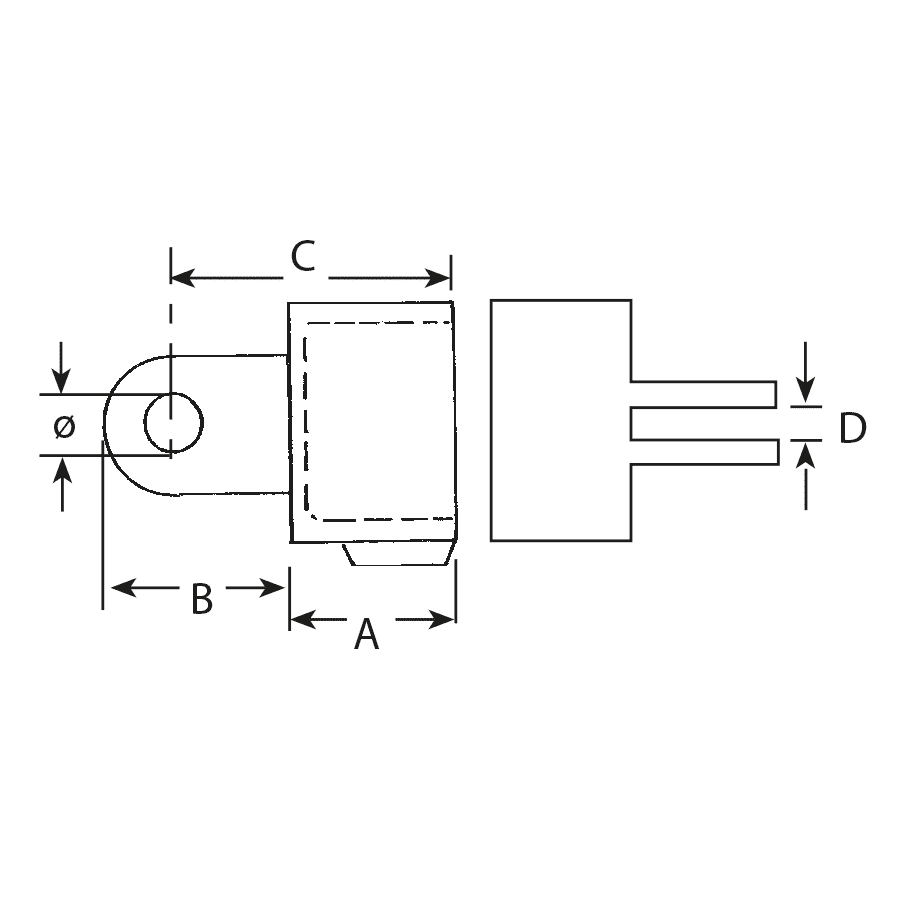

| # Tube Size A B C D Ø kg |
| G2026.9 39 35 58 10 11 0.24 |
| G2533.7 41 35 60 10 11 0.33 |
| G3242.4 44 35 63 10 11 0.38 |
| G4048.3 50 35 70 10 11 0.46 |
| G5060.3 70 40 95 10 11 0.84 |
