Description

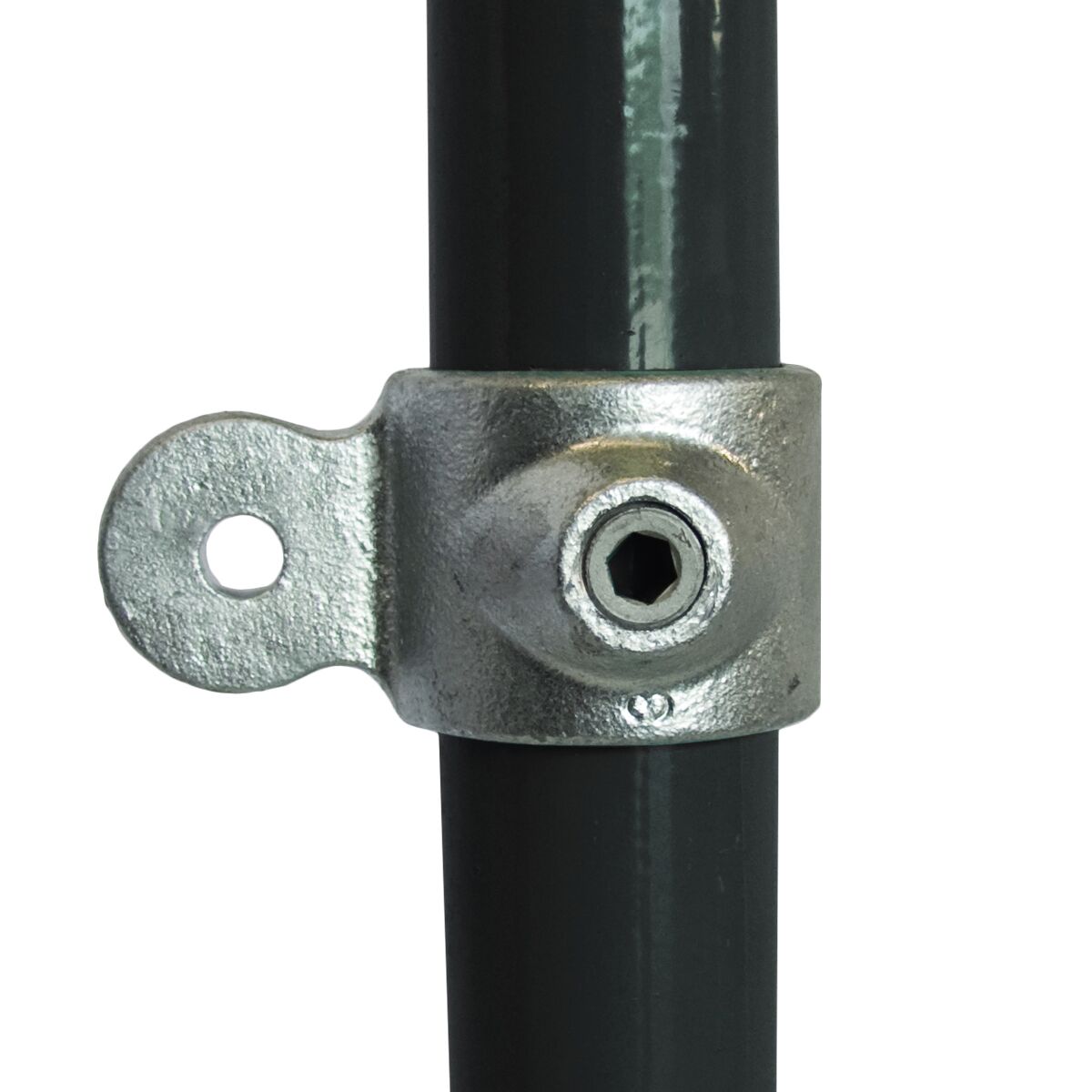

The C35 Male Swivel clamps to a tube and provides a single swivel lug. On its own it takes a shackle and chain; with a C36 Female Swivel it forms a joint that mounts a rail at any angle for slopes and braces. It can also carry flat sheets or boards.
It is available assembled with C36 fittings as the C45 Single Swivel Combination.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting

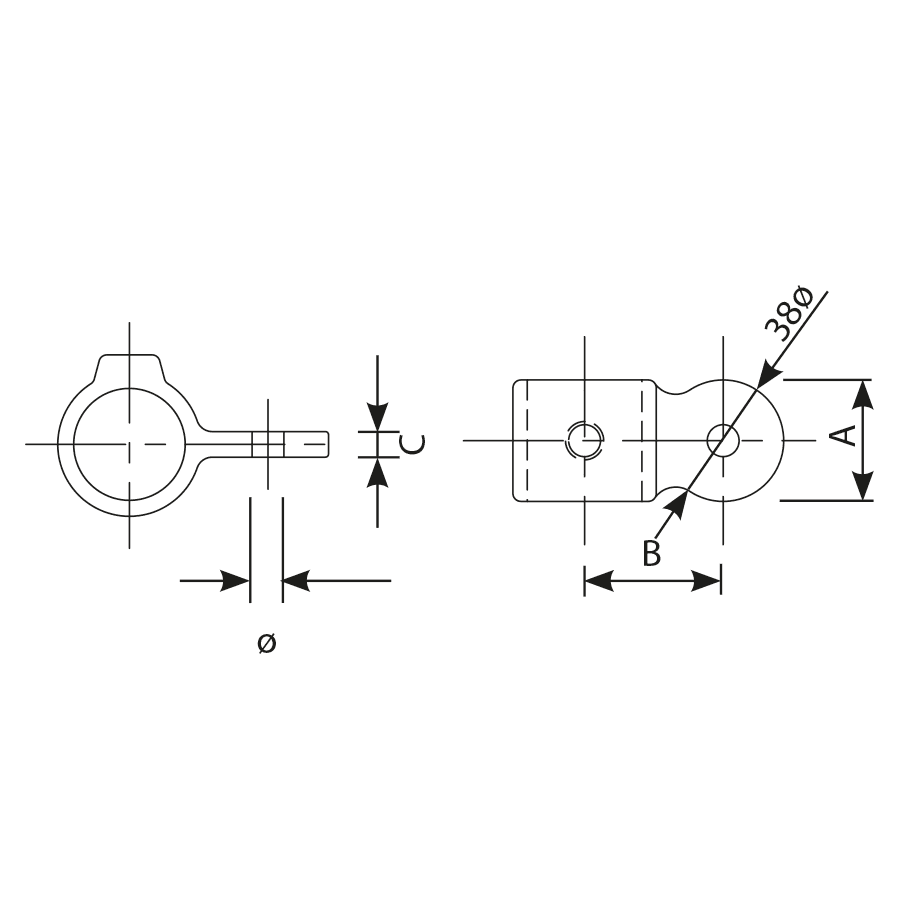

- Dimensions and weight: available on request from our technical team
Use with
C36F Female Swivel, C45 Single Swivel Combination, C33 Hook
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
