Description

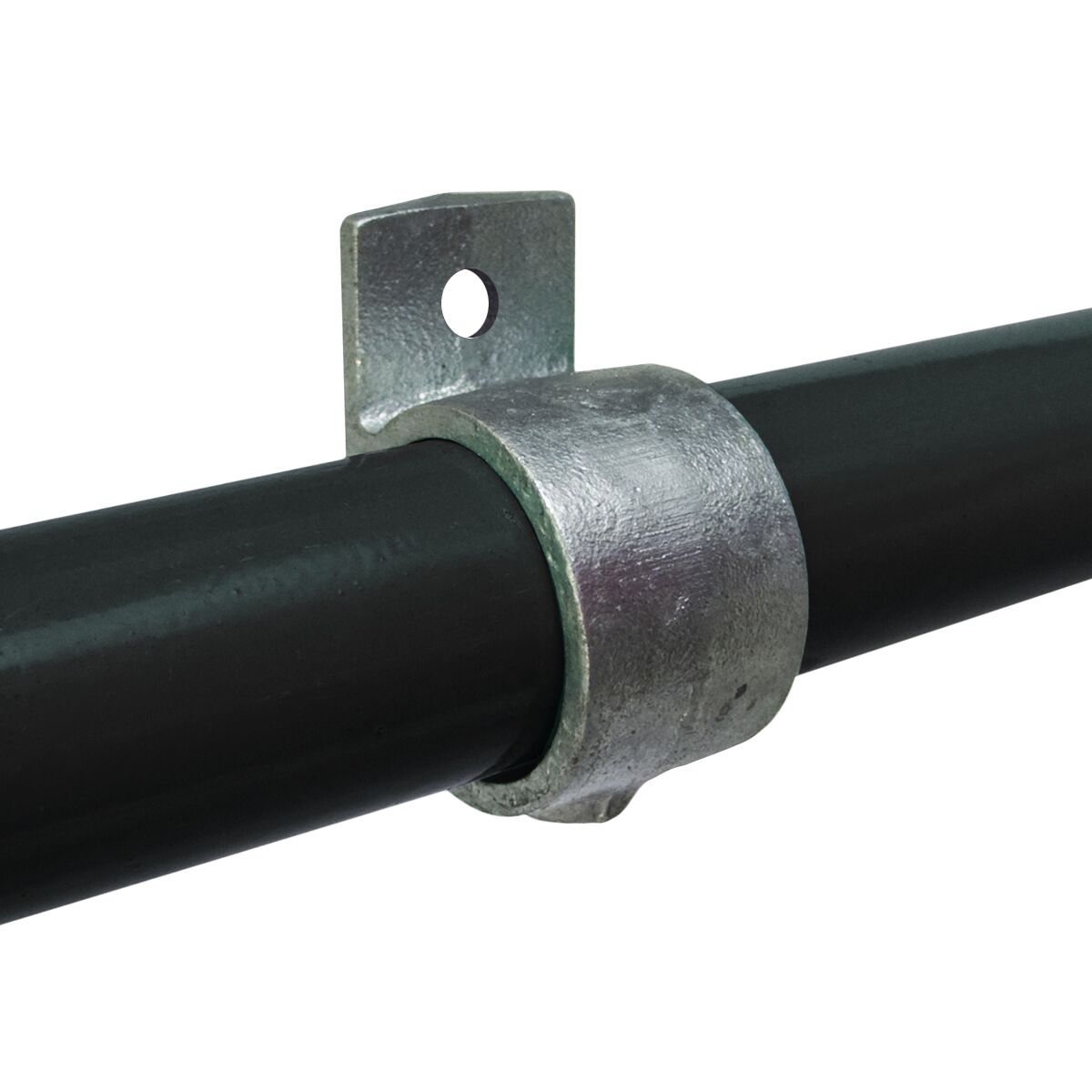

The C34 Fixing Pad clamps to a tube and presents a flat drilled pad for fixing sheets, boards, signs or mesh to the structure. It is also used as a gate stop.
The C35 Male Swivel is the alternative for board fixing where the pad needs to pivot; the C200 gives a double-sided pad.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting

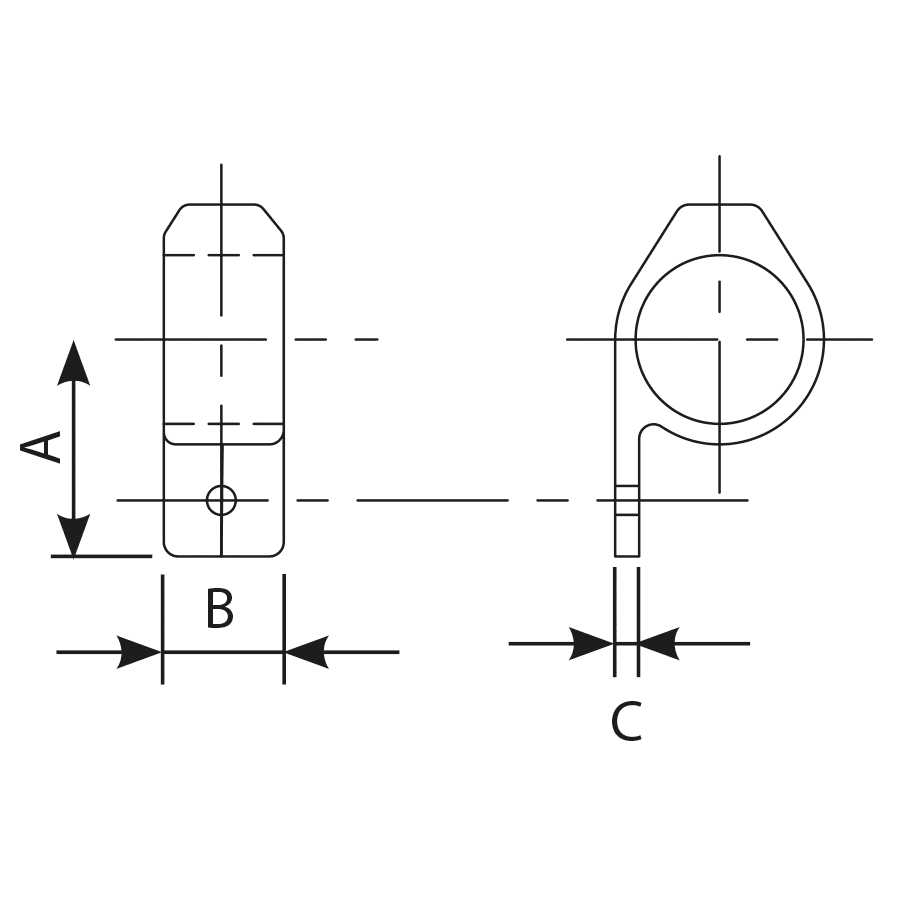

- Dimensions and weight: available on request from our technical team
Use with
C35 Male Swivel, C200 Double Sided Fixing Bracket, C66 Single Mesh Clip
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
