Description

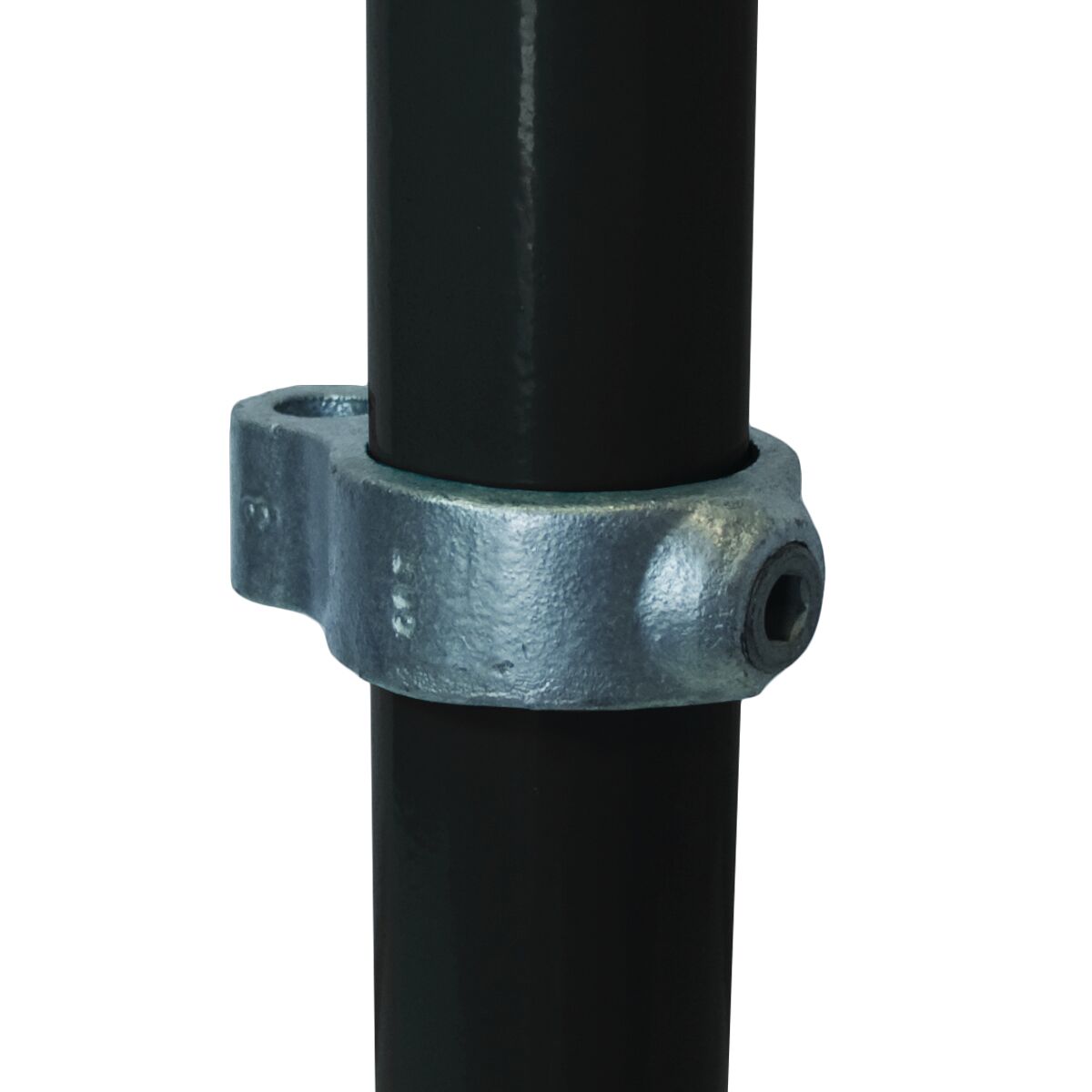

The C31 Gate Eye is the fixed half of a hinge for lightweight gates built from FastClamp tube. It clamps to the gate post and receives the pin of the C32 Gate Hinge on the gate leaf.
For heavy gates, use a C03 Short Tee supported on a C30 Collar as the hinge instead.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting

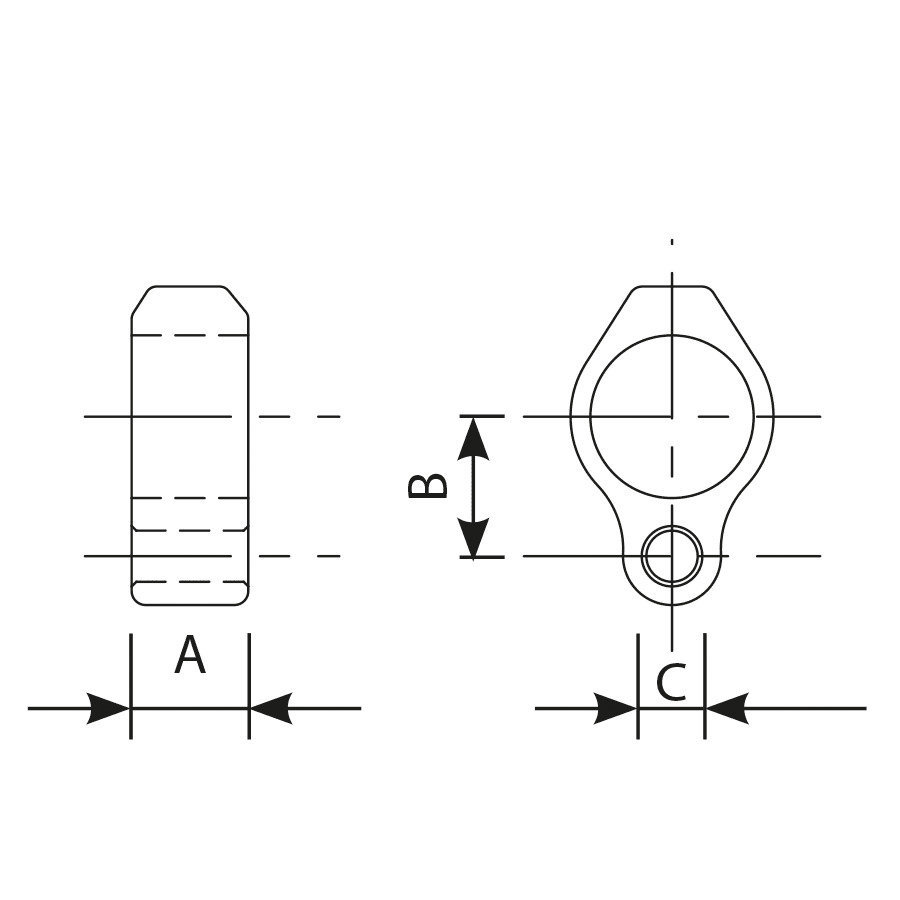

- Dimensions and weight: available on request from our technical team
Use with
C32 Gate Hinge, C30 Collar, C03 Short Tee
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
