Description

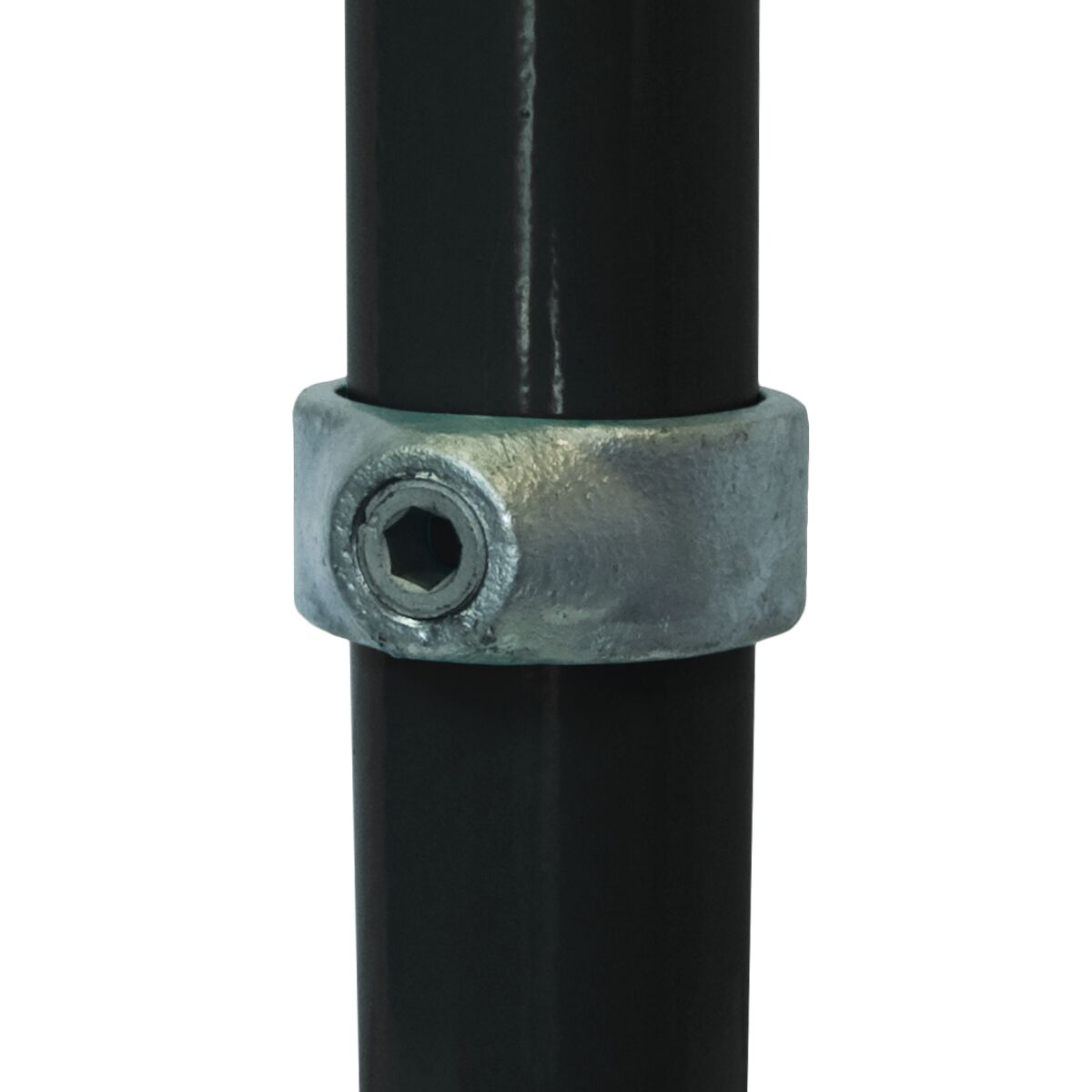

The C30 Collar clamps to a tube and stays put. Its main uses are as the support under a C03 when the tee is used as a gate hinge, as a stop for a sliding tube, and to increase the load capacity of another fitting by carrying part of the load itself.
One grub screw. Specify the same size as the tube it sits on.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting

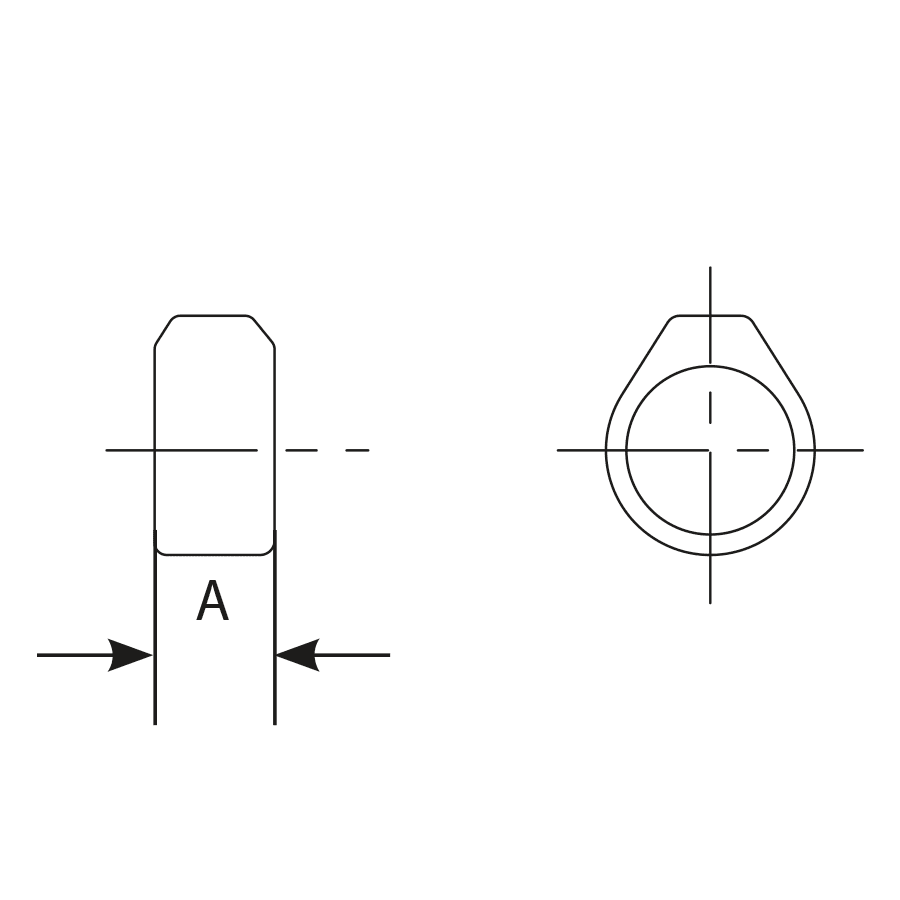

- Dimensions and weight: available on request from our technical team
Use with
C03 Short Tee, C32 Gate Hinge, C31 Gate Eye
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
