Description

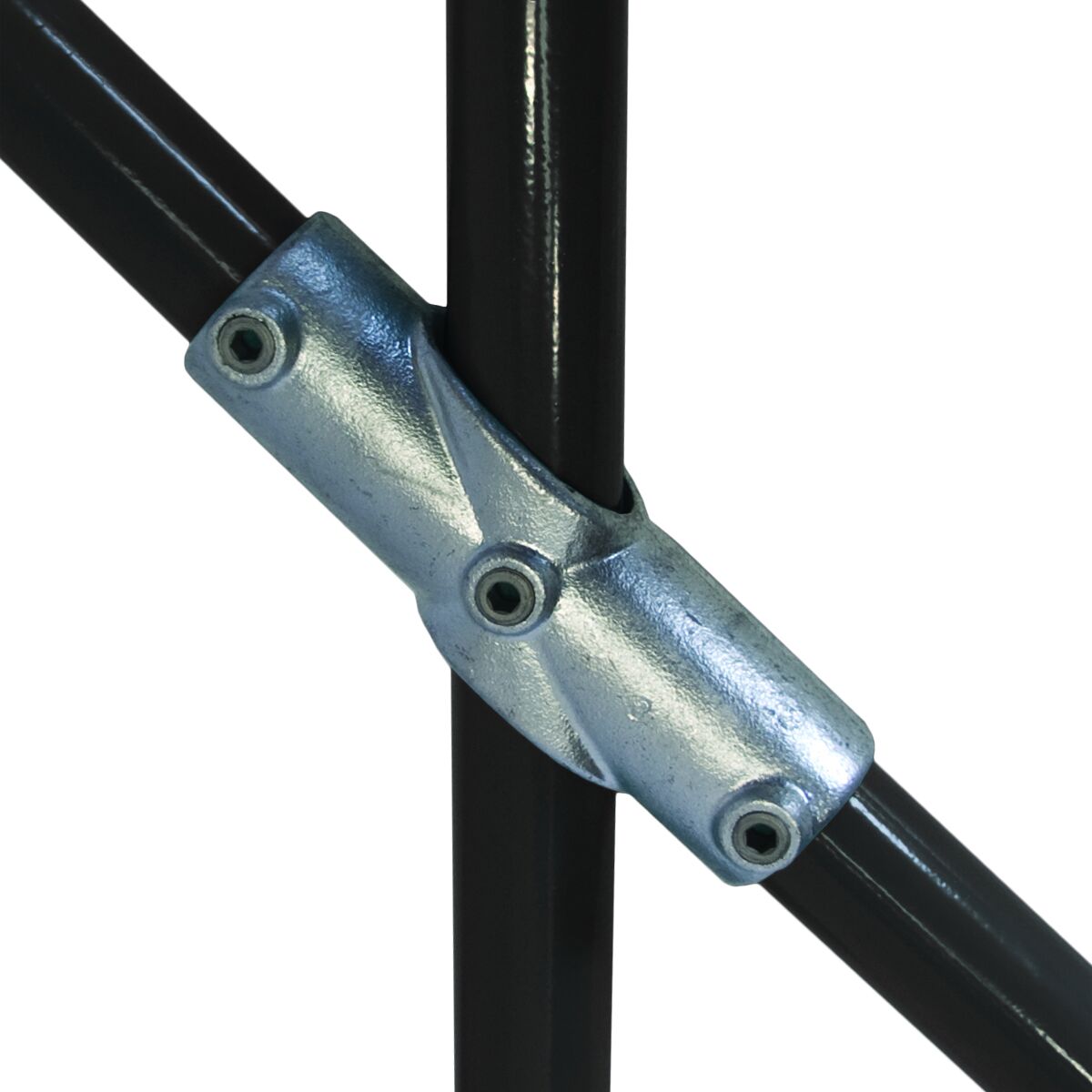

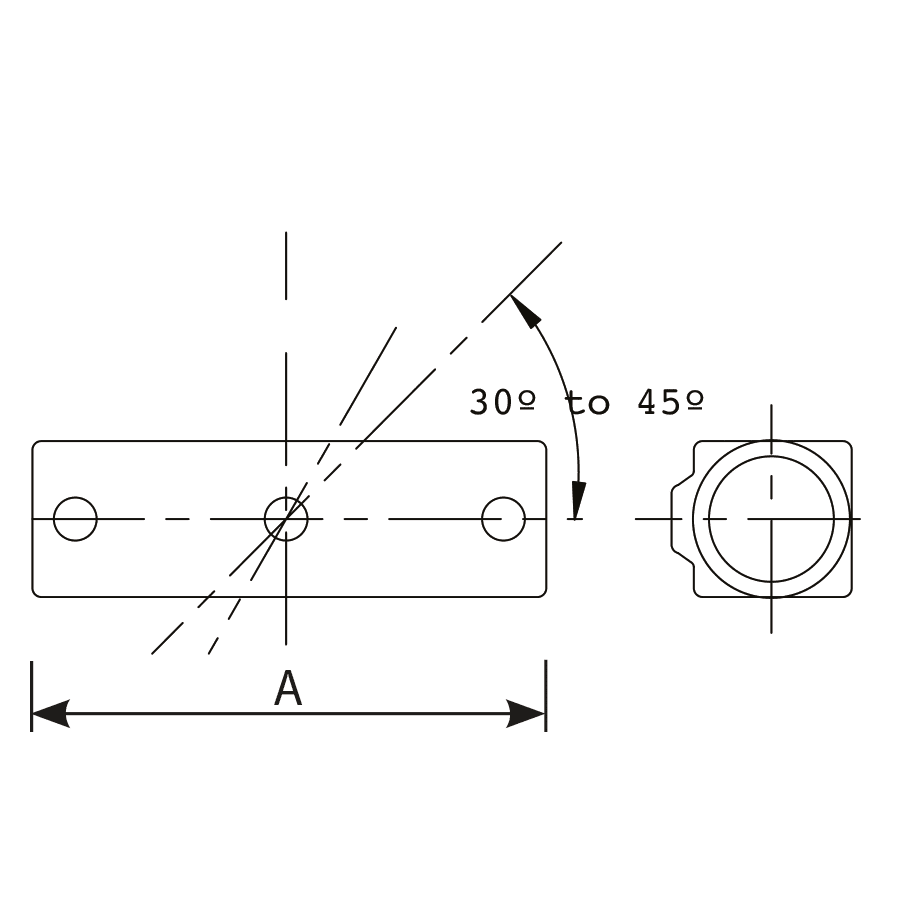

The C28 Adjustable 2 Socket Cross carries a mid rail down a slope of 30° to 45°. The upright passes through, the two rail sockets pivot to the rake angle. It is used at intermediate posts on staircases and steep ramps.
It is not recommended as the top fitting on a guardrail or balustrade. Use the C29 Adjustable Short Tee at the top rail.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting
- Dimensions and weight: available on request from our technical team
Use with
C29 Adjustable Short Tee (30° to 60°), C245 Three Socket Tee (30° to 45°), C72 Acute Angle Elbow (30° to 45°)
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
