Description

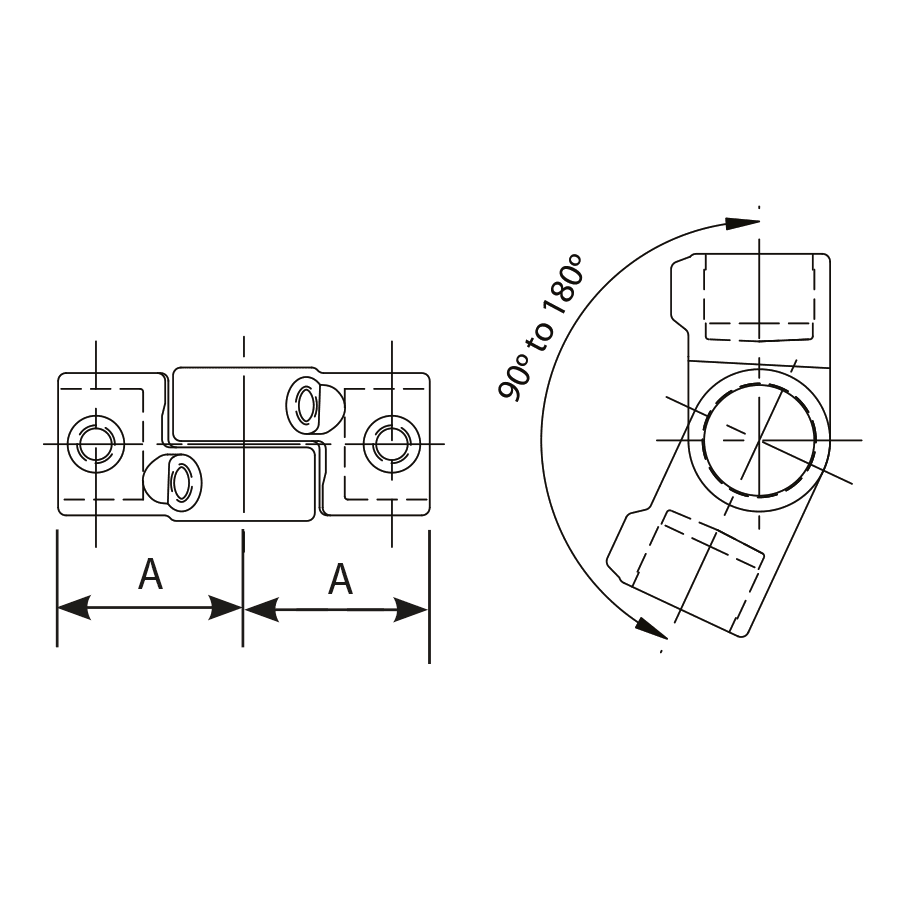

The C25 Short Tee Swivel is used in pairs to make a corner at any angle from 90° to 180°. Each half clamps a rail and the two halves pivot on a common pin, so an obtuse corner on a walkway or balcony rail needs no bending and no special fitting.
It is also used on stairs with C02 and C03 fittings, a short piece of tube and a C65 end cap at landings. Order by number of fittings, not number of pairs.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting
- Dimensions and weight: available on request from our technical team
Use with
C02 90° Elbow, C03 Short Tee, C65P Plastic End Cap
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
