Description

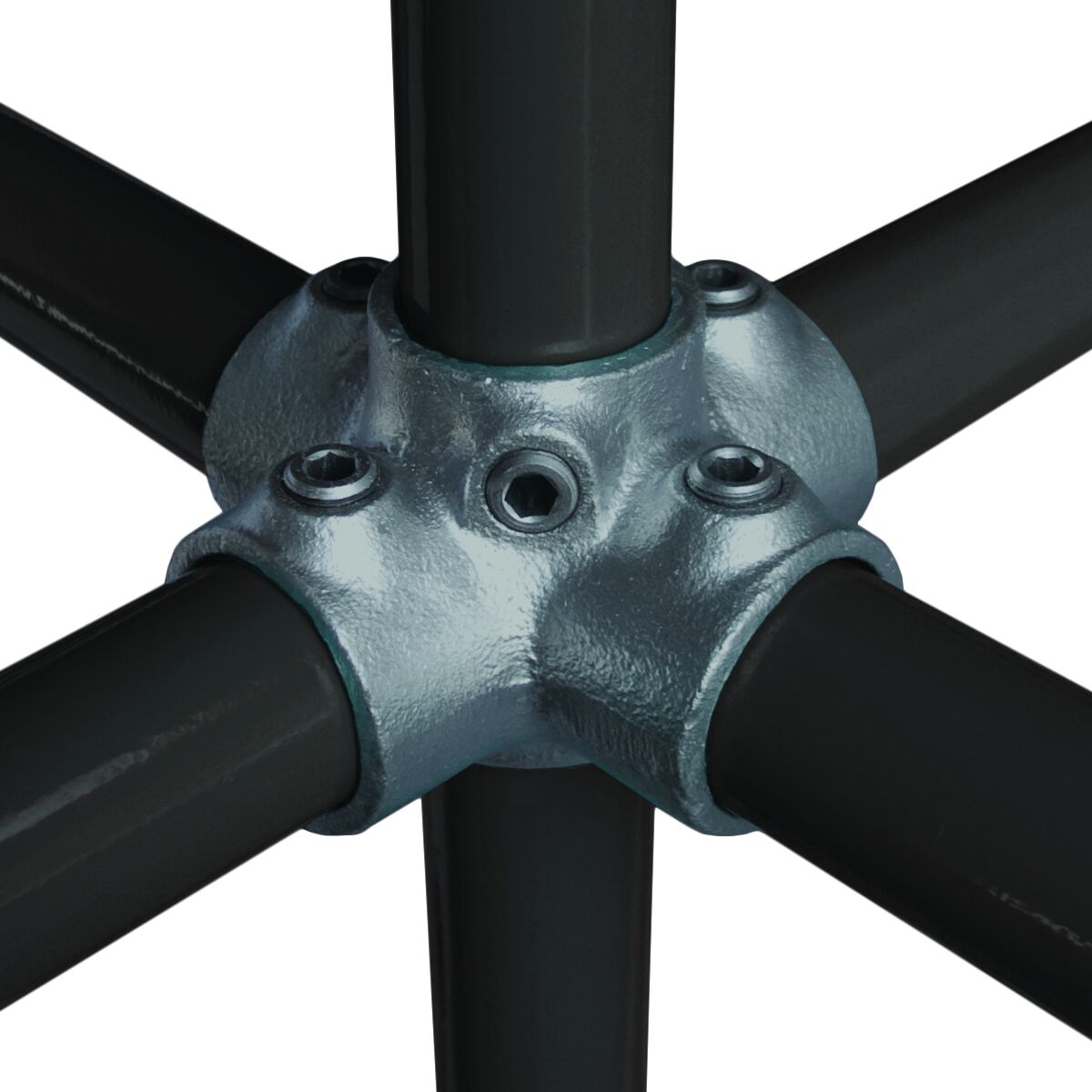

The C24 4 Way Cross with Central Tube gives a four-way mid rail joint around a continuous post: four rails at 90° to each other. It is used at the junction of two runs of guardrail or in racking and frames where members cross a post.
It can also be used on the top rail with the centre post capped with a C65 plastic end cap.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting

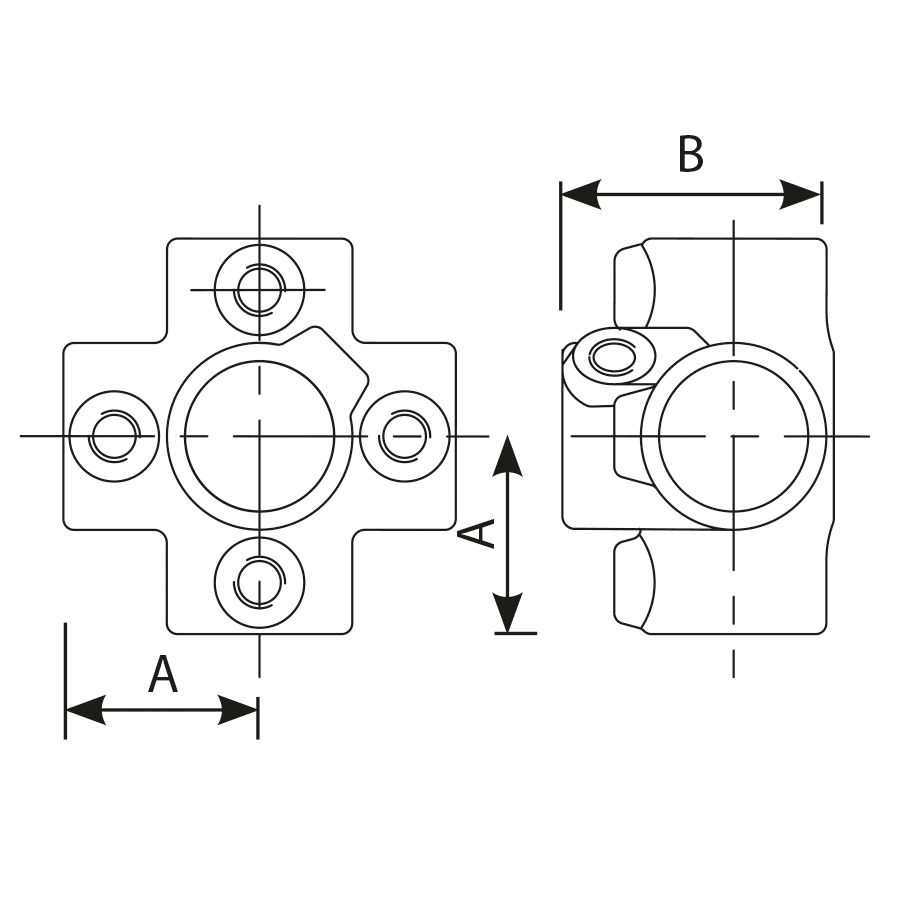

- Dimensions and weight: available on request from our technical team
Use with
C22 Two Socket Cross, C23 45° Side Outlet Tee, C65P Plastic End Cap
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
