Description
The Side Outlet Tee fitting provides a three way midrail joint for handrail and other structures. It is recommended that the handrail post is continuous through the fitting.
C23 45° Side Outlet Tee
Part code: C23
The Side Outlet Tee fitting provides a three way midrail joint for handrail and other structures. It is recommended that the handrail post is continuous through the fitting.

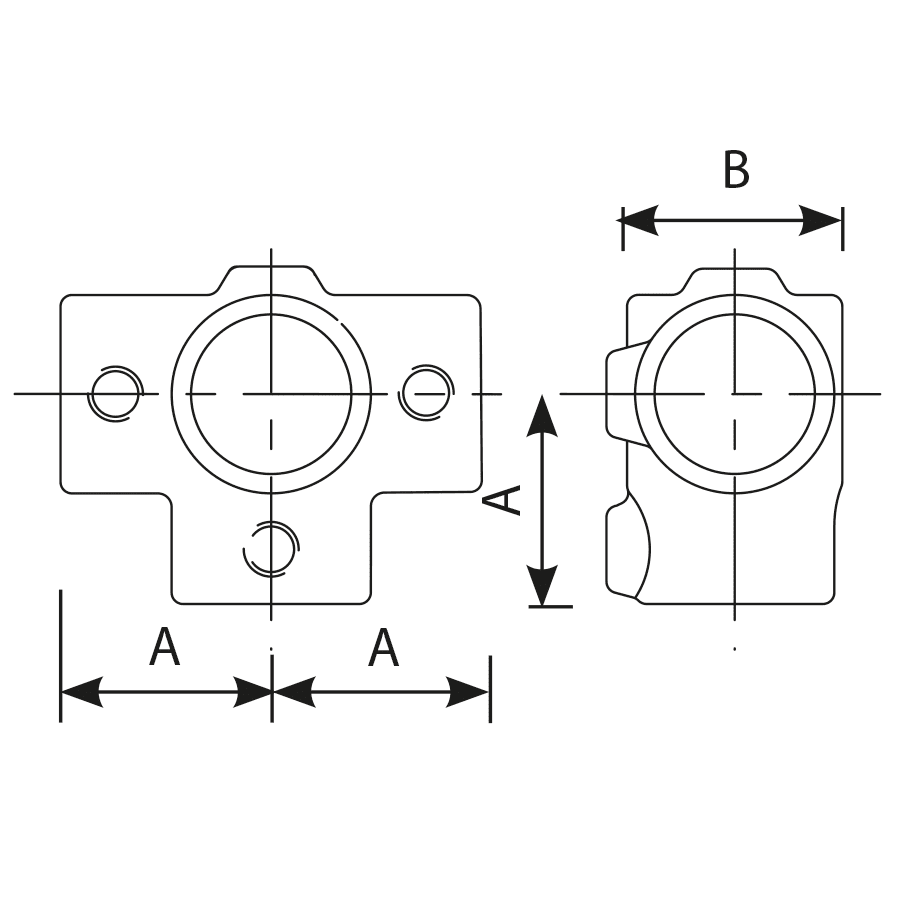

| # Tube Size A B kg |
| G2026.9 40 38 0.32 |
| G2533.7 48 45 0.55 |
| G3242.4 60 54 0.83 |
| G4048.3 66 60 0.84 |
| G5060.3 86 71 1.48 |
