Description

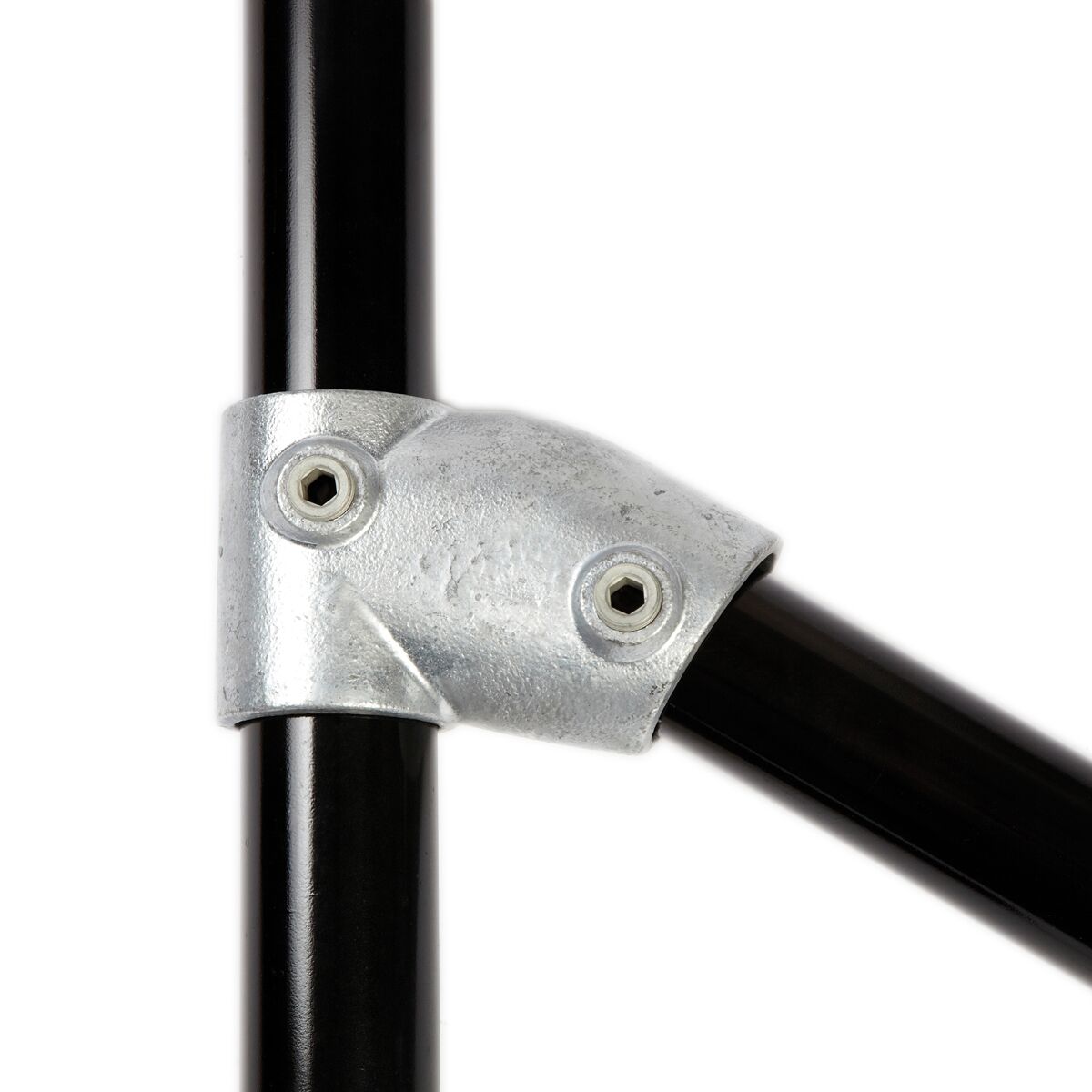

The C229 Single Socket Tee is an adjustable short tee for rake angles of 11° to 30°. It is used for the top rail of a handrail on shallow stairs and ramps, and for any tee joint that needs an angle between 11° and 30°.
For 30° to 60° use the C29.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting
- Dimensions and weight: available on request from our technical team
Use with
C29 Adjustable Short Tee (30° to 60°), C58 Two Socket Cross (11° to 30°), C72A Acute Angle Elbow (11° to 30°)
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
