Description

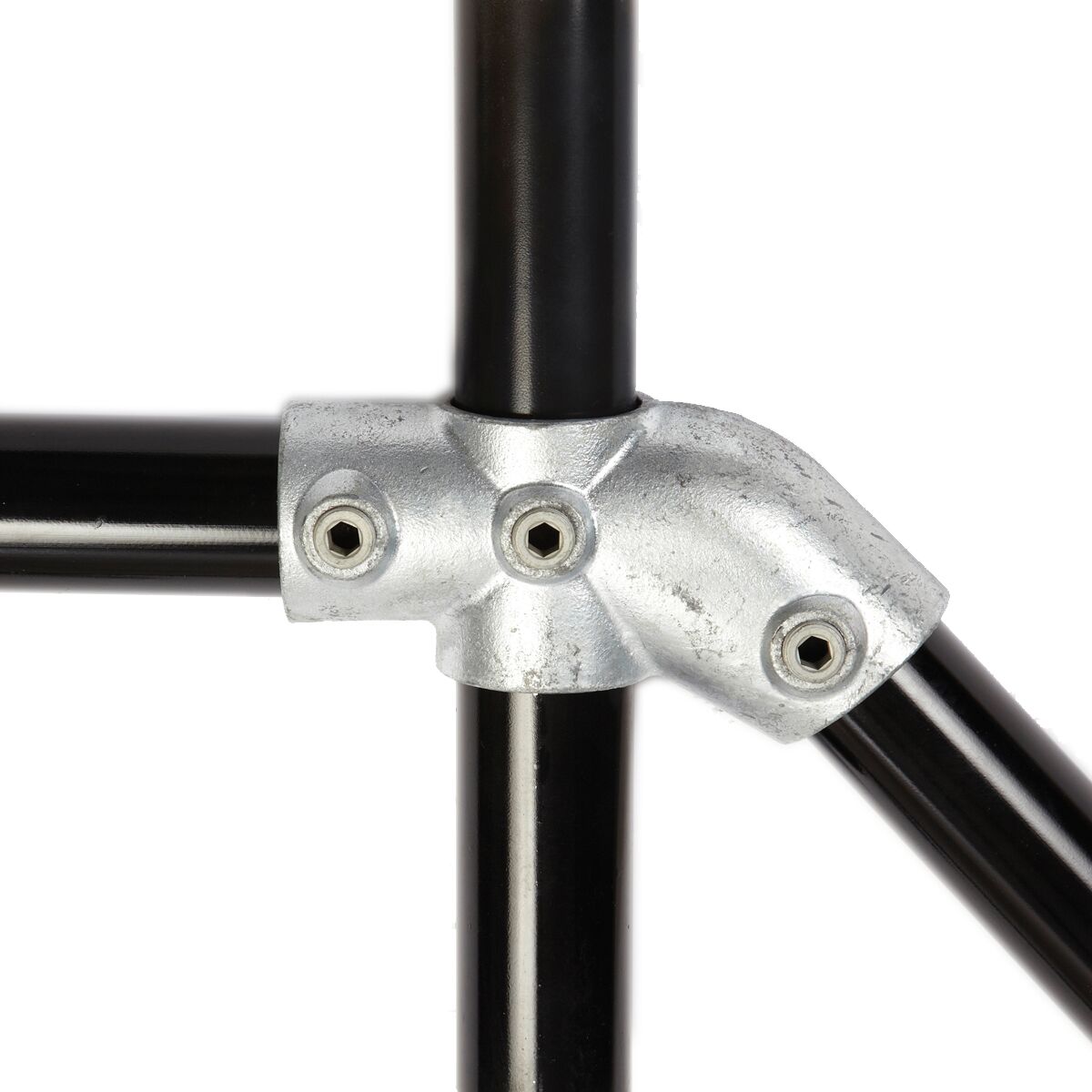

The C221 Level to Sloping Down / Up Cross forms a cross on a handrail where the mid rail changes from level to sloping down or level to sloping up the stairs, adjustable from 30° to 45°. The post passes through; one rail is level, the other pivots to the slope.
Use it at the top and bottom landings of a flight with the C041 and C042 tees on the top rail.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting

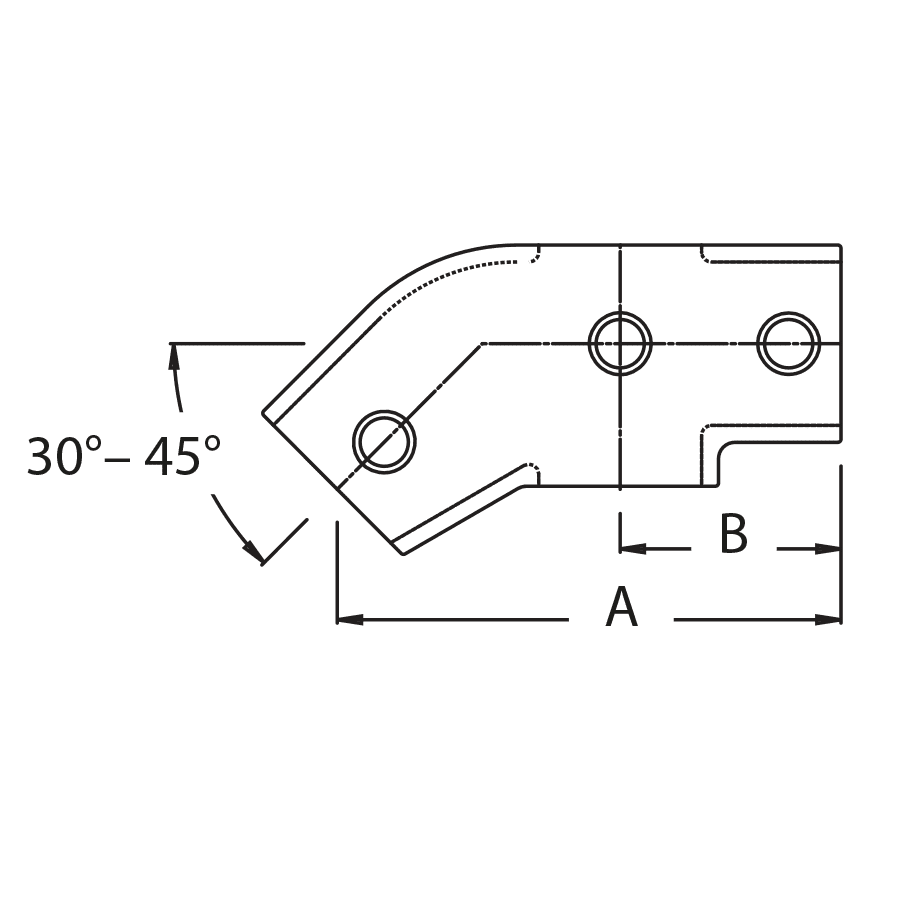

- Dimensions and weight: available on request from our technical team
Use with
C041 Level to Sloping Down Tee (30° to 45°), C042 Level to Sloping Up Tee (30° to 45°), C211LH Left hand Level to Sloping Down Side Outlet Tee (30° to 45°)
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
