Description

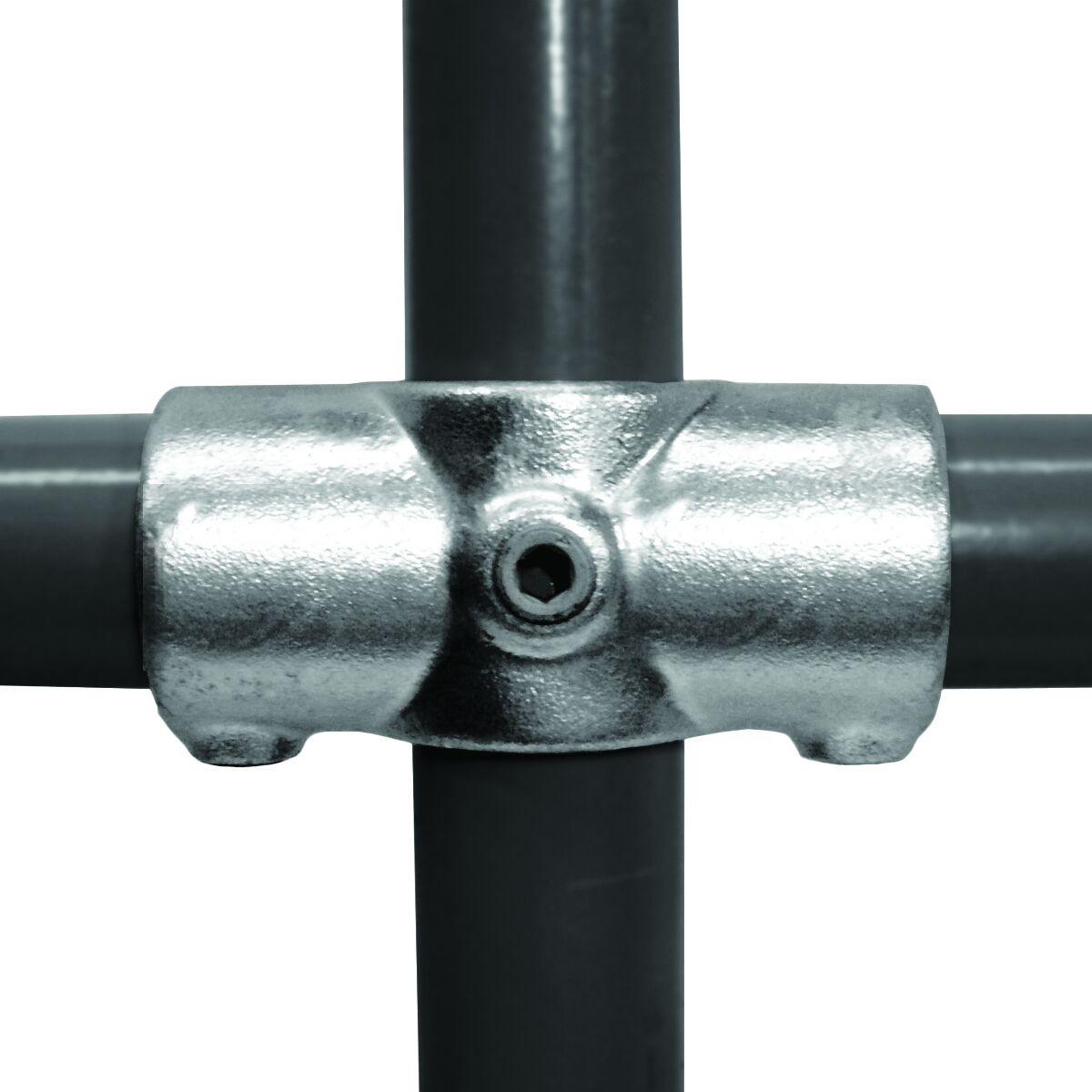

The C22 Two Socket Cross is the mid rail fitting on a standard run of guardrail. The upright passes straight through; the two mid rail tubes stop inside the fitting either side of it. The post stays continuous, which is the recommended arrangement for handrail.
Pair it with the C03 Short Tee at the top rail and the C12 base at the floor for a complete post assembly.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting

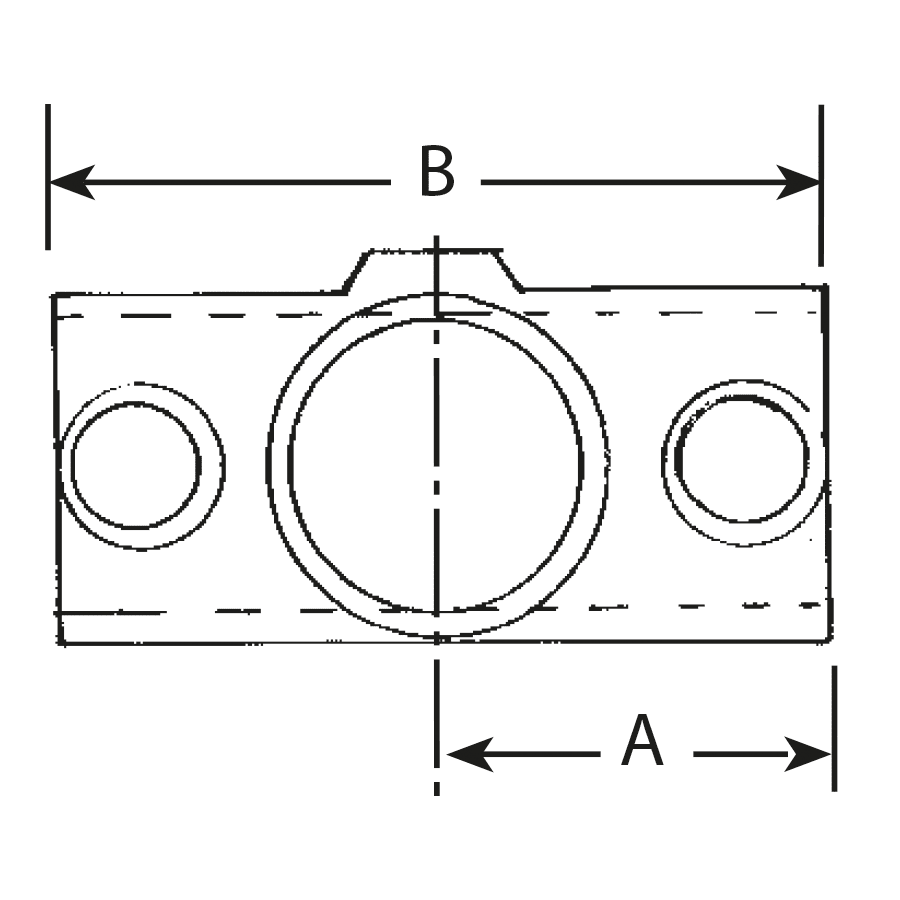

- Dimensions and weight: available on request from our technical team
Use with
C03 Short Tee, C12 Railing Base Flange, C23 45° Side Outlet Tee, C24 4 Way Cross + Central Tube
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
