Description

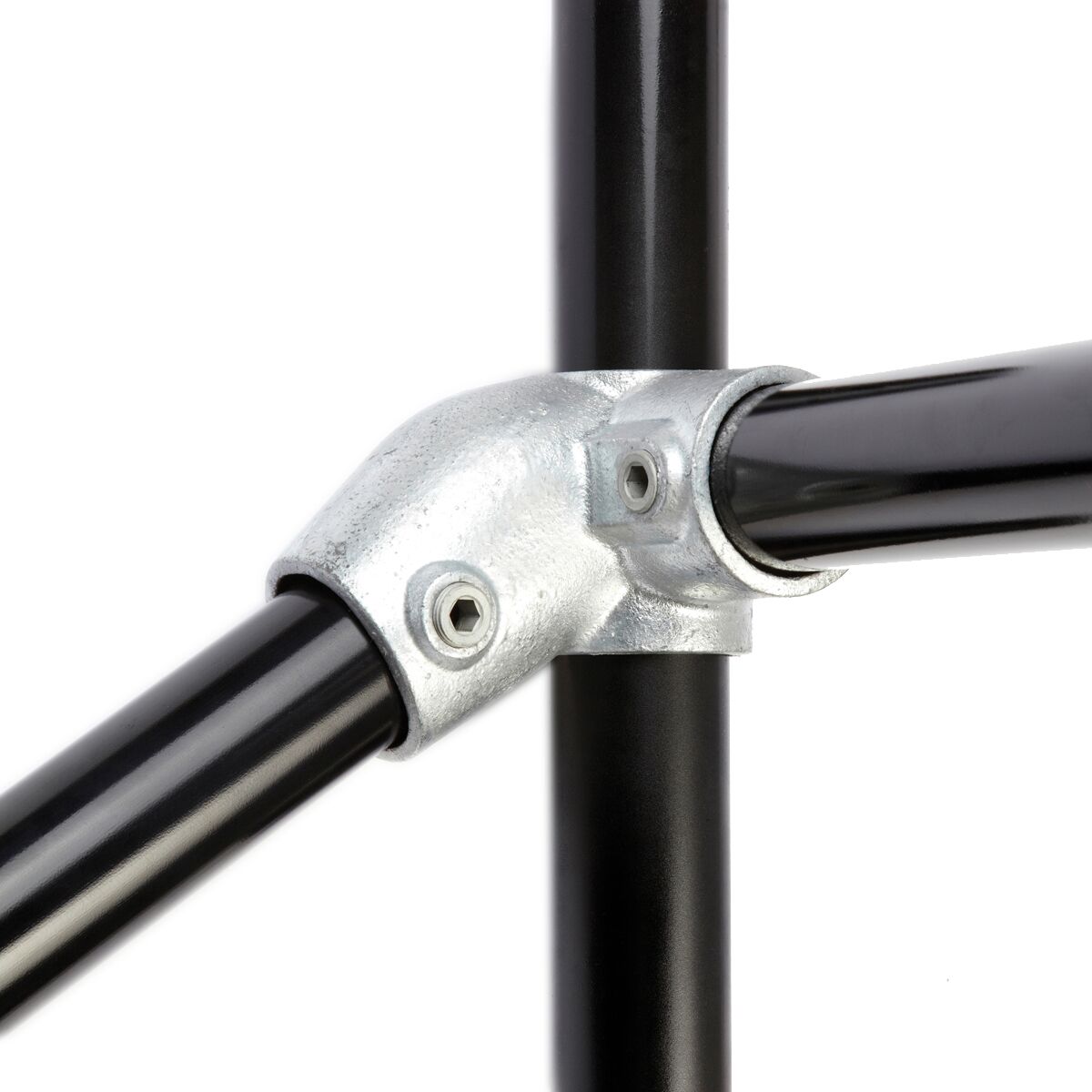

The C211LH Left Hand Level to Sloping Down Side Outlet Tee is the mid rail partner to the C201LH. It sits at the top of a flight on the left-hand handrail where the mid rail changes from level to sloping down, adjustable from 30° to 45°. The post passes through.
Its right-hand mirror is the C211RH.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting

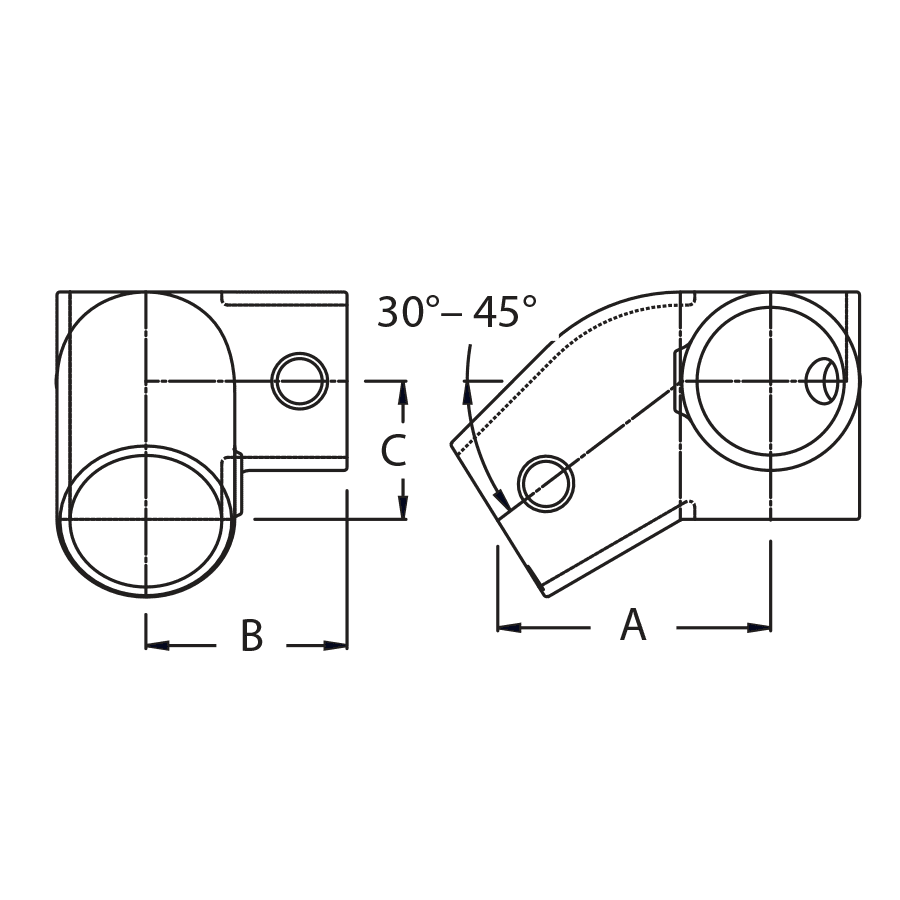

- Dimensions and weight: available on request from our technical team
Use with
C211RH Right hand Level to Sloping Down Side Outlet Tee (30° to 45°), C201LH Left hand Level to Sloping Down Side Outlet Elbow (30° to 45°), C221 Level to Sloping Down / Up Cross (30° to 45°)
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
