Description

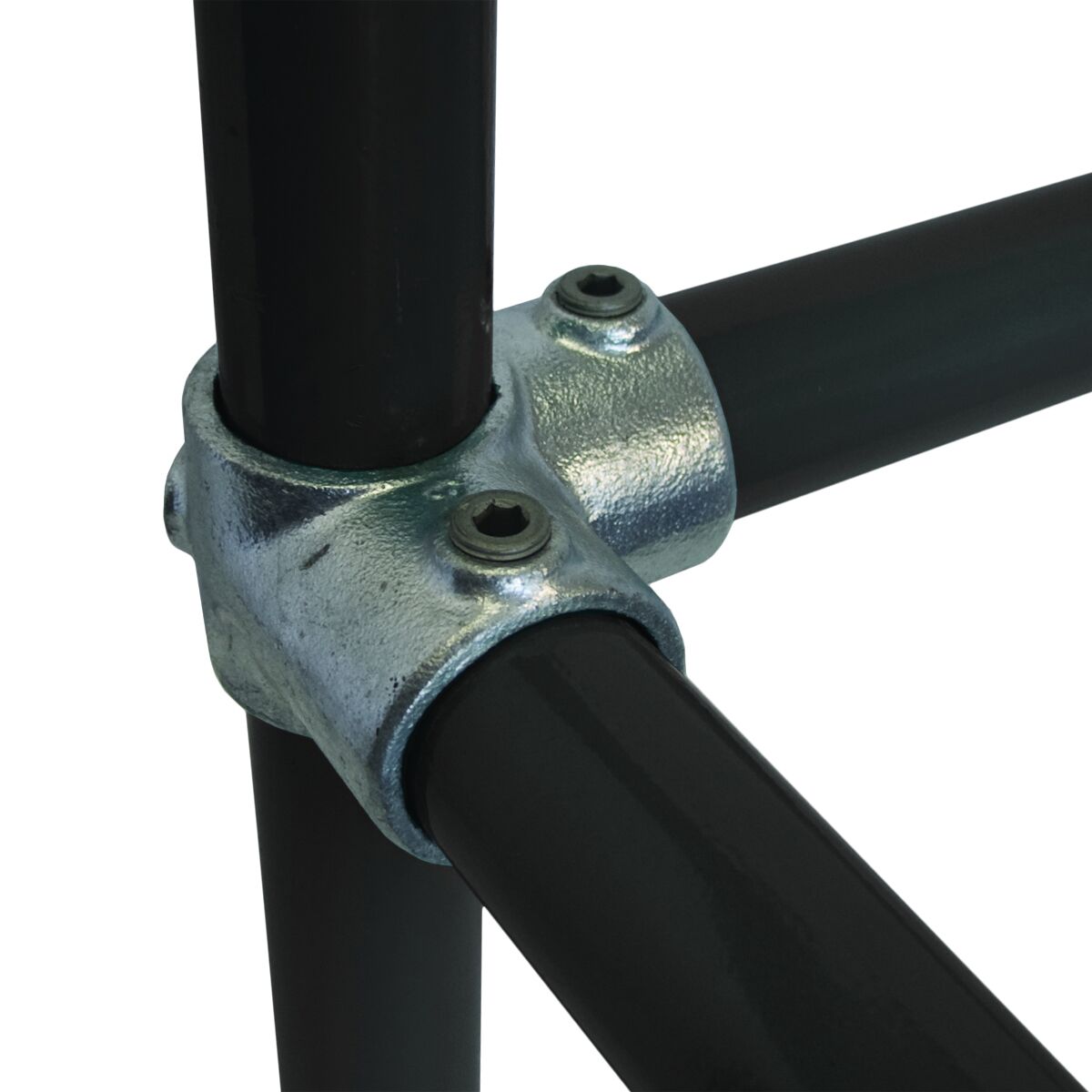

The C21 Corner complete with Through Tube makes a 90° corner on the intermediate rail of a guardrail or frame. The upright passes straight through the fitting and the two rails stop inside it, so the post stays continuous from base to top rail.
Use the C20 3 Way Elbow for the matching top rail corner.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting

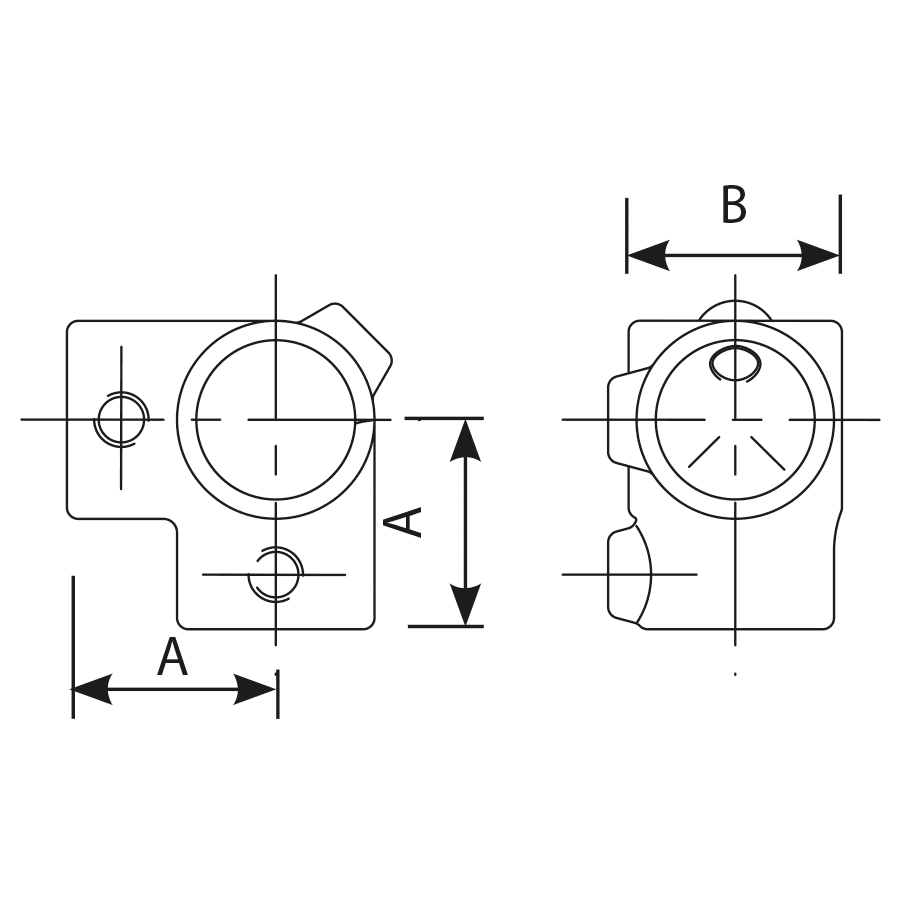

- Dimensions and weight: available on request from our technical team
Use with
C20 3 Way 90° Elbow, C22 Two Socket Cross, C03 Short Tee
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
