Description

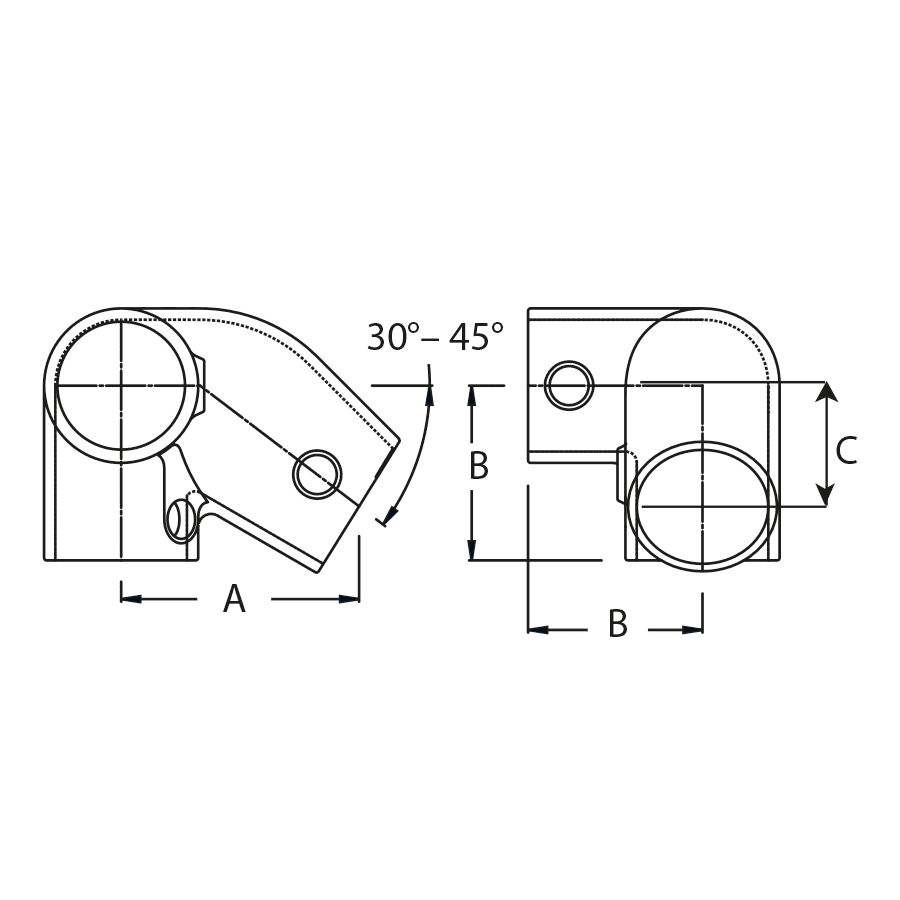

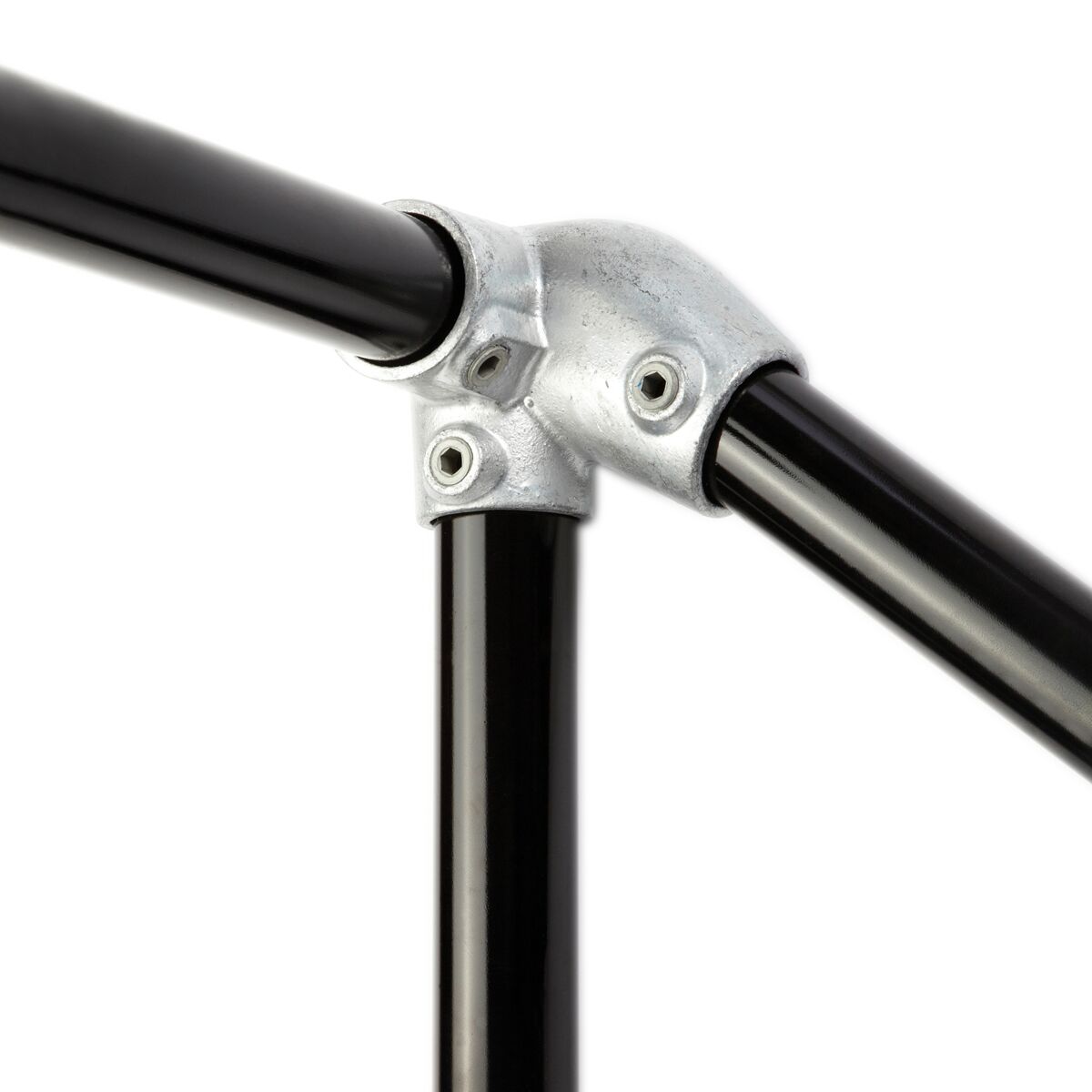

The C201RH Right Hand Level to Sloping Down Side Outlet Elbow sits at the top of a flight on the right-hand handrail where the top rail changes from level to sloping down the stairs, adjustable from 30° to 45°.
Its left-hand mirror is the C201LH. For the mid rail use the C211RH.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting
- Dimensions and weight: available on request from our technical team
Use with
C201LH Left hand Level to Sloping Down Side Outlet Elbow (30° to 45°), C211RH Right hand Level to Sloping Down Side Outlet Tee (30° to 45°), C041 Level to Sloping Down Tee (30° to 45°)
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
