Description

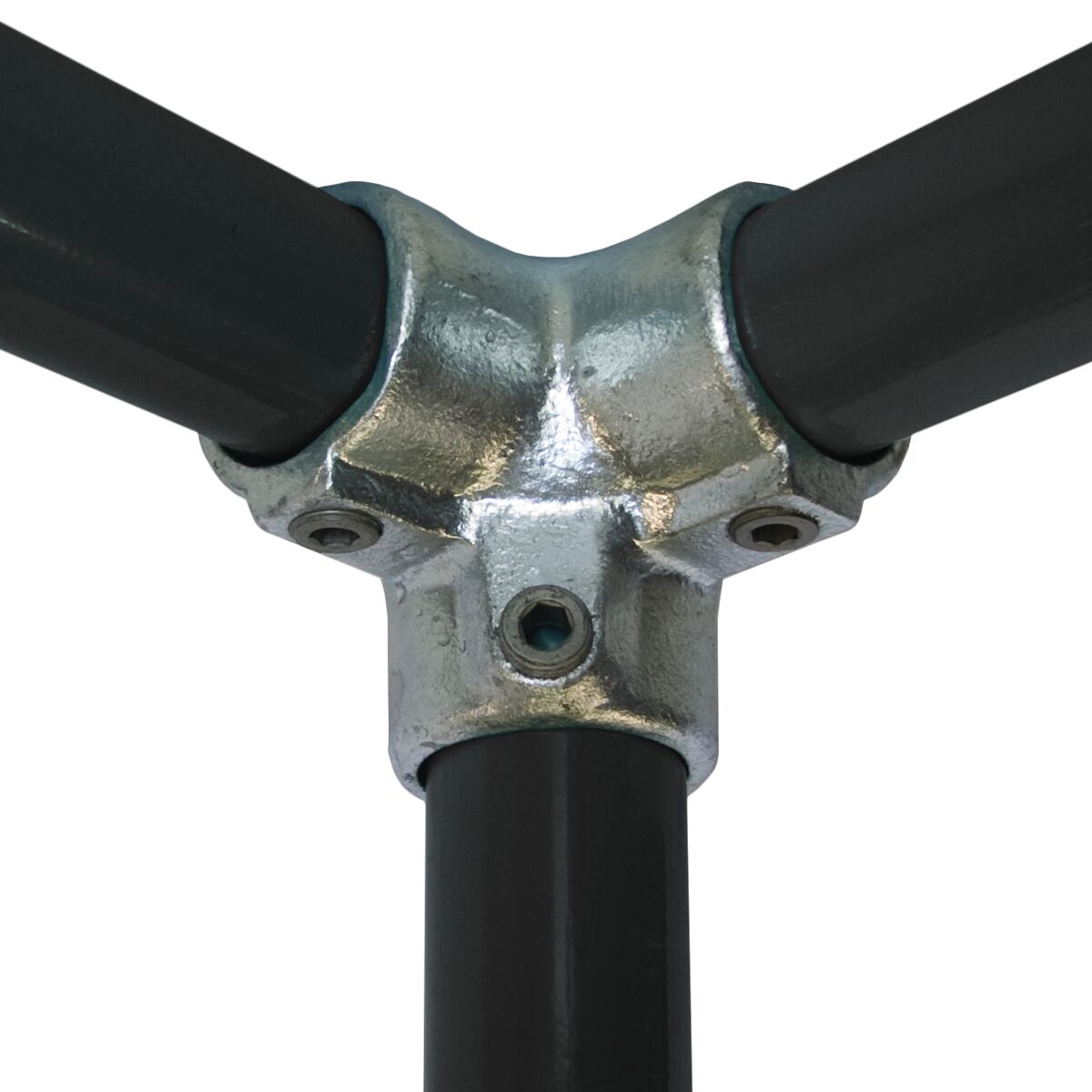

The C20 3 Way 90° Elbow joins three tubes at a corner, all at right angles and all stopping inside the fitting. It gives a clean, closed corner on the top rail of a guardrail or the top of a frame where a post meets two rails.
For the same corner on an intermediate rail, where the post has to pass through, use the C21 Corner with Through Tube.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting

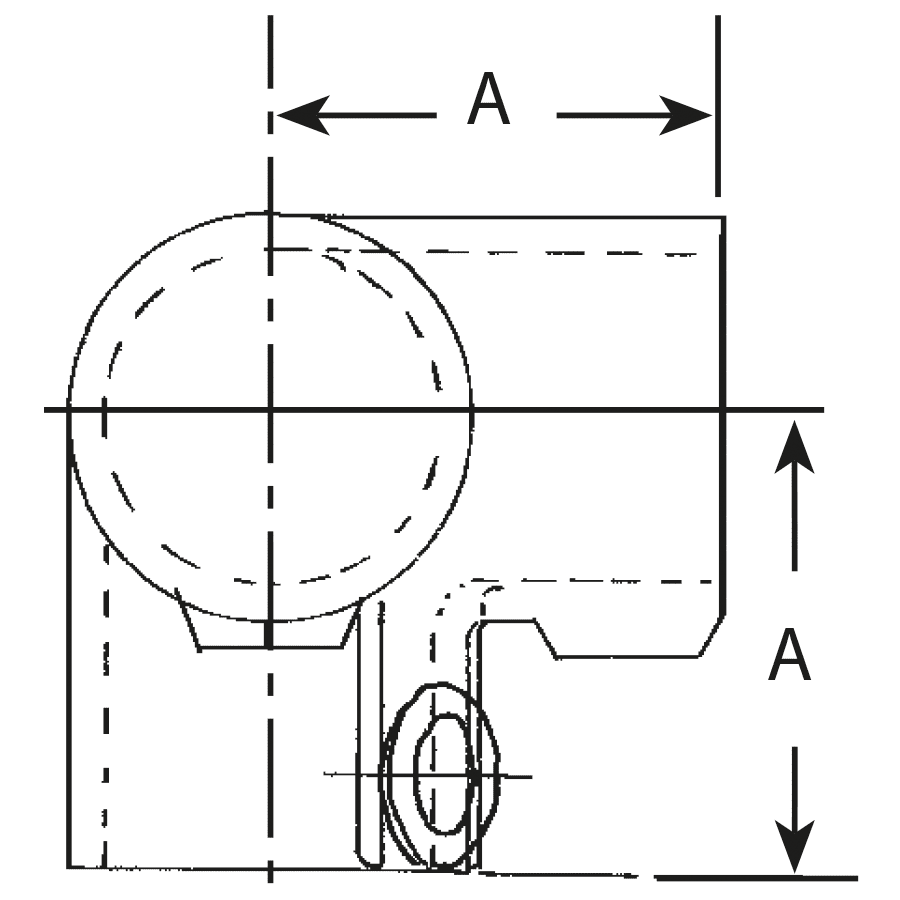

- Dimensions and weight: available on request from our technical team
Use with
C21 Corner c/w Through Tube, C02 90° Elbow, C22 Two Socket Cross
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
