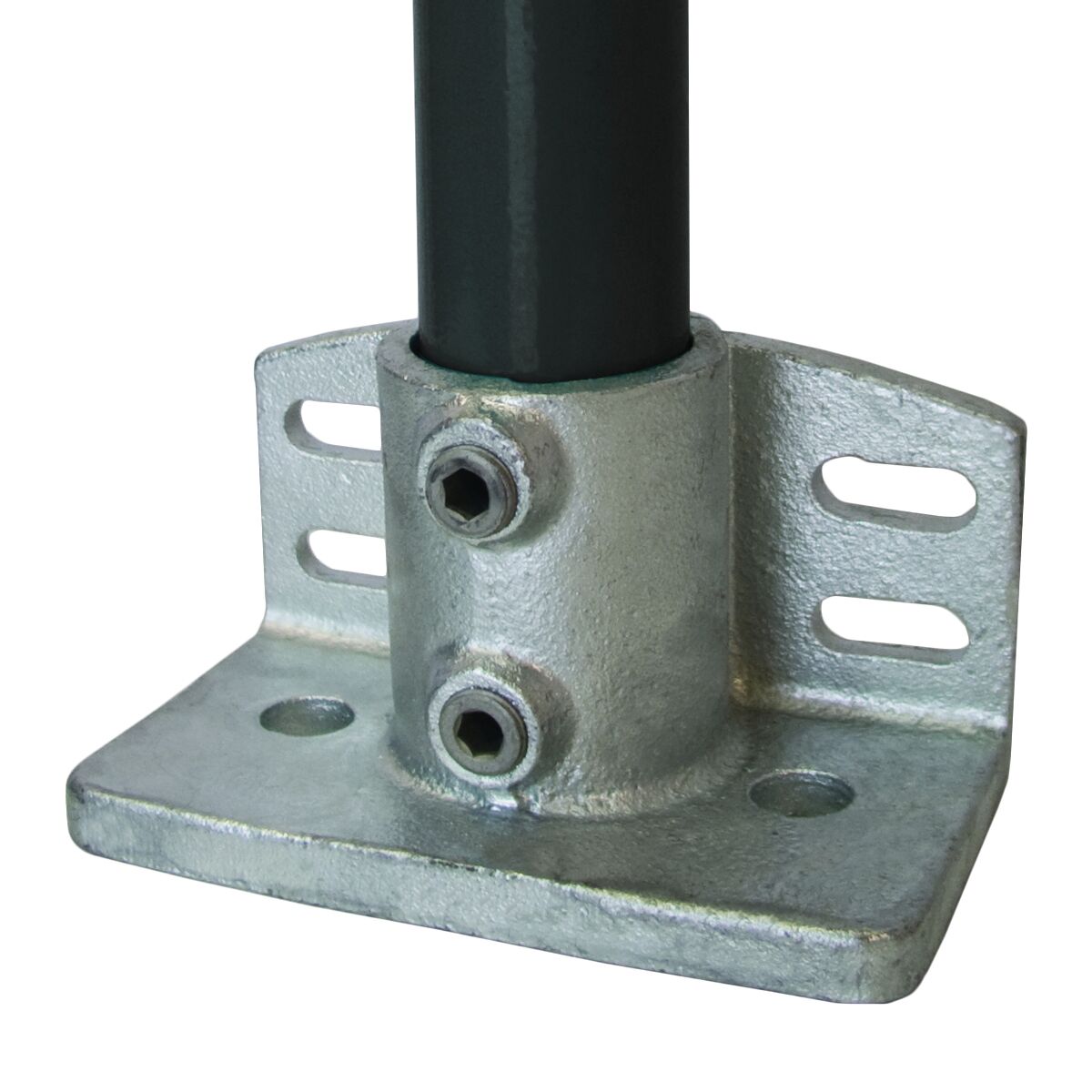

C18 Base Flange with Integrated Toeboard

POA

The Base Flange with Integrated Toeboard is ideal for guardrailing and balustrading applications where the addition of a toeboard is required. The side plates have slotted holes to allow for a degree of sideways movement for ease of installation. It is recommended that this fitting be used in accordance with FastClamp maximum post centre dimensions, see table 3 on our Technical Data Page.

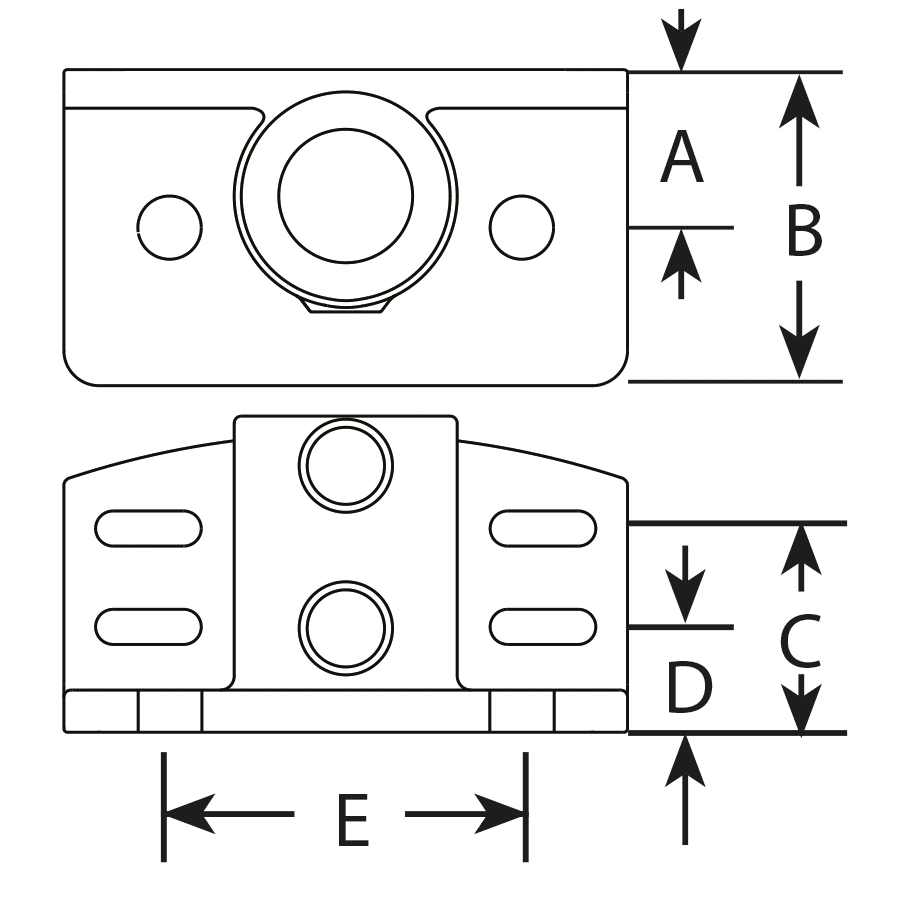

# Tube Size A B C D E Ø kg
G3242.4 45 90 58 30 100 18 2.14
G4048.3 45 90 58 30 100 18 2.28
View Size Chart...
Clear selection
SKU: C18 Categories: ,

Description

The Base Flange with Integrated Toeboard is ideal for guardrailing and balustrading applications where the addition of a toeboard is required. The side plates have slotted holes to allow for a degree of sideways movement for ease of installation. It is recommended that this fitting be used in accordance with FastClamp maximum post centre dimensions, see table 3 on our Technical Data Page.

Additional information

Size

G32, G40
