Description

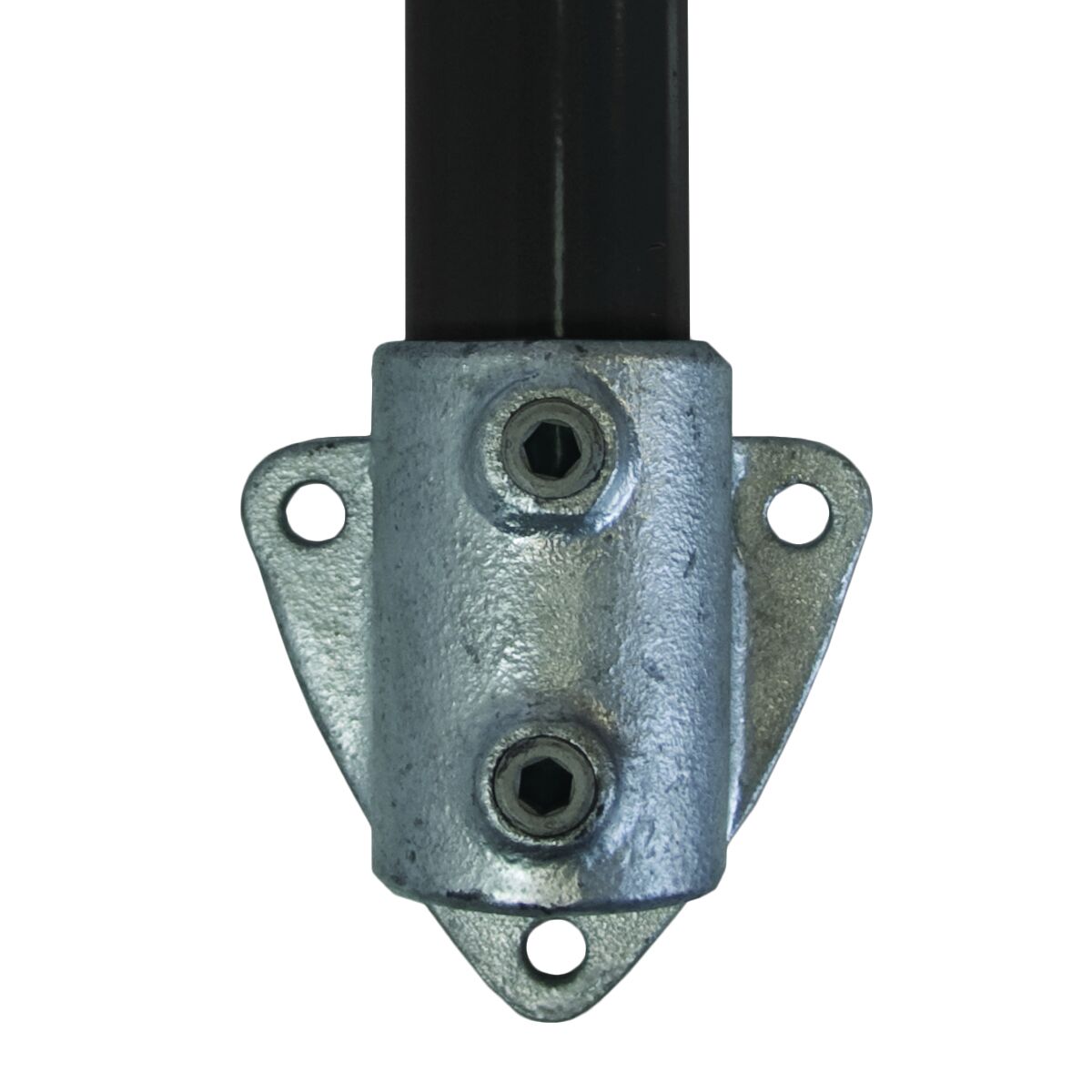

The C15 Side Palm Fixing is a compact side-mounted post base: a small palm plate with a socket for the upright. It suits stair stringers, steel edges and any position where the fixing has to be on the side of the structure rather than on top.
It is used at post centres from the FastClamp technical data page. For larger plates and more fixing holes see the C13 and C14 side supports.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting

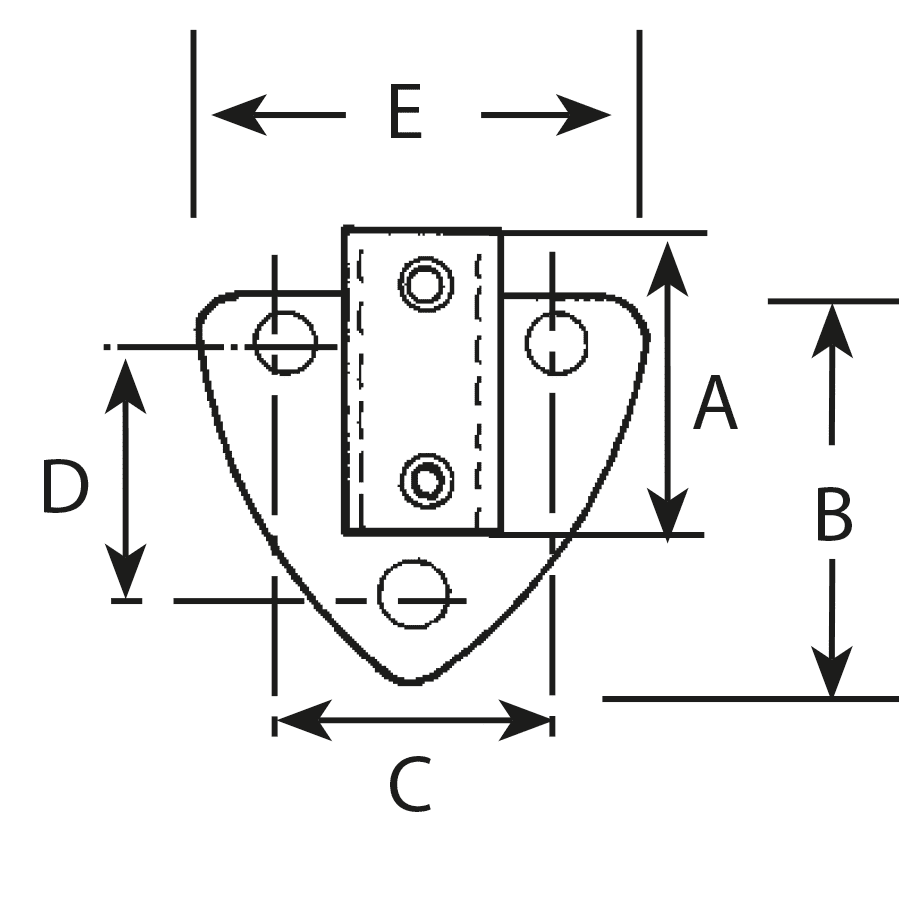

- Dimensions and weight: available on request from our technical team
Use with
C13 Railing Verticle Side Support, C14 Railing Horizontal Side Support, C12 Railing Base Flange
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
