Description
The C14 Railing Horizontal Side Support fixes a post to a horizontal face at the side of a walkway, such as the top of a kerb or the flange of a beam, where a standard base flange will not fit. The socket is offset so the upright rises clear of the fixing.
Use post centres from the FastClamp technical data page. Its vertical-face partner is the C13.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting

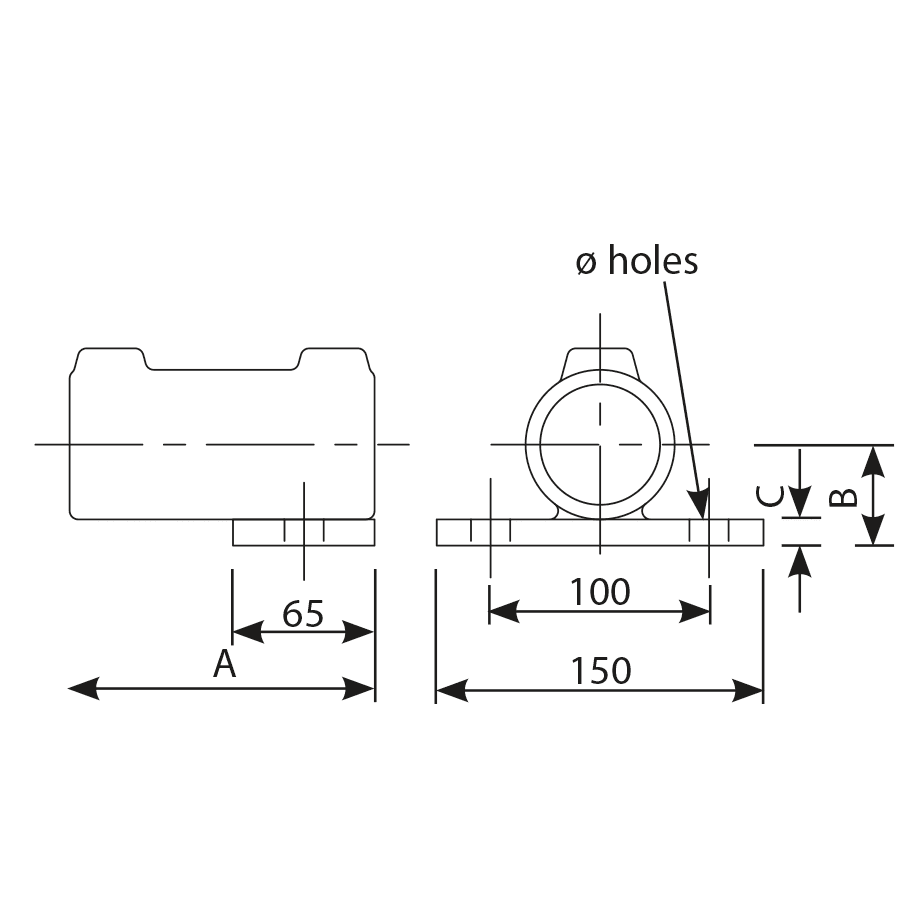

- Dimensions and weight: available on request from our technical team
Use with
C13 Railing Verticle Side Support, C15 Side Palm Fixing, C12 Railing Base Flange
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
