Description

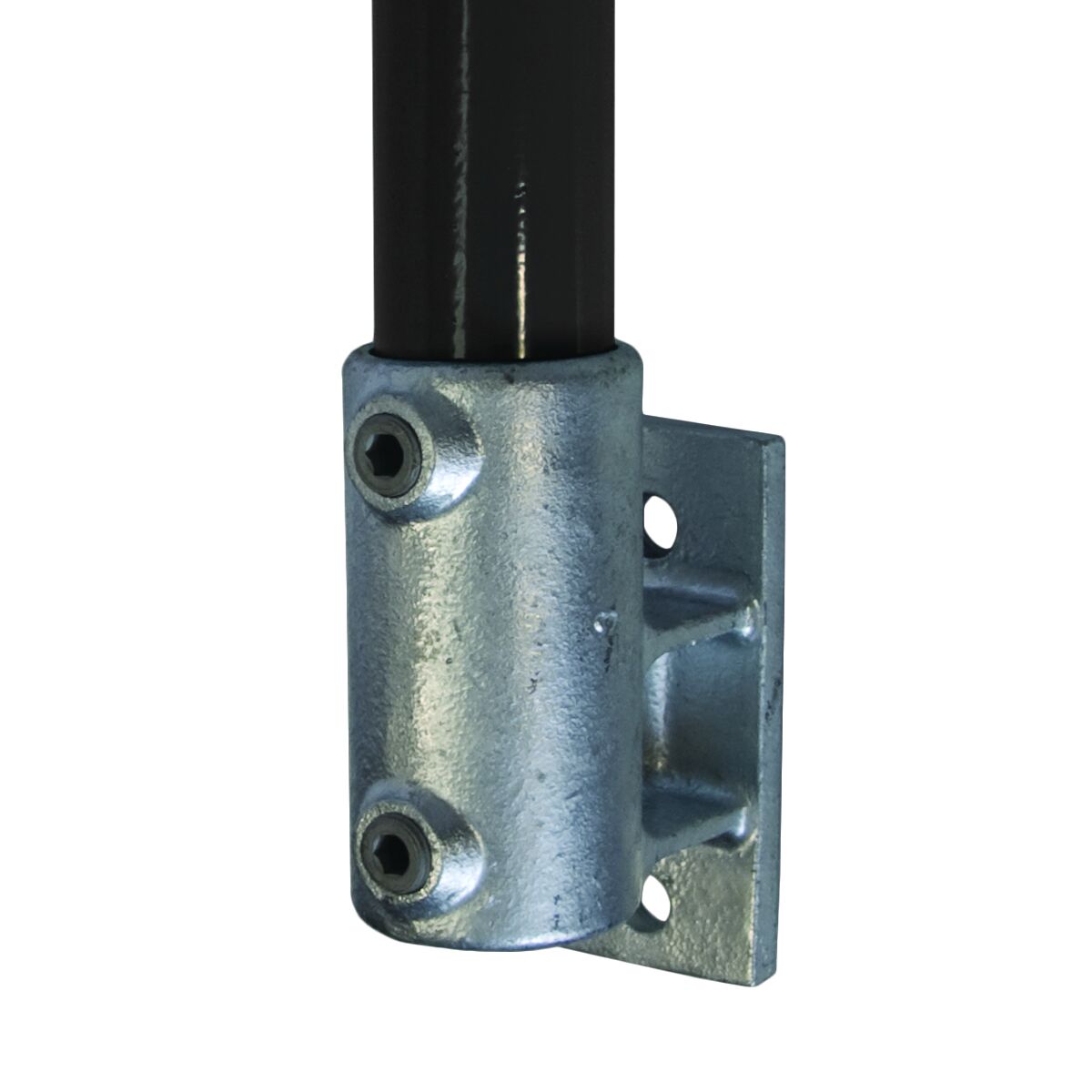

The C13 Railing Vertical Side Support fixes a post to the vertical face of a beam, kerb, mezzanine edge or wall where there is no floor to bolt to. The plate sits flat against the face and the post socket stands vertical.
Use it on mezzanine edges and loading platforms. Use post centres from the FastClamp technical data page and follow the same loading logic as the C12 base.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting
- Dimensions and weight: available on request from our technical team
Use with
C14 Railing Horizontal Side Support, C15 Side Palm Fixing, C12 Railing Base Flange
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
