Description
The Railing Base is designed to provide a base for railings and other structures. It is recommended that this fitting be used in accordance with FastClamp maximum post centre dimensions, see table 3 on our FastClamp Technical Data page.

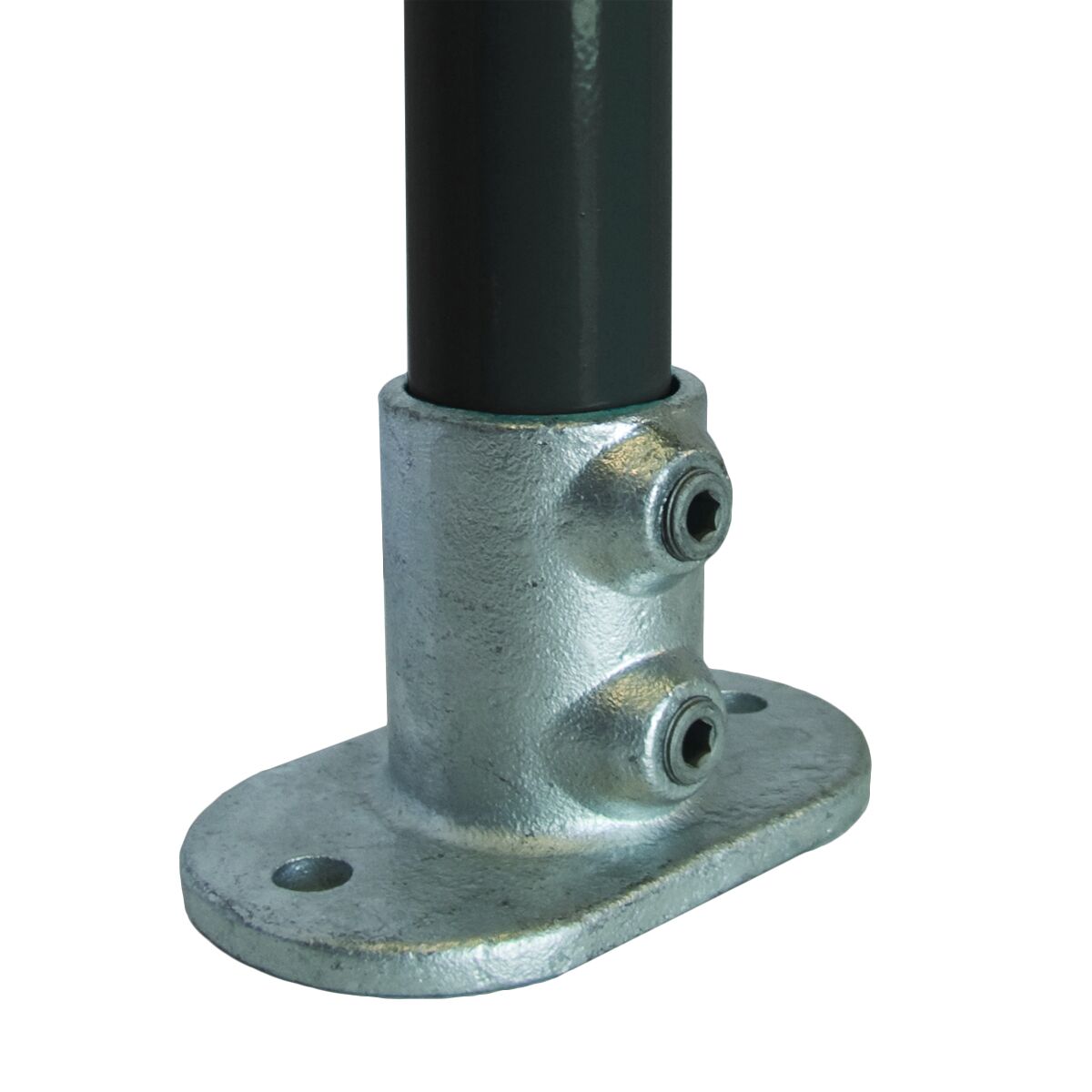

C12 Railing Base Flange
Part code: C12
The Railing Base is designed to provide a base for railings and other structures. It is recommended that this fitting be used in accordance with FastClamp maximum post centre dimensions, see table 3 on our FastClamp Technical Data page.

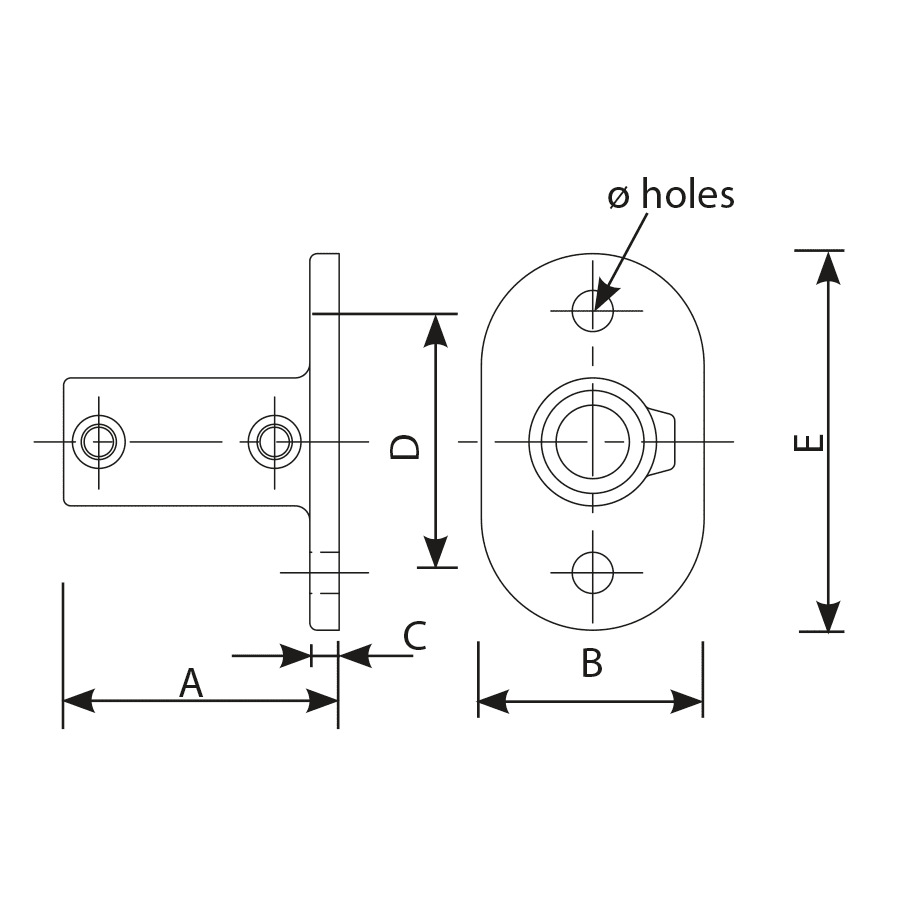

| # Tube Size A B C D E Ø kg |
| G2026.9 76 65 8 76 114 11 0.60 |
| G2533.7 89 76 9 89 128 14 0.91 |
| G3242.4 89 80 10 102 140 14 1.03 |
| G4048.3 89 89 10 114 152 14 1.24 |
| G5060.3 128 88 9 127 165 18 1.89 |
