Description
The Wall Flange is designed to provide a positional wall or base fixing. It is not recommended to use this fitting as a structural railing base.

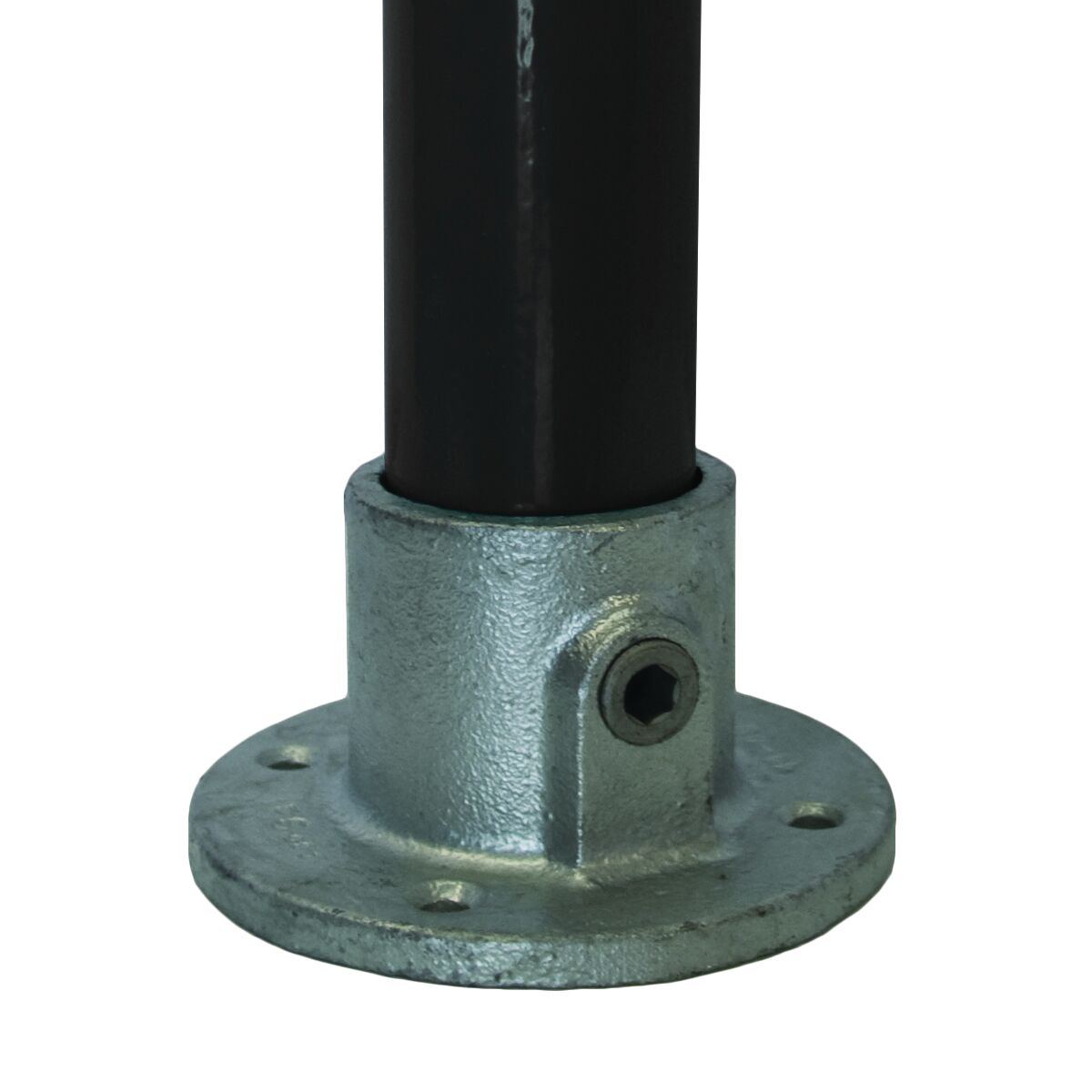

C11 Wall Flange
Part code: C11
The Wall Flange is designed to provide a positional wall or base fixing. It is not recommended to use this fitting as a structural railing base.

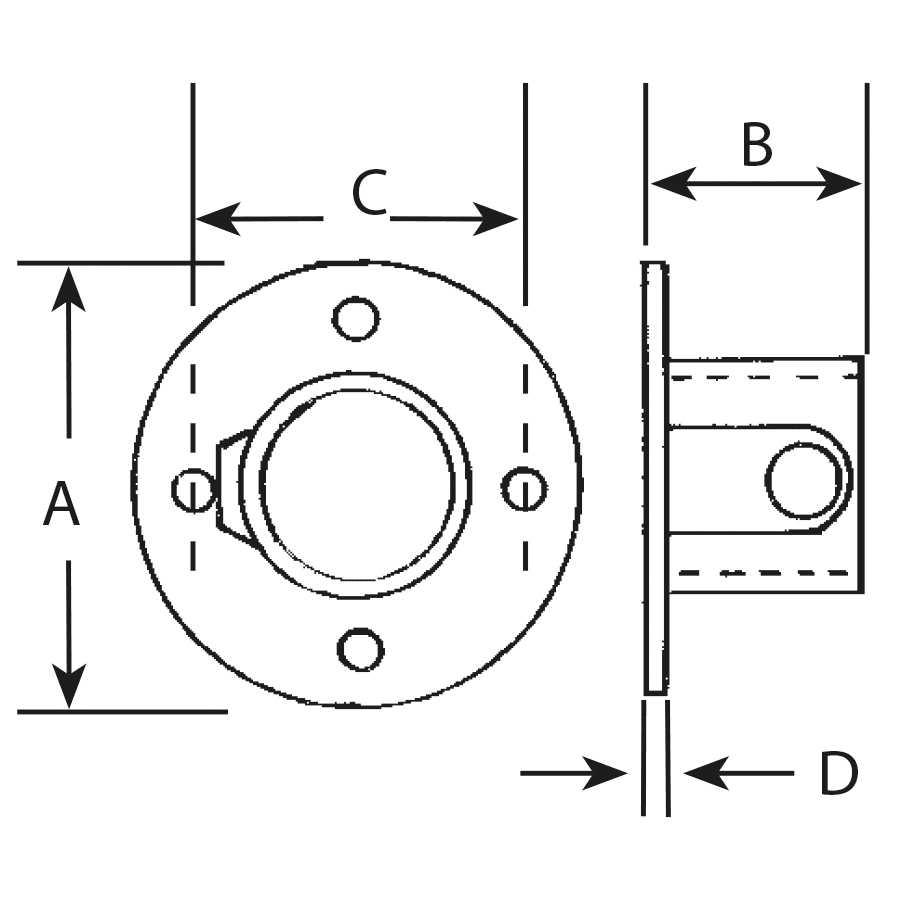

| # Tube Size A B C D Ø kg |
| G2026.9 86 42 57 4 9 0.35 |
| G2533.7 89 45 64 6 9 0.39 |
| G3242.4 102 50 76 6 9 0.50 |
| G4048.3 114 57 89 6 9 0.65 |
| G5060.3 127 64 95 6 9 1.10 |
