Description

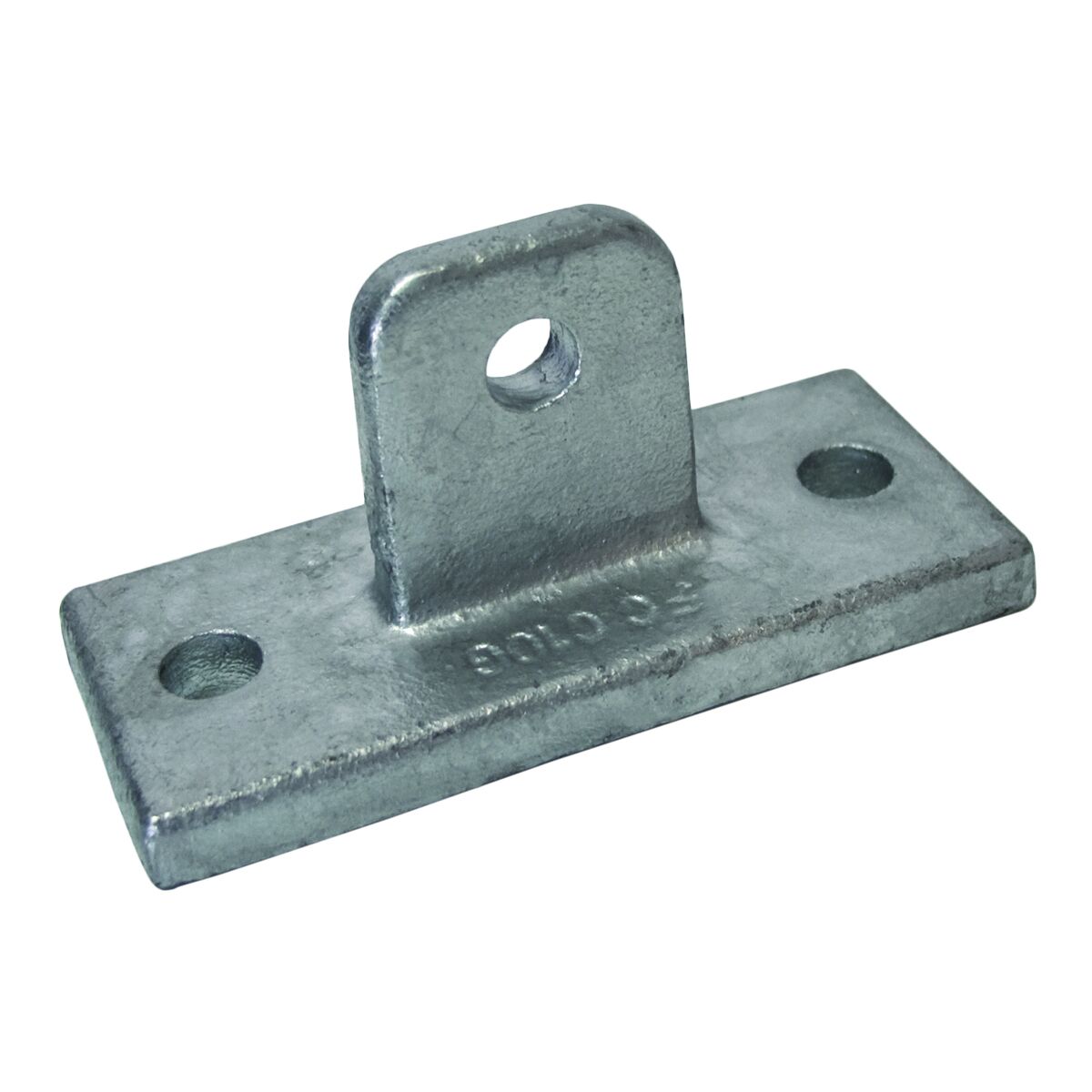

The C10G Swivel Base is a floor or wall plate with a single male swivel socket. On its own it is a positional fixing. Combined with a C36 Female Swivel it becomes the C46 Base Swivel Combination, an angled floor or wall mounting for braces and raked posts.
It does not give enough rigidity to act as a railing base on its own. For a structural post base use the C12 Railing Base Flange.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting

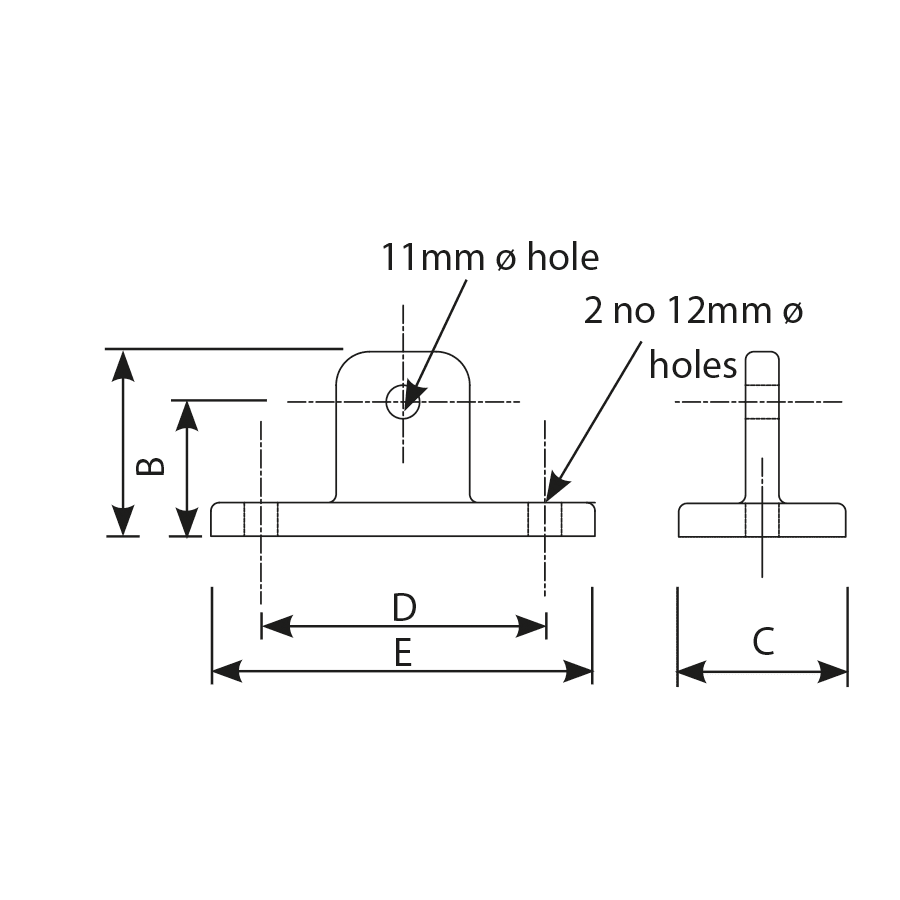

- Dimensions and weight: available on request from our technical team
Note: Not a structural railing base without additional support.
Use with
C36F Female Swivel, C46 Base Swivel Combination, C12 Railing Base Flange
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
