Description

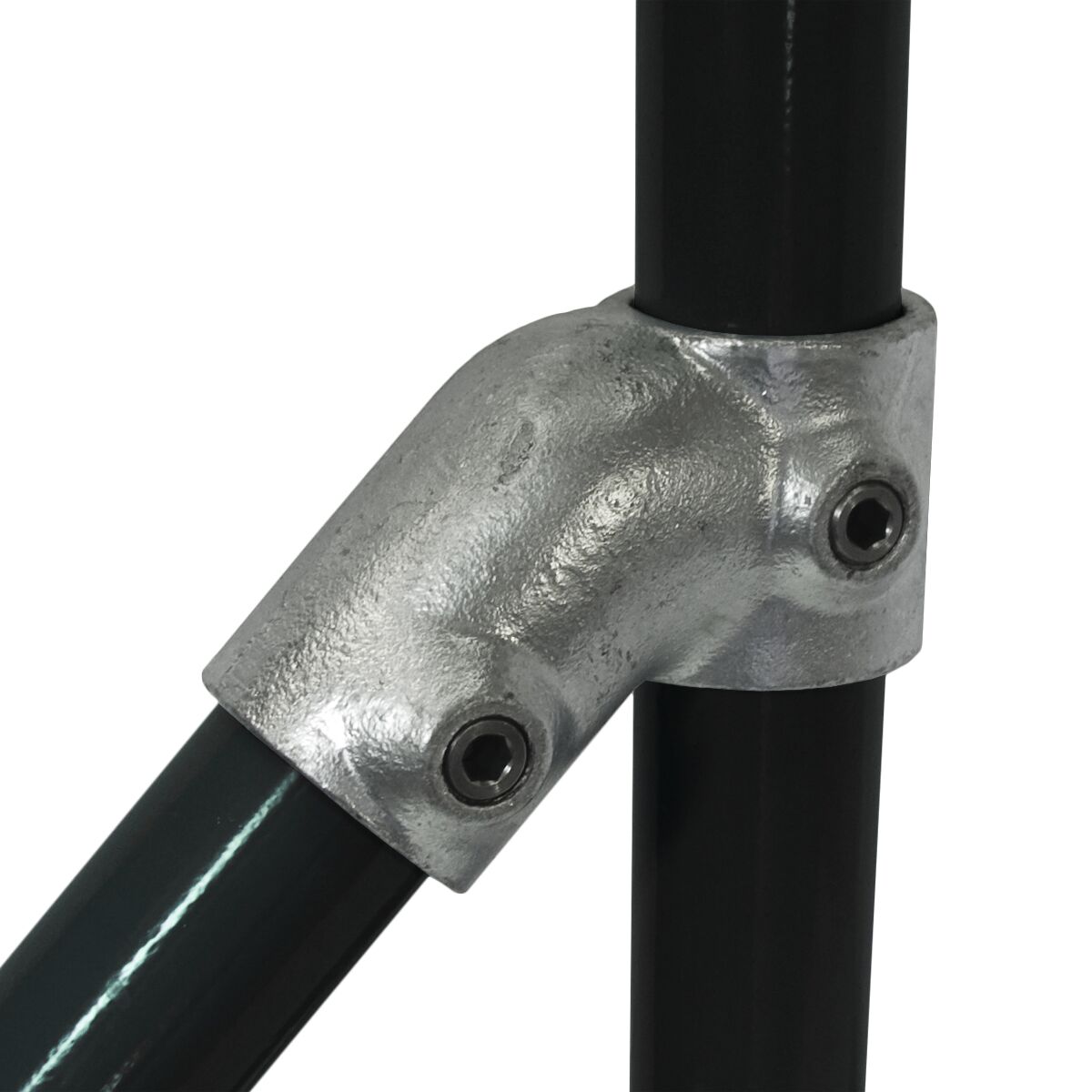

The C07 45° Tee joins a brace to a through tube at 45°. It is a bracing and strut component: use it to stiffen a frame, triangulate a rack or add a diagonal to a long run of guardrail.
The through tube passes the fitting, the brace stops inside it. For adjustable angles use the C45 Single Swivel Combination.
Specification
- Sizes: 20, 25, 32, 40 and 50, to suit tube of 26.9mm, 33.7mm, 42.4mm, 48.3mm and 60.3mm outside diameter
- Material: malleable cast iron
- Finish: hot dip galvanised as standard; powder coating to any RAL colour on request
- Assembly: grub screw and Allen key; no welding, threading or bolting

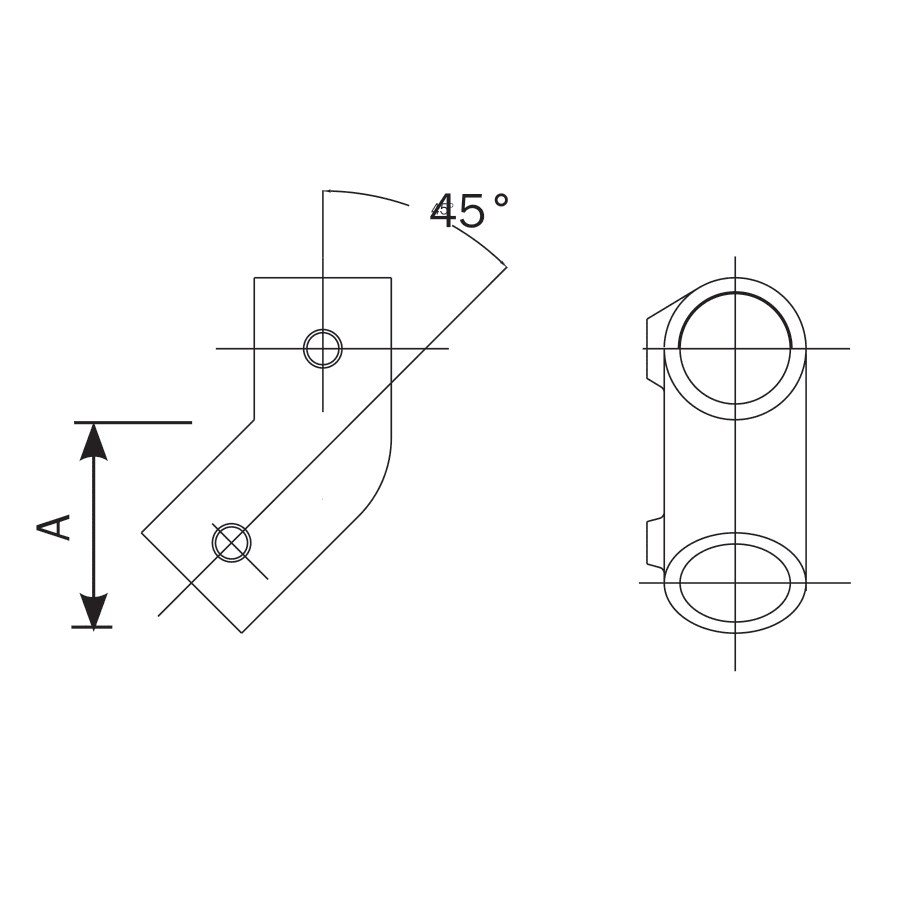

- Dimensions and weight: available on request from our technical team
Use with
C45 Single Swivel Combination, C03 Short Tee, C22 Two Socket Cross
Specify the fitting code and the size to match your tube. Order through your FastClamp distributor, or contact our technical team for a fitting list. See the full range of key clamp fittings.
